R3V36A, Aruba AP-503H Access Point, 5GHz/2.4GHz/Max Data Rate
R3V36A, Aruba AP-503H Access Point, 5GHz/2.4GHz/Max Data Rate
R3V36A, Aruba AP-503H Access Point, 5GHz/2.4GHz/Max Data Rate
R3V36A, Aruba AP-503H Access Point, 5GHz/2.4GHz/Max Data Rate
R3V36A, Aruba AP-503H Access Point, 5GHz/2.4GHz/Max Data Rate
R3V36A, Aruba AP-503H Access Point, 5GHz/2.4GHz/Max Data Rate
Specifications
Brand Name :
Aruba
Model Number :
R3V36A
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
Optical Transceiver Module
Part Number :
R3V36A
Shipment :
DHL
Condition :
NewJW054A, Aruba AP-270 Series Mount Kit, Outdoor/Wall Mount/Bracket
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
R3V36A
Description

Aruba R3V36A Overview

The Aruba 500H Series Hospitality Access Points provide high-performance wireless and wired connectivity for hospitality organizations experiencing growing numbers of mobile, IoT, and mobility requirements.

Supported Devices

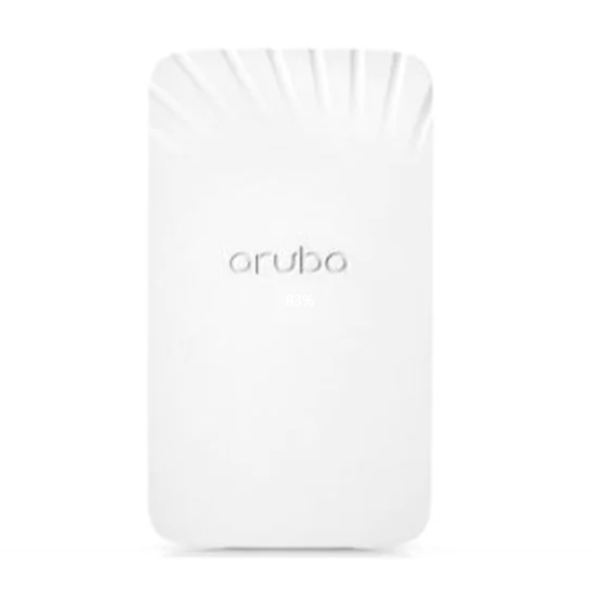

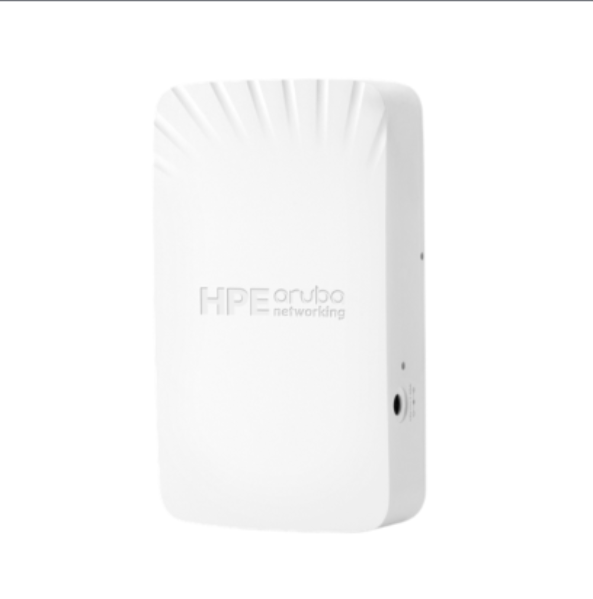

Figure 1 shows the front panel of R3V36A.

R3V36A, Aruba AP-503H Access Point, 5GHz/2.4GHz/Max Data Rate

R3V36A, Aruba AP-503H Access Point, 5GHz/2.4GHz/Max Data Rate

Quick Specs

Table 1 shows the Quick Specs.

Product Code

R3V36A

Ports

(1) 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX. (4) 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX

Input voltage

IEEE 802.3af Class 3 PoE, or direct DC power (via optional power supply)

Power Consumption

50W max

Radio coverage

5GHz radio: Two spatial stream (SU/MU) MIMO for up to 1.2Gbps wireless data rate (HE80) 2.4GHz radio: Two spatial stream (SU/MU) MIMO for up to 287Mbps wireless data rate (HE20)

Product Dimensions (metric)

150 x 86 x 47 mm



Compare to Similar Items

Table 2 shows the comparison of R3V36A.

Module

R3V36A

R7J27A

Ports

(1) 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX. (4) 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX

E0, E1: Two Ethernet wired network ports (RJ-45)
Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
2.5Gbps speed complies with NBase-T and 802.3bz specifications
POE-PD: 48Vdc (nominal) 802.3af/at/bt POE (class 3 or higher)
802.3az Energy Efficient Ethernet (EEE)

Input voltage

IEEE 802.3af Class 3 PoE, or direct DC power (via optional power supply)

12 Vdc (+/- 5%) or 48 Vdc (nominal) POE

Power Consumption

50W max

23.8W worst case (POE powered), 20.7W worst case (DC). Excludes power needed to supply up to 5W to an attached USb device.

Radio coverage

5GHz radio: Two spatial stream (SU/MU) MIMO for up to 1.2Gbps wireless data rate (HE80) 2.4GHz radio: Two spatial stream (SU/MU) MIMO for up to 287Mbps wireless data rate (HE20)

Indoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2x2 MIMO

Product Dimensions (metric)

150 x 86 x 47 mm

220mm (W) x 220mm (D) x 50mm (H)


Aruba R3V36A Specification

R3V36A Specification

Ports

(1) 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX. (4) 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX

Mounting

Optional mounting kits: Using one of the (separate orderable) mount kits, the AP can be attached to a single or dual gang wall-box, directly to a wall, or desk mounted.

Input voltage;

IEEE 802.3af Class 3 PoE, or direct DC power (via optional power supply)

Power Consumption

50W max

Certifications

Wi-Fi Alliance Wi-Fi CERTIFIED™ a, b, g, n, ac Wi-Fi Alliance Wi-Fi CERTIFIED™ 6 (ax) Wi-Fi Alliance WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open ( OWE) Wi-Fi Alliance WMM, WMM-PS, Wi-Fi Vantage, Wi-Fi Agile Multiband Wi-Fi Alliance Passpoint (release 2) Ethernet Alliance (POE, PD device, class 6)

Regulatory

FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU IEC/EN 60950 EN 60601-1-1, EN60601-1-2 IEC/EN 62368-1

Wi-Fi antenna

Two integrated semi-directional antennas for 2x2 MIMO with peak single antenna gain of 5.2dBi in 2.4GHz and 5.4dBi in 5GHz. Built-in antennas are optimized for vertical wall or desk mounted orientation of the AP. Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 1.7dBi in 2.4GHz and 5.0dBi in 5GHz.

Radio coverage

5GHz radio: Two spatial stream (SU/MU) MIMO for up to 1.2Gbps wireless data rate (HE80) 2.4GHz radio: Two spatial stream (SU/MU) MIMO for up to 287Mbps wireless data rate (HE20)

Product Dimensions (metric)

150 x 86 x 47 mm
