Specifications
Brand Name :
Siemens
Model Number :
AC SERVO MOTOR
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
AC SERVO MOTOR
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
AC SERVO MOTOR
Description
Siemens AC SERVO MOTOR Overview

The Borunte B2 Series 400W 3-Phase AC Servo Motor is a high-performance, brushless motion control component engineered for precision-critical industrial applications—including CNC machining, automated assembly lines, packaging equipment, and robotic arms. Equipped with a 2500ppr incremental encoder, it delivers ±0.01° positioning accuracy, 1.27N·m of continuous torque (and 3.81N·m peak torque), and a 3000rpm rated speed (max 3600rpm) to support smooth, high-speed motion.

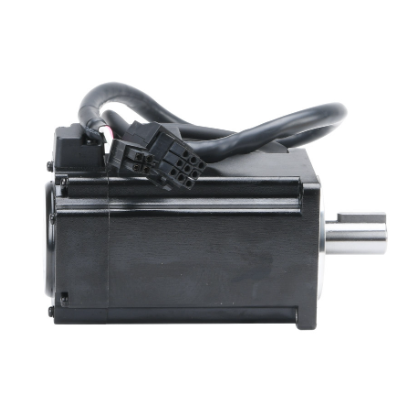

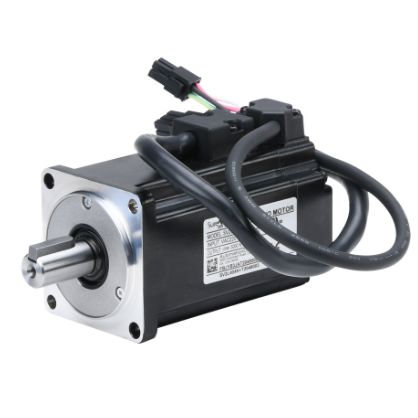

Figure 1 shows the front panel of AC SERVO MOTOR.

Borunte B2 Series 400W High-Precision 3-Phase AC Servo Motor with 2500ppr Incremental Encoder

Borunte B2 Series 400W High-Precision 3-Phase AC Servo Motor with 2500ppr Incremental Encoder















Quick Specs.

Table 1 shows the Quick Specs.

Parameter Value
Rated Power 400W
Rated Speed 3000rpm
Rated Torque 1.27N·m
Voltage 220V AC (3-phase)
Encoder Type Incremental (2500ppr)
Protection Class IP54





Detailed Specification
Category Specification
Electrical
Rated Power 400W
Rated Voltage 220V AC (3-phase, 50/60Hz)
Rated Current 2.7A
Peak Torque 3.81N·m (300% overload)
Mechanical
Rated Speed 3000rpm
Max Speed 3600rpm
Rated Torque 1.27N·m
Rotor Inertia 0.45×10⁻⁴ kg·m²
Shaft Diameter 14mm
Performance
Encoder Resolution 2500ppr (incremental)
Control Accuracy ±0.01°
Environmental
Protection Class IP54 (body)
Operating Temp 0°C ~ 40°C
Storage Temp -20°C ~ 60°C
