CS-BARPRO-K9 - video conferencing device - with Cisco Room Navigator-Table Stand
CS-BARPRO-K9 - video conferencing device - with Cisco Room Navigator-Table Stand
CS-BARPRO-K9 - video conferencing device - with Cisco Room Navigator-Table Stand
CS-BARPRO-K9 - video conferencing device - with Cisco Room Navigator-Table Stand
CS-BARPRO-K9 - video conferencing device - with Cisco Room Navigator-Table Stand
CS-BARPRO-K9 - video conferencing device - with Cisco Room Navigator-Table Stand
CS-BARPRO-K9 - video conferencing device - with Cisco Room Navigator-Table Stand
CS-BARPRO-K9 - video conferencing device - with Cisco Room Navigator-Table Stand
Specifications
Brand Name :
Cisco
Model Number :
CS-BARPRO-K9
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
Video Conferencing Device
Part Number :
CS-BARPRO-K9
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
CS-BARPRO-K9
Description


Cisco CS-BARPRO-K9 Overview

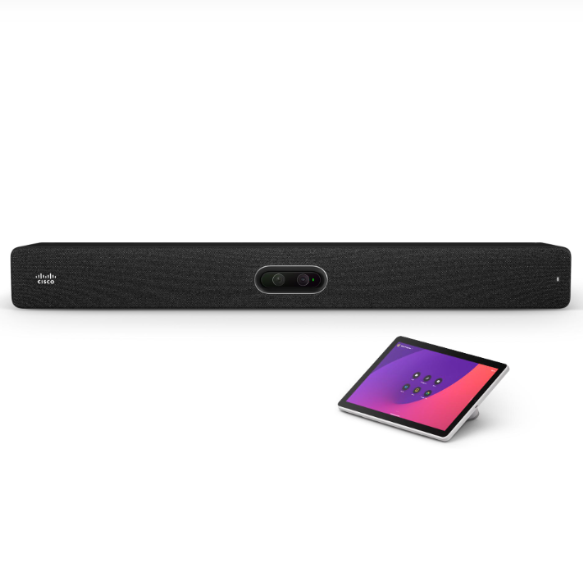

Cisco Webex Room Bar Pro (CS-BARPRO-K9) is an integrated, AI-enhanced video bar solution tailored for medium-sized meeting spaces. It features a dual 48MP camera system (112° wide-angle & 70° tele-lens) with motorized tilt (-2° to 20°), 5x digital zoom (10x with AI virtual lens), auto-framing, and speaker tracking. The 16-element beamforming microphone array and 3-channel loudspeaker system deliver spatial audio, AI noise removal, and full-band audio. It supports up to 3 HDMI outputs (4K@60fps), dual content inputs (HDMI & USB-C), Wi-Fi 6E, Bluetooth, and PoE. Bundled with Cisco Room Navigator for intuitive control, it runs on RoomOS 11.5.1.x or later, enabling native Webex, Microsoft Teams, Zoom, and Google Meet interoperability. Its compact design (37.8×4.3×3.5 in, 9.86 lbs) and consolidated mounting simplify deployment, while ultrasound presence detection and environmental sensors enhance smart room automation.

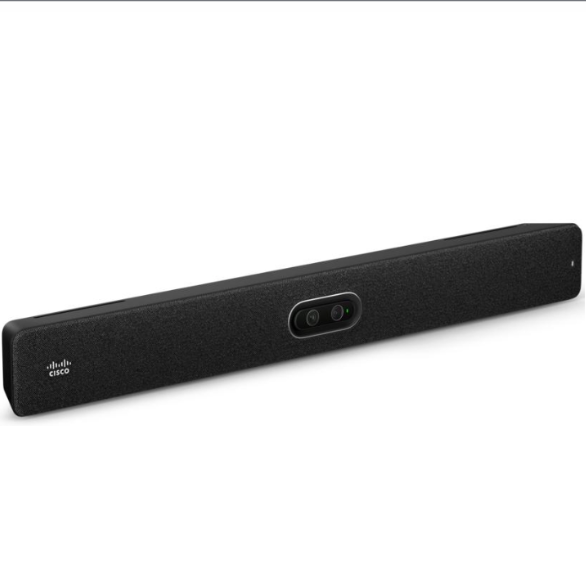

Figure 1 shows the front panel of CS-BARPRO-K9.

CS-BARPRO-K9 - video conferencing device - with Cisco Room Navigator-Table Stand

CS-BARPRO-K9 - video conferencing device - with Cisco Room Navigator-Table Stand








Cisco CS-BARPRO-K9 Specification




CS-BARPRO-K9
Category Details
General Information Manufacturer: Cisco Systems, Inc

MPN: CS-BARPRO-K9

Product Type: Video Conferencing Device

Color: First Light

Bundled Accessories: Room Navigator (Table Stand), Mounting Kit, Ethernet Cables (5m & 8m), HDMI Cable (1.5m), Power Cord
Camera System Dual 48MP image sensors (112° wide/70° tele)

Motorized tilt: -2° to 20°

Digital Zoom: 5x (10x with AI virtual lens)

Frame Rate: 30fps

Lens Aperture: f/2.8 (wide), f/1.85 (tele)

FoV: 112°(H)/94°(V) (wide), 70°(H)/55°(V) (tele)

Features: Auto-framing, Speaker Tracking, Auto Brightness/White Balance
Audio System 16-element Beamforming Microphone Array

3-channel Loudspeaker System (70Hz–22kHz, 97dB SPL)

Audio Codecs: G.711, G.722, G.722.1, G.729, AAC-LD, Opus

Audio Features: AEC, AGC, De-Reverberation, Spatial Audio, AI Noise Removal
Video & Content Live Video: Up to 1080p@60fps (encode/decode)

Presentation: 4K@15fps

Video Codecs: H.263, H.264, H.265, AV1

Inputs: 1×HDMI, 1×USB-C/DP, 2×Analog Line-In

Outputs: 3×HDMI (4K@60fps)
Connectivity Network: 3×RJ-45 (10/100/1000 Mbps, PoE 802.3af)

Wireless: Wi-Fi 6E (802.11ax), Bluetooth 5.0

USB: 1×USB-C (DP Alt-Mode), 2×USB-A, 1×Micro-USB (Service)

Others: HDMI CEC, Ultrasound Presence Detection
Power & Environment Power: 100–240VAC, 50/60Hz

Power Consumption: 20W (Avg), 12.7W (Network Standby), 1W (Standby)

Operating Temp: 0°C–35°C (32°F–95°F)

Humidity: 10%–90% RH (non-condensing)
Dimensions & Weight Main Unit: 37.8×4.3×3.5 in (96×11×9 cm), 9.86 lbs (4.47 kg)

Shipping Package: 44.3×9.2×8.9 in (112.6×23.3×22.7 cm), 19.6 lbs (8.9 kg)
Software RoomOS 11.5.1.x or later

Supported Platforms: Webex, Microsoft Teams, Zoom, Google Meet

AI Features: Voice Commands, Noise Removal, Virtual Meeting Zones, Closed Captioning







CS-BARPRO-K9 - video conferencing device - with Cisco Room Navigator-Table Stand

CS-BARPRO-K9 - video conferencing device - with Cisco Room Navigator-Table Stand
