CS-CAM-PTZ4K, Cisco CS-CAM-PTZ4K Camera, 4K 20x Zoom/PTZ/Ultra HD
CS-CAM-PTZ4K, Cisco CS-CAM-PTZ4K Camera, 4K 20x Zoom/PTZ/Ultra HD
CS-CAM-PTZ4K, Cisco CS-CAM-PTZ4K Camera, 4K 20x Zoom/PTZ/Ultra HD
CS-CAM-PTZ4K, Cisco CS-CAM-PTZ4K Camera, 4K 20x Zoom/PTZ/Ultra HD
CS-CAM-PTZ4K, Cisco CS-CAM-PTZ4K Camera, 4K 20x Zoom/PTZ/Ultra HD
CS-CAM-PTZ4K, Cisco CS-CAM-PTZ4K Camera, 4K 20x Zoom/PTZ/Ultra HD
Specifications
Brand Name :
Cisco
Model Number :
CS-CAM-PTZ4K+
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
Video Conference Endpoints
Part Number :
CS-CAM-PTZ4K+
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
CS-CAM-PTZ4K+
Description



Cisco CS-CAM-PTZ4K Overview


The Cisco CS-CAM-PTZ4K is a high-end 4K Pan-Tilt-Zoom (PTZ) camera offering 20x zoom capabilities, ideal for video conferencing and broadcasting. Perfect for enterprises and media professionals, this device enhances visual clarity with its superior image quality, making it a valuable asset for diverse environments, from boardrooms to studios.

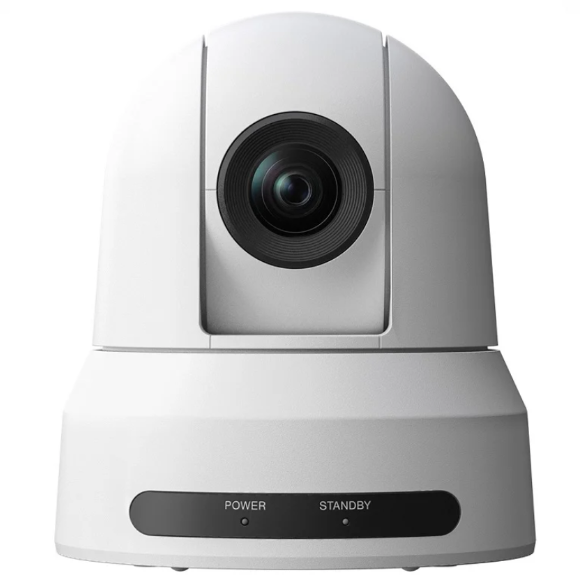

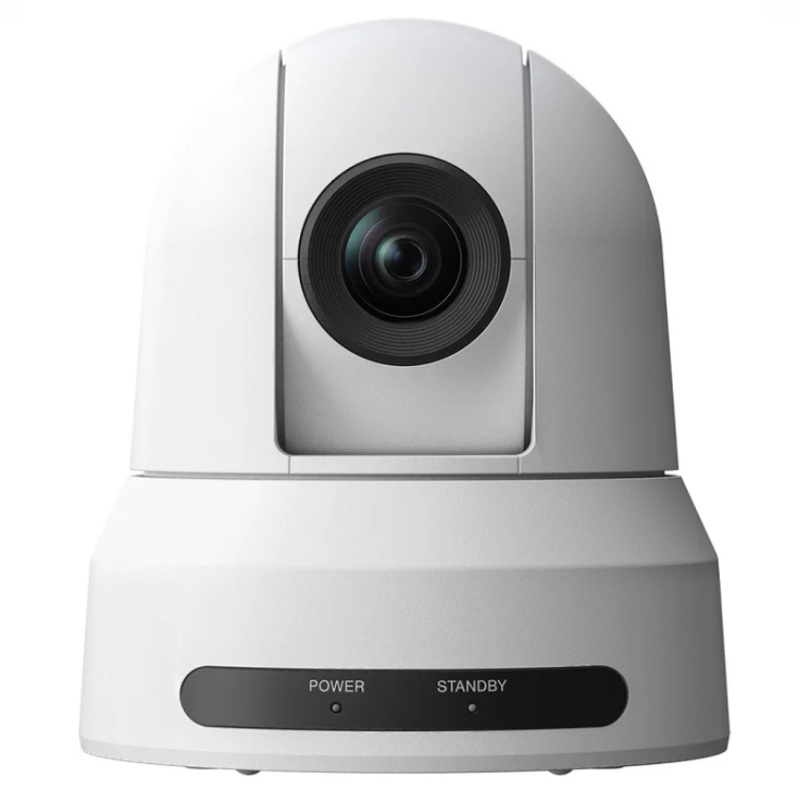

Figure 1 shows the front panel of CS-CAM-PTZ4K+.

CS-CAM-PTZ4K, Cisco CS-CAM-PTZ4K Camera, 4K 20x Zoom/PTZ/Ultra HD

CS-CAM-PTZ4K, Cisco CS-CAM-PTZ4K Camera, 4K 20x Zoom/PTZ/Ultra HD





Product Features Comparison

Model 4K Resolution Zoom Capability Image Processing PTZ Control Field of View Usage Scenarios
Cisco CS-CAM-PTZ4K Yes 20x Advanced Seamless Wide-angle Conferencing, Broadcasting
Logitech Rally Camera Yes 15x Standard Responsive Wide-angle Conferencing, Education
Sony BRC-X1000 Yes 12x Enhanced Smooth Wide-angle Broadcasting, Events
Panasonic AW-UE150 Yes 20x Advanced Precision Wide-angle Broadcasting, Conferencing
AVer CAM540 No 16x Standard Reliable Wide-angle Conferencing, Education
Jabra PanaCast No 3x Basic Smooth Panoramic Conferencing, Remote Work
Poly Studio P15 No 4x Basic Limited Wide-angle Conferencing, Home Office


Optional Add-ons

Model Description
WS-C2960X-24PS Cisco Catalyst 2960X 24 Port PoE Switch
CTS-MIC-TABL60 Cisco Table Microphone 60
CTS-CTRL-DVX10 Cisco Touch 10 Control Device


Cisco CS-CAM-PTZ4K Specification

Model
CS-CAM-PTZ4K
Brand
Cisco
Resolution
1920×1080 at 60 fps, 3840×2160 at 30 fps
Zoom
20x optical, 12x digital (240x total)
Pan Range
±170°
Tilt Range
–20° to +90°
Pan Speed
1.1°–300°/sec
Tilt Speed
1.1°–126°/sec
Field of View (FoV)
70° horizontal
Focus Distance
1.0 m to infinity (wide)
F-Value
f/2.0–3.8
Camera Control
VISCA over IP (LAN), manual/auto focus, white balance, brightness
Video Interface
HDMI 2.0
Power Supply Options
12V/3A DC, 100–120/200–240V AC (50/60Hz), PoE+ (IEEE 802.3at)
Compatible Power Supplies
FSP040-RHAN3, Phihong POE29U-1AT(PL), Microsemi PD-9001GR/AT/AC
Operating Temperature
0°–40°C (32°–104°F)
Operating Humidity
20–80% RH
Storage Temperature
–20°–60°C (–4°–140°F)
Storage Humidity
20–95% RH (non-condensing)
Dimensions (W × H × D)
6.3 in × 7.0 in (max tilt) × 8.0 in (15.8 cm × 17.7 cm × 20.0 cm)
Network Interface
1× RJ-45 10/100Mbps Ethernet
