Optical Transceiver 40GBase-iSR4 Optical Transceiver QSFP+ 40G Multi-mode QSFP-40G-iSR4
Optical Transceiver 40GBase-iSR4 Optical Transceiver QSFP+ 40G Multi-mode QSFP-40G-iSR4
Optical Transceiver 40GBase-iSR4 Optical Transceiver QSFP+ 40G Multi-mode QSFP-40G-iSR4
Optical Transceiver 40GBase-iSR4 Optical Transceiver QSFP+ 40G Multi-mode QSFP-40G-iSR4
Specifications
Brand Name :
HUAWEI
Model Number :
QSFP-40G-iSR4
Certification :
CE
Place of Origin :
USA
MOQ :
1
Price :
$200-$235
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
500 per week
Delivery Time :
1-2days
Condition :
original new
Model :
QSFP-40G-iSR4
Optical fiber type :
MMF
Form factor :
SFP+
Max Data Rate :
40Gbps
Wavelength :
850nm
Optical Components :
VCSEL 850nm
Connector Type :
LC
Part number :
02310MHR
Description

Huawei QSFP-40G-iSR4 Overview

Huawei QSFP-40G-iSR4 Compatible 40GBASE-SR4/4x10GBASE-SR QSFP+ Transceiver (MMF, 850nm, 150m, MTP/MPO).

Quick Specs

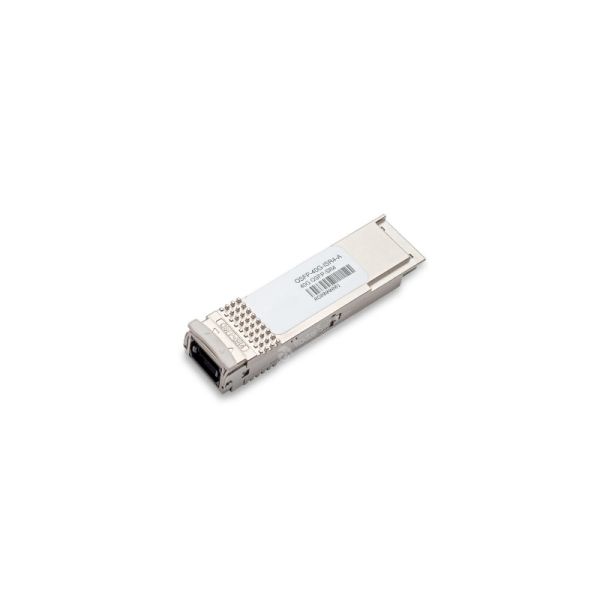

Figure 1 shows the appearance of QSFP-40G-iSR4.

Optical Transceiver 40GBase-iSR4 Optical Transceiver QSFP+ 40G Multi-mode QSFP-40G-iSR4

Table 1 shows the Quick Specs.

Product Code QSFP-40G-iSR4
Part Number 02310MHR
Description 40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver)
Form Type QSFP+
Wavelength 850nm
Interface MTP/MPO
Cable Type MMF
CDR Support Yes
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Max Data Rate 40Gbps
Max Cable Distance* 150m
Optical Components VCSEL 850nm
DOM Support NO
Protocols 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba

* Minimum cabling distance is 0.5 meters for -SR4 and -CSR4 modules.
Considered an engineered link with maximum 1 decibel loss budget.

Compare to Similar Items

Table 2 shows the comparison of QSFP-40G-ER4, QSFP-40G-iSR4 and QSFP-40G-LR4.

Product Code QSFP-40G-ER4 QSFP-40G-iSR4 CFP-40G-LR4
Part Number 02311BKT 02310MHR 02310MHS
Description 40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC) 40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver) 40GBase-LR4 Optical Transceiver,QSFP+,40GE,Single-mode Module(1310nm,10km,LC)
Form Type QSFP+ QSFP+ QSFP+
Wavelength 1310nm 850nm 1310nm
Max Data Rate 44.6Gbps 40Gbps 44.6Gbps
Max Cable Distance* 40km 150m 10km


Huawei QSFP-40G-iSR4 Specification

40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver)
