Specifications
Brand Name :
HUAWEI
Model Number :
4X100G QSFP-DD LR4
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
4X100G QSFP-DD LR4
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
4X100G QSFP-DD LR4
Description
4X100G QSFP-DD LR4 1310nm 10km Overview

This 4X100G QSFP-DD LR4 optical transceiver is a high-performance, compact module designed for 400G Ethernet and data center interconnect applications. Operating at 1310nm over 10km single mode fiber, it features 4 independent 100G channels for aggregate 400G bandwidth, meeting IEEE 802.3bs and QSFP-DD MSA standards. Equipped with DDM/DOM functionality for real-time monitoring of optical and electrical parameters, it offers low power consumption, reliable transmission, and plug-and-play compatibility with standard QSFP-DD ports, ideal for high-speed data center, cloud computing and telecom backbone network deployments.

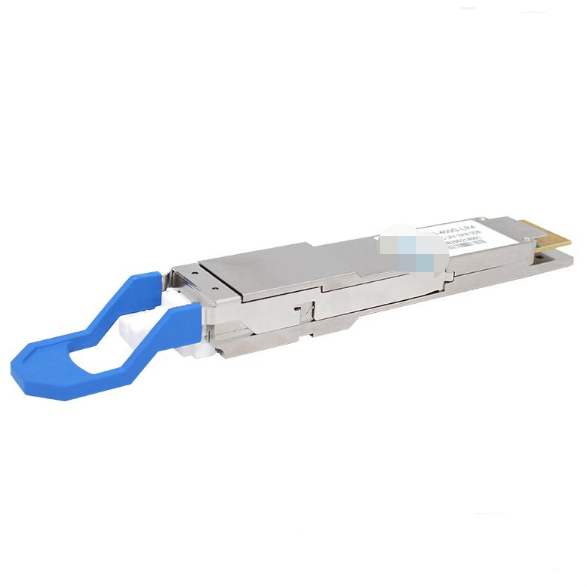

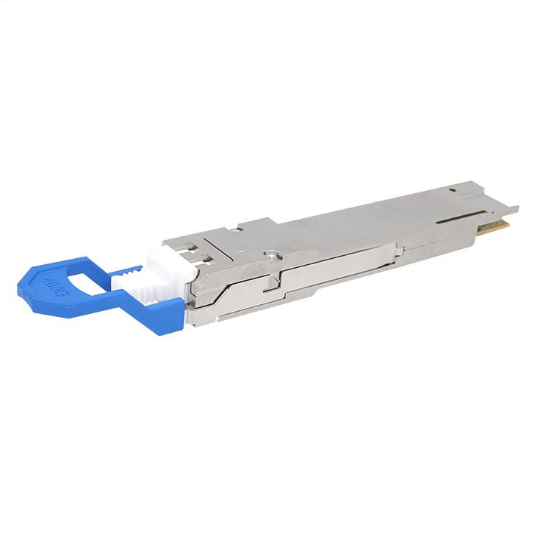

Figure 1 shows the front panel of 4X100G QSFP-DD LR4.

TS-QDO-314H-10C-1/4X100G QSFP-DD LR4 Transceiver 1310nm 10km Single Mode Fiber Module







TS-QDO-314H-10C-1/4X100G QSFP-DD LR4 Transceiver 1310nm 10km Single Mode Fiber Module











Quick Specs.

Table 1 shows the Quick Specs.


Parameter Specification
Form Factor QSFP-DD
Data Rate 4×100G (400G total)
Wavelength 1310nm
Transmission Distance 10km
Fiber Type Single Mode Fiber (SMF)





Detailed Specification
Parameter Details
Optical Form Factor QSFP-DD (Quad Small Form-factor Pluggable-Double Density)
Nominal Bit Rate 4×100 Gbps, 400 Gbps aggregate
Operating Wavelength 1310nm (CWDM4/LR4 wavelength band)
Max Transmission Distance 10km @ 9/125μm Single Mode Fiber (SMF)
Fiber Connector LC duplex (uniboot/MPO optional)
Operating Temperature Commercial: 0°C ~ 70°C (0-70°C); Industrial: -40°C ~ 85°C (-40-85°C)
Power Consumption Typical < 4.5W, Max < 5.0W
Digital Diagnostics Support DDM/DOM (Digital Diagnostic Monitoring)
Compliance MSA Compliant, IEEE 802.3bs, QSFP-DD MSA
Laser Type FP/DFB Laser
Receiver Type PIN/APD Photodiode

TS-QDO-314H-10C-1/4X100G QSFP-DD LR4 Transceiver 1310nm 10km Single Mode Fiber Module
TS-QDO-314H-10C-1/4X100G QSFP-DD LR4 Transceiver 1310nm 10km Single Mode Fiber Module
