800G OSFP VR8 MPO Optical Transceiver with 800Gbps Data Rate, 850nm VCSEL Technology, and 50m OM4 MMF Reach
800G OSFP VR8 MPO Optical Transceiver with 800Gbps Data Rate, 850nm VCSEL Technology, and 50m OM4 MMF Reach
800G OSFP VR8 MPO Optical Transceiver with 800Gbps Data Rate, 850nm VCSEL Technology, and 50m OM4 MMF Reach
800G OSFP VR8 MPO Optical Transceiver with 800Gbps Data Rate, 850nm VCSEL Technology, and 50m OM4 MMF Reach
800G OSFP VR8 MPO Optical Transceiver with 800Gbps Data Rate, 850nm VCSEL Technology, and 50m OM4 MMF Reach
800G OSFP VR8 MPO Optical Transceiver with 800Gbps Data Rate, 850nm VCSEL Technology, and 50m OM4 MMF Reach
Specifications
Brand Name :
HUAWEI
Model Number :
800G OSFP VR8 MPO
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
SFP Optical Transceiver
Part Number :
800G OSFP VR8 MPO
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
800G OSFP VR8 MPO
Description
800G OSFP VR8 MPO Overview

This 800G OSFP VR8 MPO optical transceiver is a high-performance hot-pluggable module engineered for 800G Ethernet links in data centers, AI computing and high-performance computing networks. Adopting 8x112G PAM4 modulation and 850nm VCSEL technology, it enables full-duplex 800Gbps data transmission over 8 parallel pairs of multimode fiber, supporting a maximum reach of 50m on OM4 MMF and 30m on OM3 MMF.

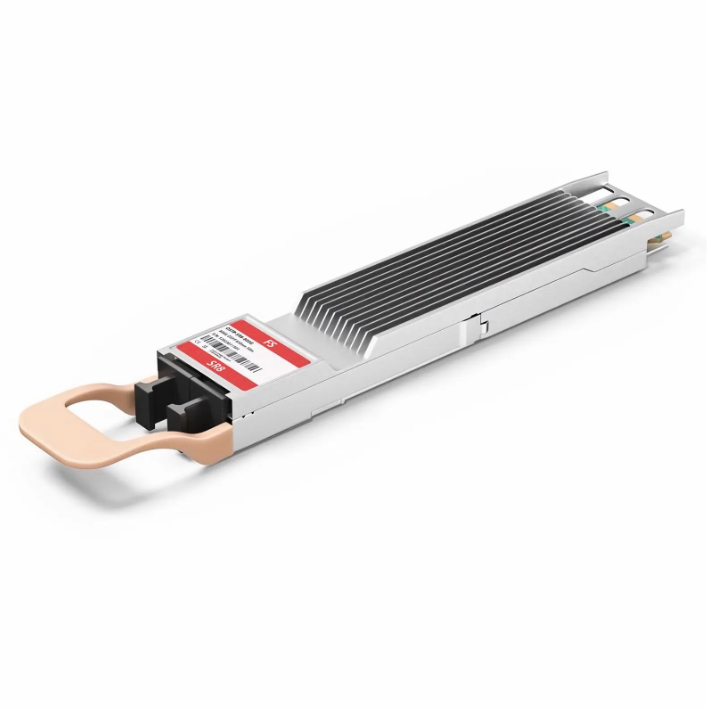

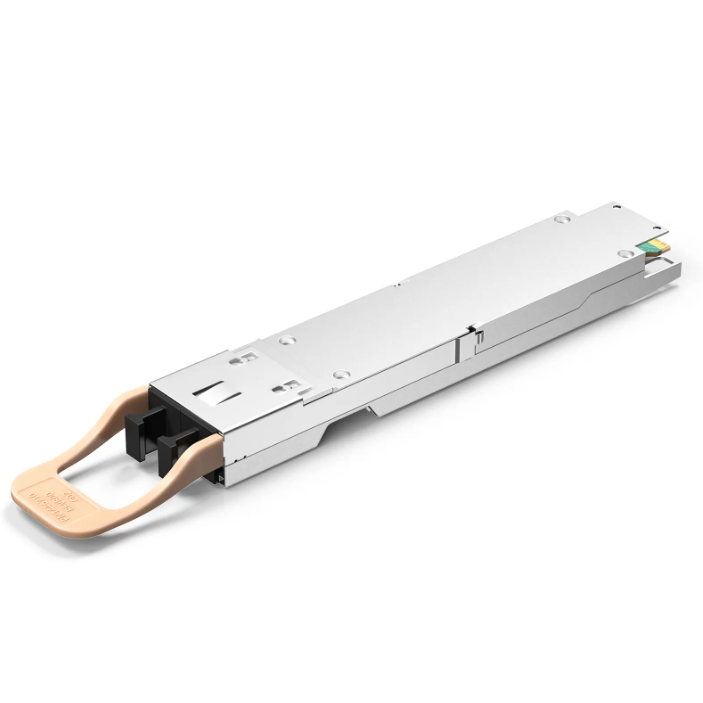

Figure 1 shows the front panel of 800G OSFP VR8 MPO.

800G OSFP VR8 MPO Optical Transceiver with 800Gbps Data Rate, 850nm VCSEL Technology, and 50m OM4 MMF Reach
800G OSFP VR8 MPO Optical Transceiver with 800Gbps Data Rate, 850nm VCSEL Technology, and 50m OM4 MMF Reach



Quick Specs.

Table 1 shows the Quick Specs

Parameter Specification
Data Rate 800Gbps
Wavelength 850nm
Max Distance 50m(OM4)
Form Factor OSFP
Optical Interface MPO-12/APC




Detailed Specification
Item Min Max Unit Note
Data Rate - 800 Gbps 8x112G PAM4 Modulation
Operating Wavelength - 850 nm VCSEL Technology
Transmission Distance - 50 m OM4 MMF;30m for OM3
Power Consumption - 16 W Typical <14W
Supply Voltage 3.0 3.6 V 3.3V Nominal
Operating Temperature 0 70 °C Commercial Grade
Optical Interface - - - Dual MPO-12/APC
Transmit Power -4.6 6 dBm -
Receive Sensitivity -6.3 4 dBm -
800G OSFP VR8 MPO Optical Transceiver with 800Gbps Data Rate, 850nm VCSEL Technology, and 50m OM4 MMF Reach
800G OSFP VR8 MPO Optical Transceiver with 800Gbps Data Rate, 850nm VCSEL Technology, and 50m OM4 MMF Reach
