800G QSFP-DD SR8 MPO Optical Transceiver Module with 800Gbps Data Rate, MPO-12 Connector, and 850nm VCSEL Array for High-Speed Data Centers
800G QSFP-DD SR8 MPO Optical Transceiver Module with 800Gbps Data Rate, MPO-12 Connector, and 850nm VCSEL Array for High-Speed Data Centers
800G QSFP-DD SR8 MPO Optical Transceiver Module with 800Gbps Data Rate, MPO-12 Connector, and 850nm VCSEL Array for High-Speed Data Centers
800G QSFP-DD SR8 MPO Optical Transceiver Module with 800Gbps Data Rate, MPO-12 Connector, and 850nm VCSEL Array for High-Speed Data Centers
800G QSFP-DD SR8 MPO Optical Transceiver Module with 800Gbps Data Rate, MPO-12 Connector, and 850nm VCSEL Array for High-Speed Data Centers
800G QSFP-DD SR8 MPO Optical Transceiver Module with 800Gbps Data Rate, MPO-12 Connector, and 850nm VCSEL Array for High-Speed Data Centers
Specifications
Brand Name :
HUAWEI
Model Number :
800G QSFP-DD SR8 MPO
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
SFP Optical Transceiver
Part Number :
800G QSFP-DD SR8 MPO
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
800G QSFP-DD SR8 MPO
Description
800G QSFP-DD SR8 MPO Overview

This 800G QSFP-DD SR8 MPO optical transceiver is a high-performance, pluggable module designed for 800G Ethernet and data center interconnect applications. Adopting 8×100G PAM4 modulation technology and 850nm VCSEL light source, it delivers 800Gbps full-duplex data transmission over 100m OM3/OM4 multimode fiber, meeting the high-bandwidth and low-latency demands of modern cloud data centers, AI computing clusters and high-speed switch-to-switch connections. Featuring the compact QSFP-DD form factor and MPO-12 connector, it enables dense port deployment and easy fiber cabling. With built-in DDM/DOM functions, it supports real-time monitoring of operating status for convenient maintenance. Fully compliant with QSFP-DD MSA and IEEE 802.3bs standards, this module ensures seamless compatibility with mainstream network equipment, providing a reliable and cost-effective 800G connectivity solution.

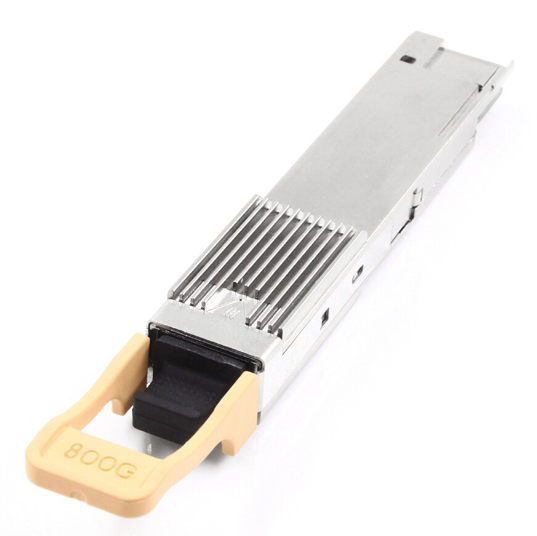

Figure 1 shows the front panel of 800G QSFP-DD SR8 MPO.

800G QSFP-DD SR8 MPO Optical Transceiver Module with 800Gbps Data Rate, MPO-12 Connector, and 850nm VCSEL Array for High-Speed Data Centers

800G QSFP-DD SR8 MPO Optical Transceiver Module with 800Gbps Data Rate, MPO-12 Connector, and 850nm VCSEL Array for High-Speed Data Centers








Quick Specs.

Table 1 shows the Quick Specs

Parameter Specification
Form Factor QSFP-DD
Data Rate 800Gbps
Reach 100m
Connector MPO-12
Wavelength 850nm






Detailed Specification
Parameter Details
Transceiver Type 800G QSFP-DD SR8
Form Factor QSFP-DD (Quad Small Form-factor Pluggable-Double Density)
Nominal Data Rate 800Gbps (8×100G PAM4)
Transmission Distance 100m over OM3/OM4 multimode fiber (MMF)
Wavelength 850nm VCSEL array
Fiber Connector MPO-12 (Female), APC/UPC optional
Operating Temperature 0°C ~ 70°C (Commercial Grade)
Power Consumption ≤7W
Compliance QSFP-DD MSA, IEEE 802.3bs, CFP MSA
Digital Diagnostics DDM/DOM Supported
800G QSFP-DD SR8 MPO Optical Transceiver Module with 800Gbps Data Rate, MPO-12 Connector, and 850nm VCSEL Array for High-Speed Data Centers
800G QSFP-DD SR8 MPO Optical Transceiver Module with 800Gbps Data Rate, MPO-12 Connector, and 850nm VCSEL Array for High-Speed Data Centers
