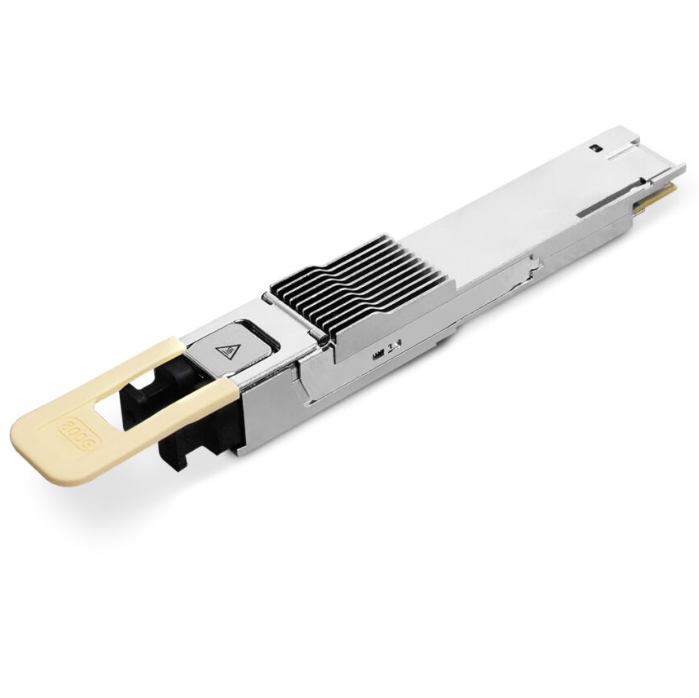

800G QSFP-DD Loopback Module - High Performance Optical Test Module
800G QSFP-DD Loopback Module - High Performance Optical Test Module
800G QSFP-DD Loopback Module - High Performance Optical Test Module
800G QSFP-DD Loopback Module - High Performance Optical Test Module
800G QSFP-DD Loopback Module - High Performance Optical Test Module
800G QSFP-DD Loopback Module - High Performance Optical Test Module
800G QSFP-DD Loopback Module - High Performance Optical Test Module
800G QSFP-DD Loopback Module - High Performance Optical Test Module
Specifications
Brand Name :
HUAWEI
Model Number :
800G QSFP-DD
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
SFP Optical Transceiver
Part Number :
800G QSFP-DD
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
800G QSFP-DD
Description
800G QSFP-DD Overview

This 800G QSFP-DD Loopback Module is a high-performance passive test component designed for QSFP-DD port validation and system debugging in 800G optical communication networks. Compliant with QSFP-DD MSA and IEEE 802.3bs standards, it supports 800Gbps data rate with 8×100G PAM4 modulation, featuring a hot-pluggable standard QSFP-DD form factor for easy deployment. Equipped with MTP/MPO-12 female interface, the passive design requires no power supply, ensuring stable and reliable performance in commercial temperature ranges (0~70℃). Ideal for factory calibration, network equipment port testing and lab R&D validation, it provides a cost-effective solution for verifying 800G optical transceiver and switch port functionality.

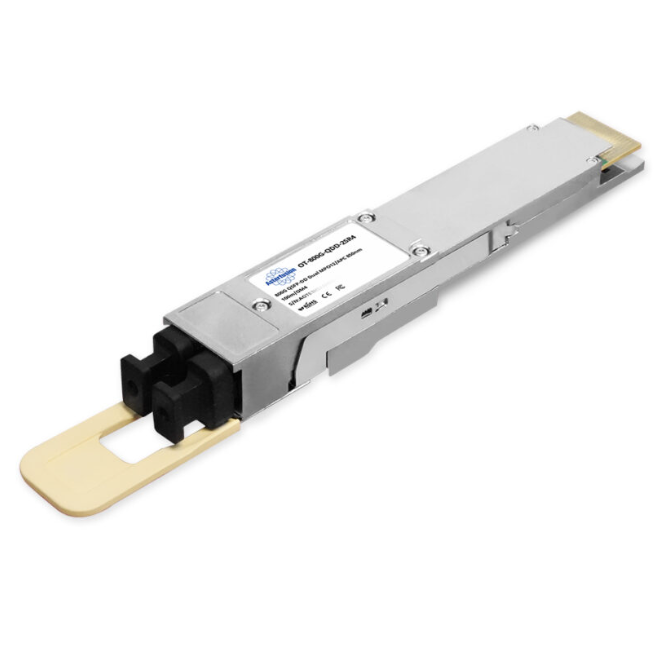

Figure 1 shows the front panel of 800G QSFP-DD.

800G QSFP-DD Loopback Module - High Performance Optical Test Module
800G QSFP-DD Loopback Module - High Performance Optical Test Module



Quick Specs.

Table 1 shows the Quick Specs.

Parameter Specification
Form Factor QSFP-DD
Data Rate 800Gbps
Interface MTP/MPO
Operating Temp 0~70℃
Power Passive (0W)



Detailed Specification
Item Details
Product Type 800G QSFP-DD Passive Loopback Module
Form Factor Standard QSFP-DD, Hot-Pluggable
Data Rate Support 800Gbps (8×100G PAM4)
Fiber Interface MTP/MPO-12 (Female)
Wavelength Unspecified (Passive)
Operating Temperature Commercial Grade (0°C ~ 70°C)
Storage Temperature -40°C ~ 85°C
Power Consumption Passive, No Power Required
Compliance QSFP-DD MSA, IEEE 802.3bs
Application Port Testing, System Debugging, Factory Calibration
