TS-QD-CO1H-ZRPC/100G QSFP-DD Coherent ZR+ Tunable Transceiver | C-Band SMF LC DCO Module
TS-QD-CO1H-ZRPC/100G QSFP-DD Coherent ZR+ Tunable Transceiver | C-Band SMF LC DCO Module
TS-QD-CO1H-ZRPC/100G QSFP-DD Coherent ZR+ Tunable Transceiver | C-Band SMF LC DCO Module
TS-QD-CO1H-ZRPC/100G QSFP-DD Coherent ZR+ Tunable Transceiver | C-Band SMF LC DCO Module
TS-QD-CO1H-ZRPC/100G QSFP-DD Coherent ZR+ Tunable Transceiver | C-Band SMF LC DCO Module
TS-QD-CO1H-ZRPC/100G QSFP-DD Coherent ZR+ Tunable Transceiver | C-Band SMF LC DCO Module
Specifications
Brand Name :
HUAWEI
Model Number :
100G QSFP-DD COHERENT ZR+
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
SFP Optical Transceiver
Part Number :
100G QSFP-DD COHERENT ZR+
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
100G QSFP-DD COHERENT ZR+
Description
100G QSFP-DD COHERENT ZR+ Overview

This 100G QSFP-DD Coherent ZR+ Tunable Transceiver is a high-performance digital coherent optics (DCO) module engineered for long-reach data center interconnect (DCI) and metro optical transport networks. Fully compliant with Open ZR+ MSA and QSFP-DD MSA standards, it delivers 100Gbps payload transmission over single-mode fiber (SMF) with a tunable C-band laser (1528.77~1567.13nm), eliminating the need for additional transponder/muxponder equipment and reducing network CAPEX and OPEX significantly.

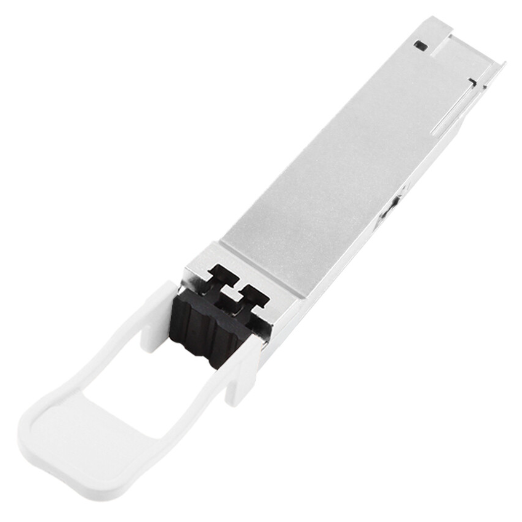

Figure 1 shows the front panel of 100G QSFP-DD COHERENT ZR+.

TS-QD-CO1H-ZRPC/100G QSFP-DD Coherent ZR+ Tunable Transceiver | C-Band SMF LC DCO Module

TS-QD-CO1H-ZRPC/100G QSFP-DD Coherent ZR+ Tunable Transceiver | C-Band SMF LC DCO Module












Quick Specs.

Table 1 shows the Quick Specs

ParameterSpecification
Form FactorQSFP-DD (Hot-pluggable)
Data Rate100Gbps (Open ZR+ Compliant)
WavelengthC-Band 1528.77~1567.13nm Tunable
Fiber TypeSingle-Mode Fiber (SMF)
ConnectorDuplex LC
Operating Temp0°C ~ 70°C
Max Power16.5W (Typical)
Transmission Reach>600km (Amplified SMF)






Detailed Specification
CategoryParameterSpecification
OpticalWavelength Range1528.77 nm – 1567.13 nm (C-Band)

TunabilityFull C-Band Tunable

Tx Output Power-6 dBm ~ -2 dBm

Rx Sensitivity-32 dBm

Rx Overload+4 dBm

Chromatic Dispersion ToleranceUp to 5000 ps/nm

OSNR Tolerance12 dB/0.1nm
ElectricalData Rate100Gbps Payload (Open ZR+)

Electrical InterfaceCAUI-4 (4×25.78125Gbps NRZ), 100GAUI-2 (2×26.5625Gbd PAM4)

Power Supply Voltage3.218V ~ 3.465V

Power Consumption16.5W (Typical), 1.5W (Low-power)
MechanicalForm FactorQSFP-DD (Type 2A)

Connector TypeDuplex LC (UPC)

Hot-plugSupported
FunctionalFEC SupportO-FEC(15%), RS-FEC(544/528), RS-FEC(544/514)

Digital MonitoringDOM (Real-time Diagnostics)

Modulation FormatDP-QPSK
EnvironmentalOperating Temperature0°C ~ 70°C (Commercial)

Storage Temperature-40°C ~ 85°C
ComplianceStandardsQSFP-DD MSA, Open ZR+, IEEE 802.3, RoHS, TAA
ApplicationTransmission Reach>600km (Amplified SMF); DCI/Metro Links
