Specifications
Brand Name :
HUAWEI
Model Number :
800G OSFP SR8 MPO
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
SFP Optical Transceiver
Part Number :
800G OSFP SR8 MPO
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
800G OSFP SR8 MPO
Description
800G OSFP SR8 MPO Overview

The 800G OSFP SR8 MPO transceiver is a high-performance hot-pluggable optical module engineered for short-reach high-speed connectivity in modern data centers, high performance computing (HPC) and telecom central offices. Compliant with OSFP MSA Type 2 and CMIS Rev 5.0+, it adopts advanced PAM4 modulation technology with a 53.125 Gbd signaling rate per lane, delivering an aggregate data rate of 800Gbps. Equipped with dual MPO-12 APC receptacles, the module supports transmission distances up to 30 meters over OM3 multimode fiber and 50 meters over OM4 multimode fiber, meeting the short-reach transmission demands of high-density network infrastructure.

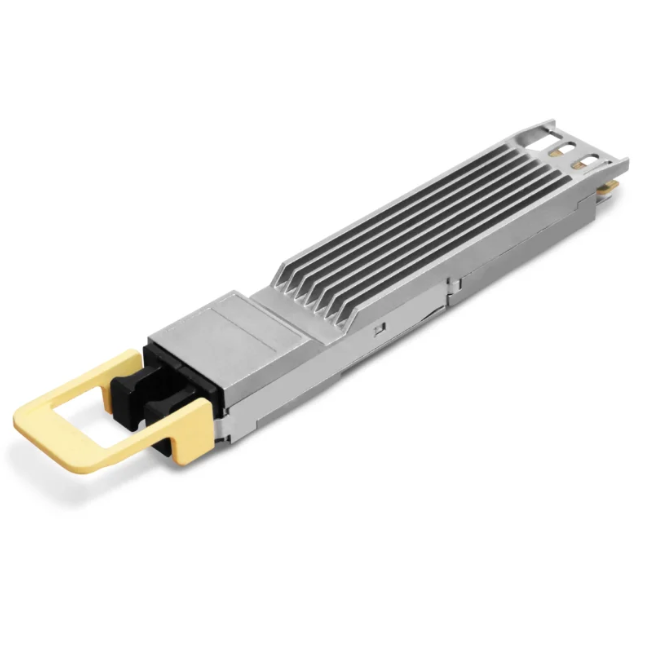

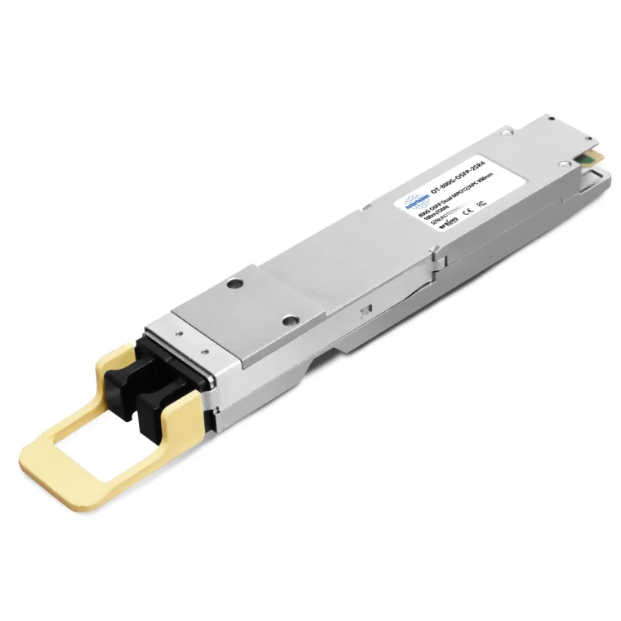

Figure 1 shows the front panel of 800G OSFP SR8 MPO.

TS-OPO8-858H-01C/800G OSFP SR8 MPO Transceiver 850nm 30m/50m Multimode Fiber Module for Data Center












TS-OPO8-858H-01C/800G OSFP SR8 MPO Transceiver 850nm 30m/50m Multimode Fiber Module for Data Center











Quick Specs.

Table 1 shows the Quick Specs

Parameter Specification
Data Rate 800Gbps
Form Factor OSFP
Wavelength 850nm
Connector Dual MPO-12 APC
Transmission Distance 30m@OM3,50m@OM4
Modulation PAM4
Operating Temp 0°C~70°C
Max Power 17W







Detailed Specification
Parameter Min Typical Max Unit Notes
Storage Temperature -40 - +85 °C /
Supply Voltage 3.135 3.3 3.465 V /
Operating Humidity 5 - 95 % No condensation
Signaling Rate per Lane - 53.125 - Gbd PAM4
Transmit OMA -2.1 - 3.5 dBm Per lane
TDECQ - - 4.4 dB Per lane
Extinction Ratio 2.5 3.5 - dB Per lane
Power Dissipation - - 17 W Max
Operating Distance (OM3) 2 - 30 m /
Operating Distance (OM4) 2 - 50 m /
