TS-C2-CO1H-ZR0C/100G CFP2 Coherent Transceiver DWDM 80KM High Performance Optical Module
TS-C2-CO1H-ZR0C/100G CFP2 Coherent Transceiver DWDM 80KM High Performance Optical Module
TS-C2-CO1H-ZR0C/100G CFP2 Coherent Transceiver DWDM 80KM High Performance Optical Module
TS-C2-CO1H-ZR0C/100G CFP2 Coherent Transceiver DWDM 80KM High Performance Optical Module
TS-C2-CO1H-ZR0C/100G CFP2 Coherent Transceiver DWDM 80KM High Performance Optical Module
TS-C2-CO1H-ZR0C/100G CFP2 Coherent Transceiver DWDM 80KM High Performance Optical Module
TS-C2-CO1H-ZR0C/100G CFP2 Coherent Transceiver DWDM 80KM High Performance Optical Module
TS-C2-CO1H-ZR0C/100G CFP2 Coherent Transceiver DWDM 80KM High Performance Optical Module
Specifications
Brand Name :
HUAWEI
Model Number :
100G CFP2 COHERENT DWDM
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
SFP Optical Transceiver
Part Number :
100G CFP2 COHERENT DWDM
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
100G CFP2 COHERENT DWDM
Description
100G CFP2 COHERENT DWDM 80KM Overview

This 100G CFP2 Coherent DWDM 80KM optical transceiver is a high-performance, compact optical module engineered for long-haul and metro optical communication networks. Adopting advanced coherent modulation technology, it delivers 100Gbps high-speed data transmission over 80 kilometers of single-mode fiber (SMF) with DWDM C-Band wavelength support, fully complying with ITU-T and MSA industry standards. Featuring the CFP2 form factor, it offers excellent compatibility and easy integration with existing network equipment, while the LC duplex SMF interface ensures stable and low-loss optical signal transmission. Designed for commercial temperature operation (0°C ~ 70°C) and compliant with RoHS and CE certifications, this transceiver is ideal for dense wavelength division multiplexing applications in telecom backbone, enterprise core, and data center interconnection (DCI) networks, providing reliable, high-bandwidth optical connectivity solutions for network operators and enterprises.

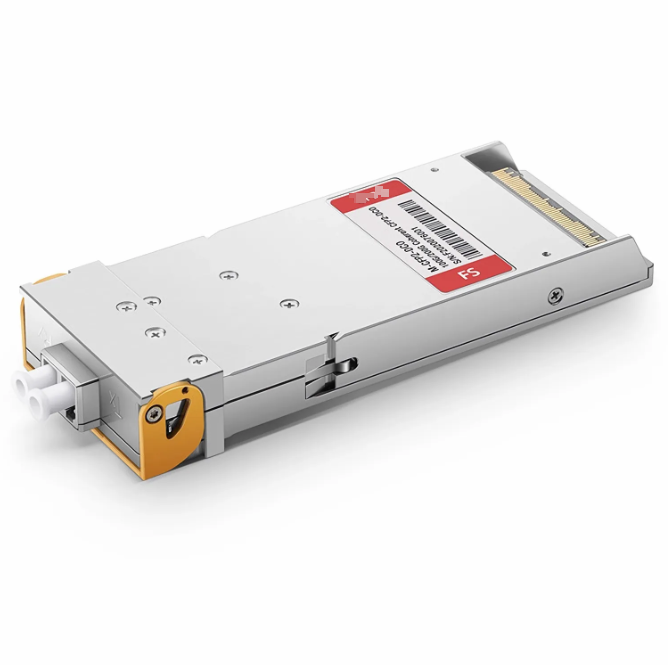

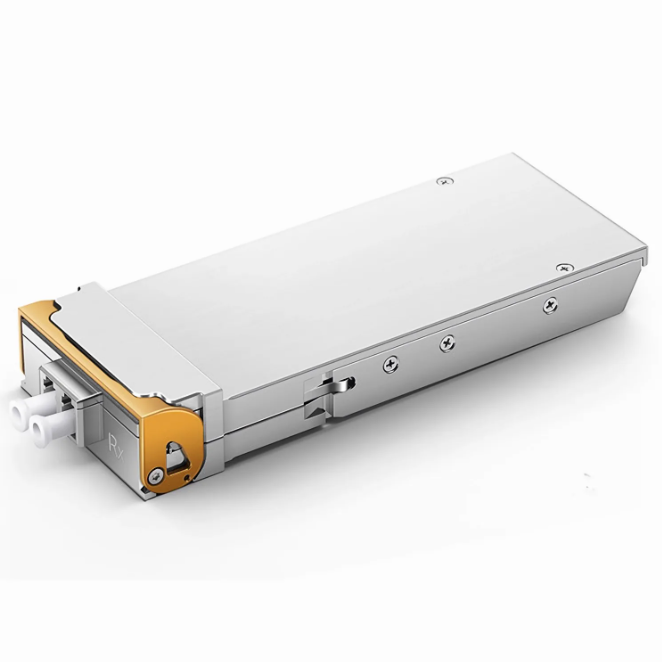

Figure 1 shows the front panel of 100G CFP2 COHERENT DWDM.

TS-C2-CO1H-ZR0C/100G CFP2 Coherent Transceiver DWDM 80KM High Performance Optical Module

TS-C2-CO1H-ZR0C/100G CFP2 Coherent Transceiver DWDM 80KM High Performance Optical Module




Quick Specs.

Table 1 shows the Quick Specs

Parameter Specification
Speed 100G
Form Factor CFP2
Type Coherent
Transmission DWDM
Reach 80KM




Detailed Specification
Item Details
Optical Form Factor CFP2
Data Rate 100Gbps
Modulation Type Coherent Modulation
Transmission Mode DWDM (Dense Wavelength Division Multiplexing)
Transmission Reach 80 Kilometers
Operating Wavelength DWDM C-Band (Compliant with ITU-T G.694.1)
Interface LC Duplex (Single Mode Fiber, SMF)
Power Supply Compliant with CFP2 MSA Standard
Operating Temperature 0°C ~ 70°C (Commercial Grade)
Compliance MSA, ITU-T, RoHS, CE
TS-C2-CO1H-ZR0C/100G CFP2 Coherent Transceiver DWDM 80KM High Performance Optical Module
TS-C2-CO1H-ZR0C/100G CFP2 Coherent Transceiver DWDM 80KM High Performance Optical Module
