TS-C2-CO2H-ZR0C/200G CFP2 Coherent Transceiver - High Speed DWDM Optical Module for Long Haul Transmission
TS-C2-CO2H-ZR0C/200G CFP2 Coherent Transceiver - High Speed DWDM Optical Module for Long Haul Transmission
TS-C2-CO2H-ZR0C/200G CFP2 Coherent Transceiver - High Speed DWDM Optical Module for Long Haul Transmission
TS-C2-CO2H-ZR0C/200G CFP2 Coherent Transceiver - High Speed DWDM Optical Module for Long Haul Transmission
Specifications
Brand Name :
HUAWEI
Model Number :
200G CFP2 COHERENT
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
SFP Optical Transceiver
Part Number :
200G CFP2 COHERENT
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
200G CFP2 COHERENT
Description
200G CFP2 COHERENT Overview

The 200G CFP2 Coherent Optical Transceiver is a high-performance pluggable module designed for 100/200Gbps long-haul, metro and DCI optical transmission networks. Adopting advanced digital coherent technology with integrated InP PICs and high-performance DSP A-S-I-C-S, it supports flexible modulation formats including DP-QPSK (100G), DP-8QAM and DP-16QAM (200G), enabling high-speed data transmission over single-mode fiber (SMF) with a maximum reach of 1300km.

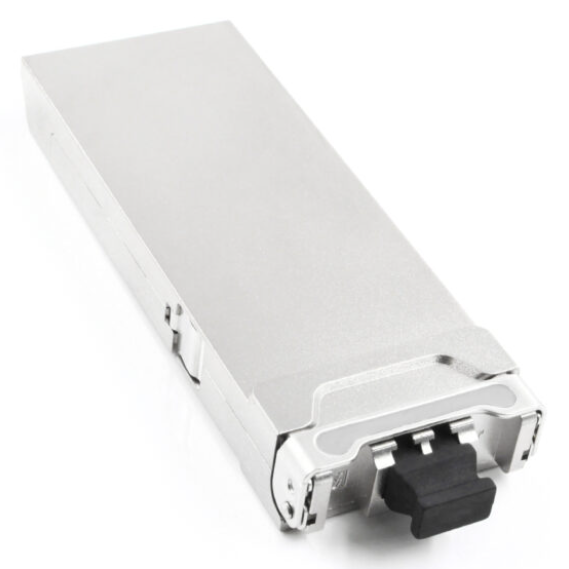

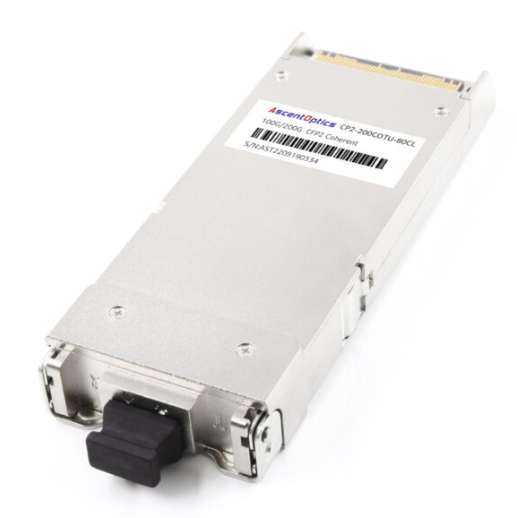

Figure 1 shows the front panel of 200G CFP2 COHERENT.

TS-C2-CO2H-ZR0C/200G CFP2 Coherent Transceiver - High Speed DWDM Optical Module for Long Haul Transmission
TS-C2-CO2H-ZR0C/200G CFP2 Coherent Transceiver - High Speed DWDM Optical Module for Long Haul Transmission




Quick Specs.

Table 1 shows the Quick Specs

Parameter Specification
Data Rate 200Gbps (100Gbps compatible)
Form Factor CFP2 MSA Compliant
Modulation DP-QPSK,DP-8QAM,DP-16QAM
Transmission Reach Up to 1300km SMF
Operating Temp -5~70℃




Detailed Specification
Category Parameter Min Typ Max Unit
Electrical Supply Voltage 3.3 - - V

Power Consumption - - 26 W
Optical (Tx) Mean Output Power (DP-QPSK/8QAM/16QAM) -5 - 1 dBm

Baud Rate per IQ Modulator 27.95 - 43 GBaud

Tunable Wavelength Range 1528.77 - 1568.36 nm
Optical (Rx) Input Power Range -24 - 5 dBm

OSNR Sensitivity (200G) 14 - 18 dB
Mechanical Form Factor Size 106 - 41.5×12.4 mm

Interface LC Duplex (Optical),104-pin (Electrical) - - -
Environmental Operating Temperature -5 - 70 ℃

Storage Temperature -40 - 85 ℃
