TS-Q8-CO1H-ZR0C/100G QSFP28 ZR Coherent Transceiver Module - High Performance for Long-Haul Transmission
TS-Q8-CO1H-ZR0C/100G QSFP28 ZR Coherent Transceiver Module - High Performance for Long-Haul Transmission
TS-Q8-CO1H-ZR0C/100G QSFP28 ZR Coherent Transceiver Module - High Performance for Long-Haul Transmission
TS-Q8-CO1H-ZR0C/100G QSFP28 ZR Coherent Transceiver Module - High Performance for Long-Haul Transmission
TS-Q8-CO1H-ZR0C/100G QSFP28 ZR Coherent Transceiver Module - High Performance for Long-Haul Transmission
TS-Q8-CO1H-ZR0C/100G QSFP28 ZR Coherent Transceiver Module - High Performance for Long-Haul Transmission
Specifications
Brand Name :
HUAWEI
Model Number :
100G QSFP28 ZR COHERENT
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
SFP Optical Transceiver
Part Number :
100G QSFP28 ZR COHERENT
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
100G QSFP28 ZR COHERENT
Description
100G QSFP28 ZR COHERENT Overview

This 100G QSFP28 ZR Coherent Transceiver Module is a high-performance optical communication component designed for long-haul fiber optic transmission applications. Adopting advanced coherent modulation technology (DP-QPSK), it delivers a stable 100Gbps data rate with an 80km transmission reach over standard single-mode fiber (G.652), meeting the ZR grade performance requirements.

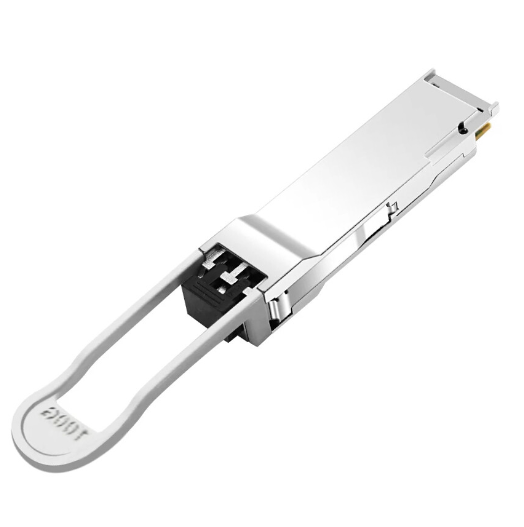

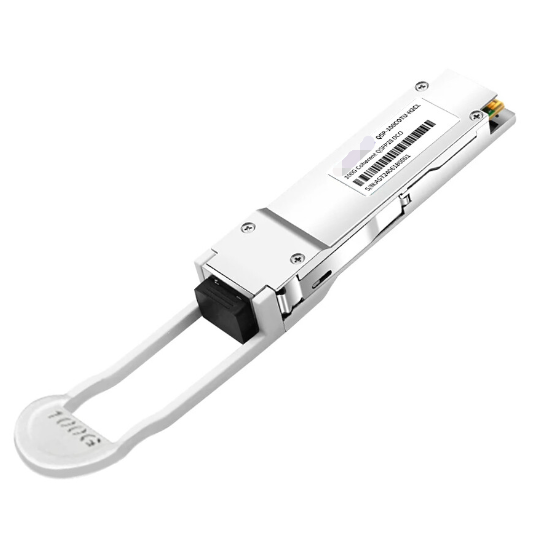

Figure 1 shows the front panel of 100G QSFP28 ZR COHERENT.

TS-Q8-CO1H-ZR0C/100G QSFP28 ZR Coherent Transceiver Module - High Performance for Long-Haul Transmission

TS-Q8-CO1H-ZR0C/100G QSFP28 ZR Coherent Transceiver Module - High Performance for Long-Haul Transmission











Quick Specs.

Table 1 shows the Quick Specs

Parameter Specification
Form Factor QSFP28
Data Rate 100Gbps
Transmission Reach ZR (80km)
Technology Coherent
Interface LC Duplex





Detailed Specification
Parameter Details
Form Factor QSFP28 (Quad Small Form-factor Pluggable 28)
Nominal Data Rate 100Gbps
Modulation Format Coherent Modulation (DP-QPSK)
Transmission Distance ZR Grade, Up to 80km over Single-Mode Fiber (SMF)
Wavelength C-Band (1550nm window)
Fiber Type Single-Mode Fiber (SMF, G.652)
Optical Interface LC Duplex, Low Insertion Loss
Digital Diagnostics DDM/DOM Supported (Digital Diagnostic/Monitoring)
Operating Temperature Commercial Temp: 0~70℃; Industrial Temp: -40~85℃ (optional)
Power Consumption Typical <3.5W
Compliance MSA Compliant, RoHS, REACH
TS-Q8-CO1H-ZR0C/100G QSFP28 ZR Coherent Transceiver Module - High Performance for Long-Haul Transmission
TS-Q8-CO1H-ZR0C/100G QSFP28 ZR Coherent Transceiver Module - High Performance for Long-Haul Transmission
