Specifications
Brand Name :
HUAWEI
Model Number :
100G CFP DWDM COHERENT
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
SFP Optical Transceiver
Part Number :
100G CFP DWDM COHERENT
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
100G CFP DWDM COHERENT
Description
100G CFP DWDM COHERENT Overview

This 100G CFP DWDM Coherent Transceiver Module is a high-performance, pluggable optical device engineered for next-generation long-haul and metro optical communication networks. Adopting advanced DP-QPSK coherent modulation technology and integrated digital signal processing (DSP), it delivers 100Gbps ultra-high data transmission over single-mode fiber (SMF) with exceptional signal integrity and anti-interference capability, supporting transmission reaches up to 400km without additional signal regeneration.

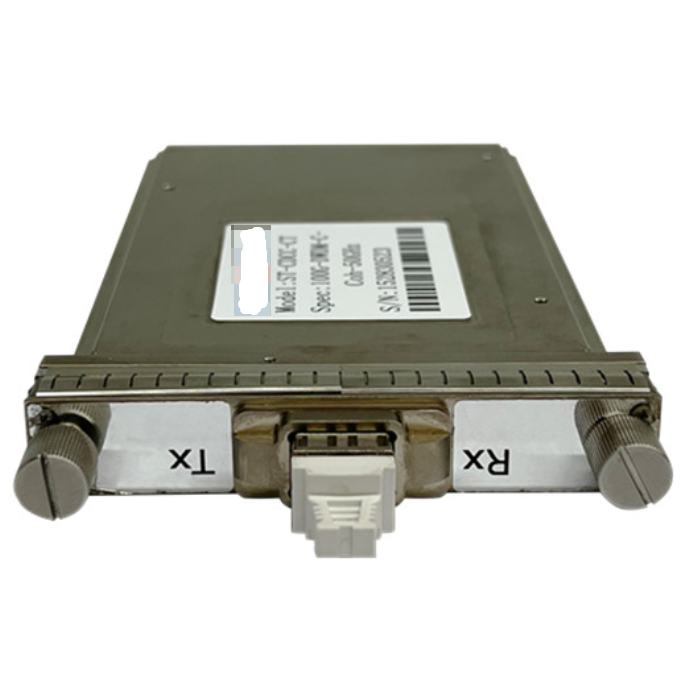

Figure 1 shows the front panel of 100G CFP DWDM COHERENT.

TS-CF-CO1H-ZR0C/100G CFP DWDM Coherent Transceiver Module - High Performance for Optical Networks

TS-CF-CO1H-ZR0C/100G CFP DWDM Coherent Transceiver Module - High Performance for Optical Networks



Quick Specs.

Table 1 shows the Quick Specs

Parameter Specification
Form Factor CFP
Data Rate 100Gbps
Technology DWDM Coherent
Wavelength C-band DWDM
Transmission Distance Up to 80km/120km/400km






Detailed Specification
Parameter Detailed Specification
Form Factor CFP (C Form-factor Pluggable)
Nominal Data Rate 100Gbps (100 Gigabit per second)
Modulation Format DP-QPSK (Dual Polarization - Quadrature Phase Shift Keying)
Wavelength Range C-band (1530nm - 1565nm) DWDM ITU-T Grid
Channel Spacing 50GHz/100GHz
Transmission Reach 80km (SMF), 120km (SMF), 400km (SMF with EDFA)
Interface LC Duplex (Single Mode Fiber, SMF)
Digital Signal Processing Integrated Coherent DSP
Power Supply 3.3V DC
Operating Temperature 0°C ~ +70°C (Commercial Grade)
Compliance MSA Compliant, ITU-T G.698.2, IEEE 802.3ba
Power Consumption ≤15W
