400G QSFP-DD OPEN High Tx Power ZR+ Overview

This 400G QSFP-DD Open High Tx Power ZR+ coherent optical transceiver is a high-performance, cost-effective solution optimized for 100G/200G long-haul and 300G/400G metro IP over DWDM applications, eliminating the need for inline chromatic dispersion compensation. Compliant with QSFP-DD MSA, Open ZR+ MSA and OIF 400ZR industry standards, it integrates a 7nm coherent DSP ASIC, ultra-narrow linewidth tunable laser, high-speed modulator and high-sensitivity coherent receiver, supporting multi-modulation formats including DP-QPSK (100/200G) and DP-16QAM (400G) for flexible rate adaptation.

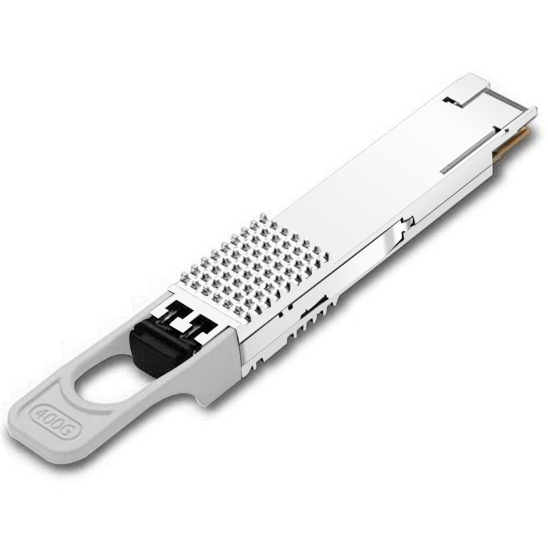

Figure 1 shows the front panel of 400G QSFP-DD OPEN High Tx Power ZR+.

TS-QD-CO4H-ZRPP/400G QSFP-DD Open ZR+ Transceiver | High Tx Power for DCI & Metro Networks
TS-QD-CO4H-ZRPP/400G QSFP-DD Open ZR+ Transceiver | High Tx Power for DCI & Metro Networks





Quick Specs.

Table 1 shows the Quick Specs

Parameter Specification
Form Factor QSFP-DD
Data Rate 400Gbps
Tx Power Max +4dBm (C-Band,193.7THz)
Wavelength Band C-Band Tunable
Transmission Reach Up to 480km (SMF)
Connector Duplex LC
Operating Temp 0~70℃
Power Supply 3.3V DC





Detailed Specification
Category Parameter Min Typ Max Unit Note
Data Rate Line Rate - 400 - Gbps Support 100/200/300Gbps

Client Rate - 4x100/1x400 - Gbps 100GbE/400GbE compliant
Optical Tx Output Power (C-Band) -10 - +1 dBm Tunable

Output Power (193.7THz) 3 4 5 dBm 400G gray light mode

Power Adjust Step - 0.1 - dB Fine tuning

Wavelength Grid Spacing - 50/75/100 - GHz 0.1GHz fine turning support
Optical Rx Receiver Sensitivity - < -20 - dBm Coherent receiver
Transmission Max Reach (SMF) - 480 - km No inline dispersion compensation
Electrical Power Consumption (400GbE) - 22 22.5 W Single 3.3V supply

ESD Protection 1000 - - V Electrostatic discharge
Mechanical Dimensions (L×W×H) - 18.4×93.4×8.5 - mm QSFP-DD MSA compliant

Connector Type - Duplex LC - - Hot-pluggable
Environmental Operating Temperature 0 - 70 ℃ Commercial grade

Relative Humidity 15 - 85 % Non-condensing
Compliance FEC Support - OFEC/CFEC - - Error correction

MSA Compliance - QSFP-DD/Open ZR+/OIF 400ZR - - Industry standard

RoHS Compliance - RoHS 2 - - Environmental standard
