C9K-PWR-650WAC-R, Cisco Catalyst 9000 Power Supply, 650W AC/Rear to Front/Cooling
C9K-PWR-650WAC-R, Cisco Catalyst 9000 Power Supply, 650W AC/Rear to Front/Cooling
C9K-PWR-650WAC-R, Cisco Catalyst 9000 Power Supply, 650W AC/Rear to Front/Cooling
C9K-PWR-650WAC-R, Cisco Catalyst 9000 Power Supply, 650W AC/Rear to Front/Cooling
C9K-PWR-650WAC-R, Cisco Catalyst 9000 Power Supply, 650W AC/Rear to Front/Cooling
C9K-PWR-650WAC-R, Cisco Catalyst 9000 Power Supply, 650W AC/Rear to Front/Cooling
Specifications
Brand Name :
Cisco
Model Number :
C9K-PWR-650WAC-R
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
Switch
Part Number :
C9K-PWR-650WAC-R
Payment :
TT
Shipment :
DHL
Condition :
New
Lead Time :
2-3days
Warranty :
1 year
Keywords :
C9K-PWR-650WAC-R
Description

Cisco C9K-PWR-650WAC-R Overview

The Cisco C9K-PWR-650WAC-R is a robust 650W AC Power Supply designed to ensure reliable and efficient power delivery for Cisco's network devices. This power supply is engineered to complement Cisco's extensive portfolio, providing enhanced operational efficiency and resilience for critical networking environments.

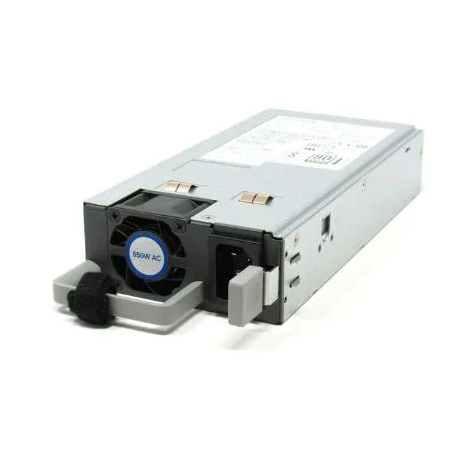

Figure 1 shows the front panel of C9K-PWR-650WAC-R.
C9K-PWR-650WAC-R, Cisco Catalyst 9000 Power Supply, 650W AC/Rear to Front/Cooling




Quick Specs

Table 1 shows the Quick Specs.

Brand Cisco
Model C9K-PWR-650WAC-R
Power Capacity 650W
Input Voltage 100-240V AC
Output Voltage 12V DC








Supported Options

Accessory Model
Power Cord CAB-AC
Power Supply Module PSM450BR
Rack Mount Kit RCKMT-19-CMPCT










Compare to Similar Items

Model Key Differences
C9K-PWR-1600WAC-R Higher power capacity of 1600W
PWR-C1-715WAC Lower power capacity of 715W, designed for Catalyst 3850 Series
C9K-PWR-930WAC-R Moderate power capacity of 930W, suitable for different series




Cisco C9K-PWR-650WAC-R Specification

C9K-PWR-650WAC-R Specifications
Product Type Power Supply
Input Voltage 100-240V AC
Efficiency 85% (typical)
Form Factor RSP1
Compatibility Cisco Catalyst 9500 Series Switches
Cooling Active (Integrated Fan)
Operating Temperature 0° to 45°C
Storage Temperature -40° to 70°C
Humidity 10% to 90% (non-condensing)
Total Harmonic Distortion < 10%
MTBF 200,000 hours
Protection Features Over Voltage, Over Current, Over Temperature
Connector Type IEC 60320 C14
Dimensions (H x W x D) 1.6 x 3.2 x 15.8 inches
Input Current 8A (RMS) at 100-120V, 4A (RMS) at 200-240V
Noise Level 46 dBA
Safety Standards UL/CSA 60950-1, EN60950-1
AC input voltage Nominal range: 100 and 240 VAC (Range: 90-132 VAC, 180-264 VAC)
AC input frequency Nominal range: 50 to 60 Hz (Range: 47-63 Hz)
Maximum AC input current 7.6 A at 90 - 132 VAC, 3.65 A at 180 - 264 VAC
Maximum input volt Amperes 760 VA at 100 VAC
Maximum output power per power supply 650 W
Maximum in-rush current 11 A (sub-cycle duration)
Maximum hold-up time 12 ms at 650 W
Power supply output voltage 12 VDC
Power supply standby voltage 12 VDC
Efficiency rating Climate Savers Platinum Efficiency (80Plus Platinum certified)
