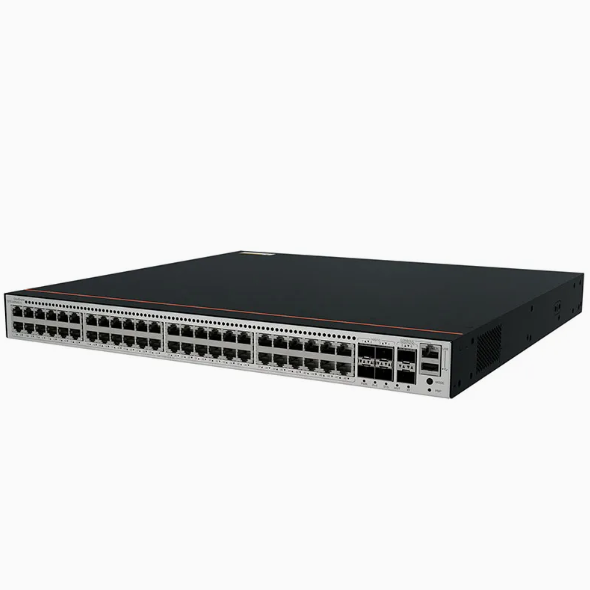

Huawei CloudEngine S5735-S48PN4XE-V2 48-Port PoE+ Gigabit Switch with 10GE Uplink
Huawei CloudEngine S5735-S48PN4XE-V2 48-Port PoE+ Gigabit Switch with 10GE Uplink
Huawei CloudEngine S5735-S48PN4XE-V2 48-Port PoE+ Gigabit Switch with 10GE Uplink
Huawei CloudEngine S5735-S48PN4XE-V2 48-Port PoE+ Gigabit Switch with 10GE Uplink
Huawei CloudEngine S5735-S48PN4XE-V2 48-Port PoE+ Gigabit Switch with 10GE Uplink
Huawei CloudEngine S5735-S48PN4XE-V2 48-Port PoE+ Gigabit Switch with 10GE Uplink
Specifications
Brand Name :
Huawei
Model Number :
S5735-S48PN4XE-V2
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
Switch
Part Number :
S5735-S48PN4XE-V2
Payment :
TT
Shipment :
DHL
Condition :
New
Lead Time :
2-3days
Warranty :
1 year
Keywords :
S5735-S48PN4XE-V2
Description

Huawei S5735-S48PN4XE-V2 Overview

The Huawei CloudEngine S5735-S48PN4XE-V2 is a high-performance Layer 3 PoE+ switch designed for enterprise campus and aggregation networks. It provides 48 PoE+ Gigabit ports to power IP phones, wireless APs, and surveillance cameras, plus 4×10GE SFP+ uplinks and 2×12GE stack ports for high-bandwidth connectivity and flexible expansion

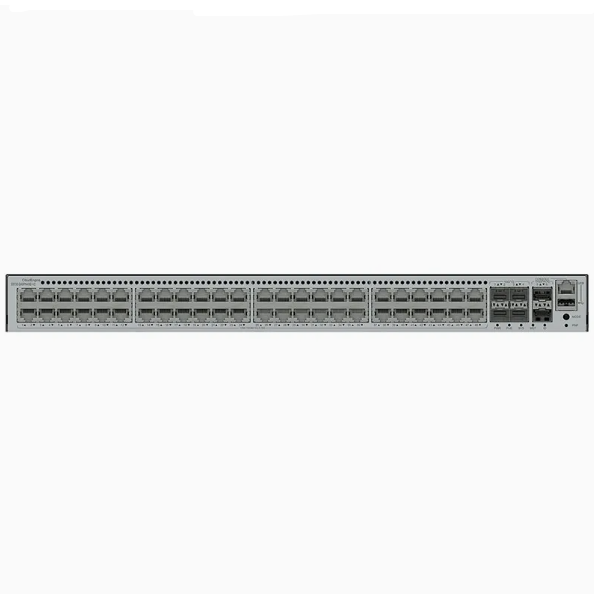

Figure 1 shows the front panel of S5735-S48PN4XE-V2.
Huawei CloudEngine S5735-S48PN4XE-V2 48-Port PoE+ Gigabit Switch with 10GE Uplink
Huawei CloudEngine S5735-S48PN4XE-V2 48-Port PoE+ Gigabit Switch with 10GE Uplink





Quick Specs
Item Specification
Model S5735-S48PN4XE-V2
Ports 48×10/100/1000BASE-T PoE+, 4×10GE SFP+, 2×12GE Stack
PoE PoE+ (30W per port)
Switching Capacity 672 Gbps/6.72 Tbps
Forwarding Rate 315 Mpps
Power N+1 redundancy










Huawei S5735-S48PN4XE-V2 Specification

Parameter Details
Model Number CloudEngine S5735-S48PN4XE-V2
Product Type Layer 3 Gigabit Ethernet Switch
Switching Capacity 672 Gbps (device), 6.72 Tbps (system)
Forwarding Performance 315 Mpps
Fixed Ports 48 × 10/100/1000BASE-T PoE+ Ethernet ports

4 × 10GE SFP+ ports

2 × 12GE dedicated stack ports
PoE Standard IEEE 802.3af/at (PoE+), up to 30W per port
MAC Address Table Up to 128K entries
VLAN 4K VLANs, Voice VLAN, MUX VLAN
IP Routing Static, RIP, OSPF, IS-IS, BGP, VRRP
Security 802.1X, ACL, Storm Control, MACsec
Power Supply N+1 redundancy, hot-swappable AC/DC modules
Dimensions (W×D×H) 442 mm × 420 mm × 43.6 mm
Operating Temperature 0°C to 45°C
Applications Campus access, enterprise aggregation, PoE-powered devices
