Huawei PDC400S12-CB 400W 12V DC Power Module Hot Swap for S620 Switch
Huawei PDC400S12-CB 400W 12V DC Power Module Hot Swap for S620 Switch
Huawei PDC400S12-CB 400W 12V DC Power Module Hot Swap for S620 Switch
Huawei PDC400S12-CB 400W 12V DC Power Module Hot Swap for S620 Switch
Huawei PDC400S12-CB 400W 12V DC Power Module Hot Swap for S620 Switch
Huawei PDC400S12-CB 400W 12V DC Power Module Hot Swap for S620 Switch
Specifications
Brand Name :
HUAWEI
Model Number :
PDC400S12-CB
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
DC Power Module
Part Number :
PDC400S12-CB
Payment :
TT
Shipment :
DHL
Condition :
New
Lead Time :
2-3days
Warranty :
1 year
Keywords :
PDC400S12-CB
Description

HUAWEI PDC400S12-CB Overview

The Huawei PDC400S12-CB is a 400W 12V DC power module designed for high-reliability networking equipment, primarily the Huawei S620 switch series. It accepts a wide ±48V DC input (40–57V / -38.4~-72V) and delivers a stable 12V DC output at 8.3A. The module features hot-swap capability for non-disruptive replacement, fan cooling for efficient heat dissipation, and comprehensive protection mechanisms. With a compact 66×40×215mm form factor and 840g weight, it integrates seamlessly into standard rack-mounted systems. Built to industrial-grade standards, it ensures stable performance in data center and telecom environments, supporting continuous operation and system uptime.

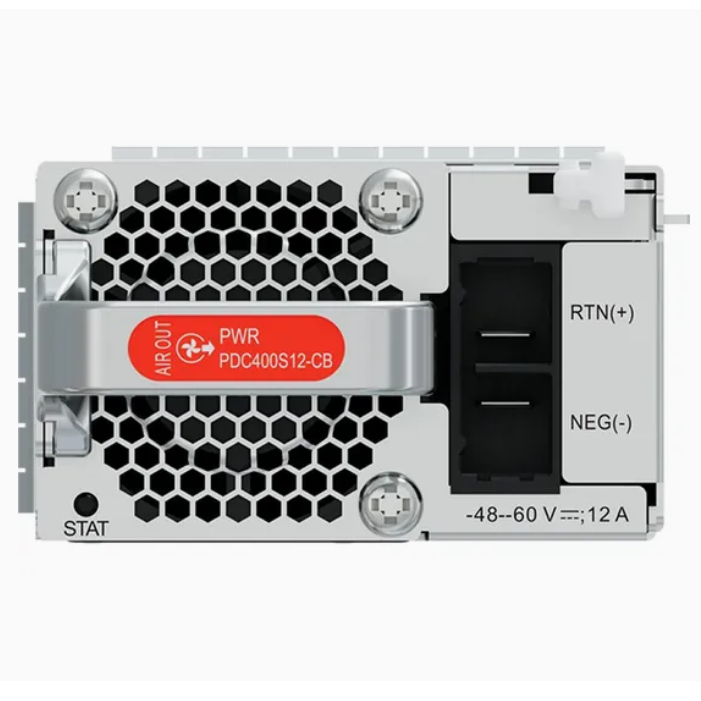

Figure 1 shows the front panel of PDC400S12-CB.
Huawei PDC400S12-CB 400W 12V DC Power Module Hot Swap for S620 Switch
Huawei PDC400S12-CB 400W 12V DC Power Module Hot Swap for S620 Switch




Quick Specs

Table 1 shows the Quick Specs.

Item Specification
Model PDC400S12-CB
Brand Huawei
Input Voltage ±48V DC (40–57V / -38.4~-72V)
Output Power 400W
Output Voltage 12V DC
Output Current 8.3A
Cooling Fan-cooled
Hot Swap Supported
Dimensions 66×40×215 mm
Weight 840g






HUAWEI PDC400S12-CB pecification

Parameter Details
Input
Input Voltage Range +48V DC: 40V–57V DC; -48V DC: -38.4V–-72V DC
Input Connector DC power terminal
Output
Output Power 400W
Output Voltage 12V DC
Output Current 8.3A
Voltage Regulation ±1%
Ripple & Noise <150mV
Mechanical
Form Factor Plug-in module
Dimensions (W×H×D) 66 mm × 40 mm × 215 mm
Weight 840 g
Mounting Front/rear panel mount
Environmental
Operating Temperature -10°C to +55°C
Storage Temperature -40°C to +70°C
Relative Humidity 5%–95% (non-condensing)
Features
Cooling Method Fan-assisted cooling
Hot Swap Yes
Protection Over-voltage, over-current, over-temperature
Compliance RoHS, CE
Application Huawei S620 series switches
