475266A (ABIO) A Nokia AirScale High-capacity 5G System Module Plug-in Unit
475266A (ABIO) A Nokia AirScale High-capacity 5G System Module Plug-in Unit
475266A (ABIO) A Nokia AirScale High-capacity 5G System Module Plug-in Unit
475266A (ABIO) A Nokia AirScale High-capacity 5G System Module Plug-in Unit
475266A (ABIO) A Nokia AirScale High-capacity 5G System Module Plug-in Unit
475266A (ABIO) A Nokia AirScale High-capacity 5G System Module Plug-in Unit
475266A (ABIO) A Nokia AirScale High-capacity 5G System Module Plug-in Unit
475266A (ABIO) A Nokia AirScale High-capacity 5G System Module Plug-in Unit
475266A (ABIO) A Nokia AirScale High-capacity 5G System Module Plug-in Unit
475266A (ABIO) A Nokia AirScale High-capacity 5G System Module Plug-in Unit
475266A (ABIO) A Nokia AirScale High-capacity 5G System Module Plug-in Unit
475266A (ABIO) A Nokia AirScale High-capacity 5G System Module Plug-in Unit
Specifications
Brand Name :
Nokia
Model Number :
475266A (ABIO)
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Payment Terms :
T/T,Western Union
Delivery Time :
1-3 Days
Brand :
Nokia
Model :
475266A (ABIO)
Warranty :
3 Months
Condition :
Used
Type :
RRU
Usage :
Base Station
Origin :
China
Lead Timie :
1-3 Days
Description
Overview

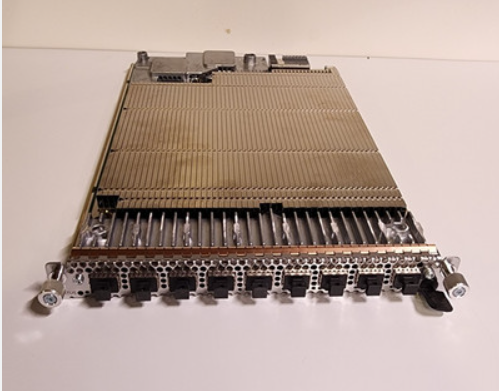

The 475266A (ABIO) is a Nokia AirScale high-capacity 5G system module plug-in unit . Its dimensions are 25 mm x 219 mm x 364 mm, it weighs 2.65 kg, and it operates within a temperature range of -5°C to +55°C. It also supports both LTE and 5G NR narrowband cells, including up to 48 cells in a 2T2R or 4T4R configuration.

475266A (ABIO) A Nokia AirScale High-capacity 5G System Module Plug-in Unit 475266A (ABIO) A Nokia AirScale High-capacity 5G System Module Plug-in Unit

Key specifications
  • Throughput: 14 Gbps (downlink) / 7 Gbps (uplink)
  • RRC Users: 15,120
  • 5G NR Capacity: Up to 12 cells of 100 MHz bandwidth (wideband)
  • LTE/5G NR Narrowband Capacity: Up to 48 cells in a 2T2R or 4T4R configuration
  • mMIMO: 32DL/16UL layers
  • Dimensions: 25 mm (H) x 219 mm (W) x 364 mm (D)
  • Weight: 2.65 kg
  • Power Consumption:
    • Typical: 160W
    • Maximum: 270W
  • Operational Temperature: -5°C to +55°C
  • Environmental Protection: IP20, ETSI EN 300 019-1-3, class 3.1E
  • Fronthaul Interface: Supports eCPRI (10/25 Gbps), CPRI (up to 9.8 Gbps), and OBSAI (3/6 Gbps)
  • 475266A (ABIO) A Nokia AirScale High-capacity 5G System Module Plug-in Unit
