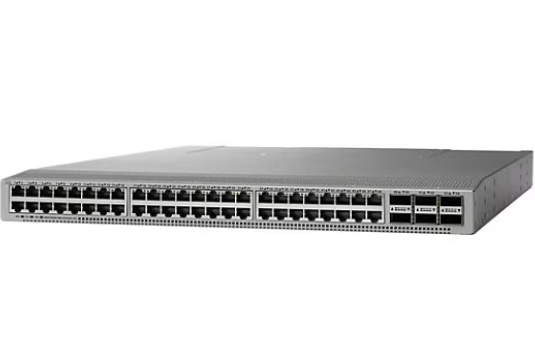

N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec
N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec
N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec
N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec
N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec
N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec
N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec
N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec
N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec
N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec
N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec
N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec
Specifications
Brand Name :
Cisco
Model Number :
N9K-C93108TC-FX
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Payment Terms :
T/T,Western Union
Delivery Time :
1-3 Days
Model :
N9K-C93108TC-FX
Switch Series :
Cisco Nexus 93108TC-FX
Downlink Speeds :
100Mbps, 1Gbps, 10Gbps
System Memory :
24GB
Power Supplies :
Dual 500W AC / 930W DC / 1200W HVAC / HVDC
Max Power Consumption :
460W (AC/DC)
CPU :
4-core processor
Storage :
128GB SSD
Warranty :
1 Year
Condition :
Brand New
Lead Time :
3 Days
Description

N9K-C93108TC-FX Overview


The Cisco Nexus 93108TC-FX Switch is a 1RU switch that supports 2.16 Tbps of bandwidth and over 1.25bpps. The 48 10GBASE-T downlink ports on the 93108TC-FX can be configured to work as 100-Mbps, 1-Gbps, or 10-Gbps ports. The uplink can support up to six 40- and 100-Gbps ports, or a combination of 1-, 10-, 25-, 40, 50-, and 100-Gbps connectivity, offering flexible migration options.

N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsecN9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec

Quick Spec

Table 1 shows the quick specs of N9K-C93108TC-FX.

Model N9K-C93108TC-FX
Physical dimensions
(H x W x D)		 1.72 x 17.3 x 22.5 in.
(4.4 x 43.9 x 57.1 cm)
MTBF 319,790 hours
CPU 4 cores
System memory
 24 GB
Ports
  • Downlink Ports: 48 x 10 Gigabit Ethernet (10GBASE-T) ports, which can also support 100Mbps, 1Gbps, and 10Gbps speeds.

  • Uplink Ports: 6 x 40/100 Gigabit QSFP28 ports.

Performance

  • Switching Capacity: 2.16 Tbps.
  • Forwarding Rate: 1.44 Bpps (Billion packets per second).
  • MAC Address Table Size: 512,000 entries.
  • Buffer Memory: 40 MB shared buffer.
  • Latency: Under 1 microsecond (port-to-port).
Key Features

  • Form Factor: 1U rack-mountable.
  • Architecture: Cisco Nexus 9000 platform built on modern system architecture.
  • Security: MACsec encryption on all ports.
  • Scalability: Designed for highly scalable data centers and supporting a large number of endpoints.
  • Flexibility: Offers flexible port-speed configurations for migration.
  • Management: Supports Cisco NX-OS software, CLI, and DCNM.
Physical and Environmental
  • Dimensions: 1.72 x 17.3 x 22.5 inches (4.4 x 43.9 x 57.2 cm).

  • Power: Dual redundant, hot-swappable power supplies.

  • Airflow: Supports port-side intake and exhaust, and front-to-back airflow.
