Specifications
Brand Name :
Huawei
Model Number :
P/N:LRKVM-080119
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
Switch
Part Number :
P/N:LRKVM-080119
Payment :
TT
Shipment :
DHL
Condition :
New
Lead Time :
2-3days
Warranty :
1 year
Keywords :
P/N:LRKVM-080119
Description
8-Port x1 User VGA 1U Rack-Mount USB KVM Switch with 19" LED, 8 x VGA Cables Included

The KVM console integrates multiple port KVM switches in a 1U height console. It can control multiple computers with a set of device including monitor, keyboard and mouse, thus saves much cost and space to separately equip keyboard, mouse and monitor for every computer.

It is easy and fast to install the KVM console, you just need to connect corresponding cables to the right ports of KVM and its module without software configuration. The KVM console can control up to 8 or 16 computers, supports multiple hardware platform and multiple operating system.


Benefits
  • 19″ LCD TFT Monitor, High Brightness, High Resolution
  • 1U Height, Suitable Height for Standard 19” Rack Mount, Metal Structure
  • Ultra Slim 99 Keys Keyboard with Small Numeric Keyboard
  • High Resolution and High Flexibility with Touchpad; with Two Function Buttons and Scroll Wheel

Quick Specs

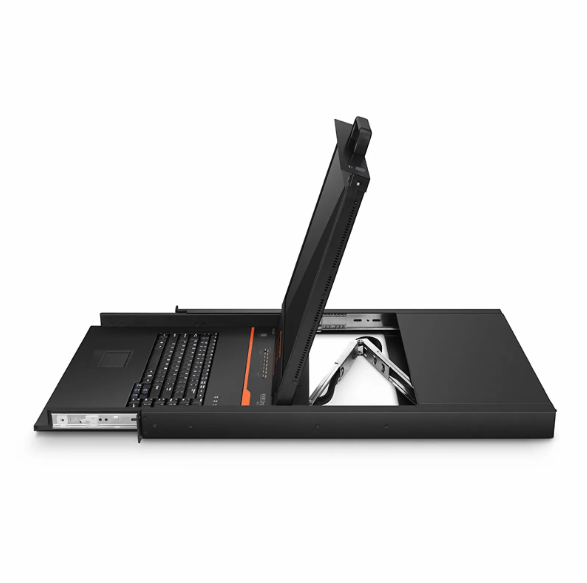

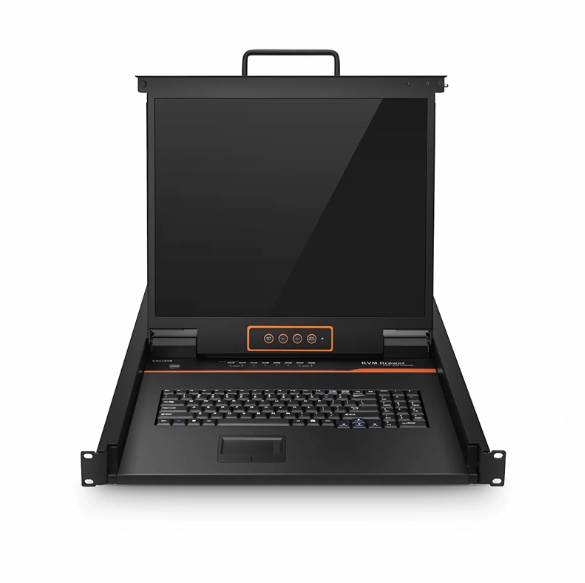

Figure shows the appearance of Rack-Mount USB KVM Switch.

8-Port x1 User VGA 1U Rack-Mount USB KVM Switch with 19

8-Port x1 User VGA 1U Rack-Mount USB KVM Switch with 19


Specifications
Function KVM-080119 KVM-160119
Computer connections Direct 8 16
Max 256 512
Port emulation Keyboard, mouse USB
LCD monitor LED model SXGA TFT
View area 19″
Optimum resolution 1280×1024@60Hz
Display color 16.7 M
Brightness 250cd/m²( T y p )
Contrast ratio 1000 : 1 ( T y p )
Pixel pitch(mm) 0.2928(H) × 0.2928(W)
Mouse X/Y resolution >1000 points /inch,( 40 points/mm )
Roll wheel Supports scroll wheel function
Keyboard
99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection
Front panel pushbuttons,hotkeys,OSD menu
Input power 100V- 240Vac , 50-60Hz , <1.5A
Power consumption 21W 23W
Operating temperature 0 - 50 ℃
Store temperature -20 - 60 ℃
Humidity 0-80% RH, non condensing
Net weight 13.3kg 13.5kg
Product dimension (W × D × H) 448mm×605mm×42.5mm
Package dimension (W × D × H) 765mm×615mm×
Package dimension (W × D × H)
185mm
Optional power input -36V— -72V DC


Ports
Ports Description
Power Input(AC) A power input port for the AC power cord
Power Switch Turn on/off the power
Ground Connection Screw For grounding the KVM switch, enhancing safety and reducing the risk of electrical issues or damage to the equipme
8x VGA PC Connecting Ports Connect to the computer or server, supports VGA video input
Monitor Port 1. Connect to a monitor for local control to configure the KVM switch itself or the connected devices. 2. Daisy-chaining KVM switches. By connecting this port to the Yellow "Daisy-chain in" DB 15 port, other KVM switches can be connected to the current KVM switch, allowing for device expansion or more complex configurations.
2x USB Console Ports 1. USB peripherals can be used to install software, OS patches, or make system backups to computers connected to the installation from the KVM-080119 2. Allows each computer to access USB peripherals 3. Connect to the external keyboard and mouse
Daisy-chain in Port Daisy-chaining KVM switches. By connecting this port to the Blue "CONSOLE" DB 15 port, other KVM switches can be connected to the current KVM switch, allowing for device expansion or more complex configurations.
