Cisco Nexus 9000 Series N9K-C93108TC-FX Optical Transceiver Module
Cisco Nexus 9000 Series N9K-C93108TC-FX Optical Transceiver Module
Specifications
Brand Name :
CISCO
Model Number :
N9K-C93108TC-FX
Certification :
ce
Place of Origin :
china
MOQ :
1
keyword :
N9K-C93108TC-FX
CPU :
4 cores
System memory :
24 GB
SSD drive :
128 GB
Codition :
new
System buffer :
40 MB
Management ports :
2 ports: 1 RJ-45 and 1 SFP+
Type :
Voltage Regulator,Logic ICs
Description

Cisco Nexus 9000 Series N9K-C93108TC-FX

N9K-C93108TC-FX Overview

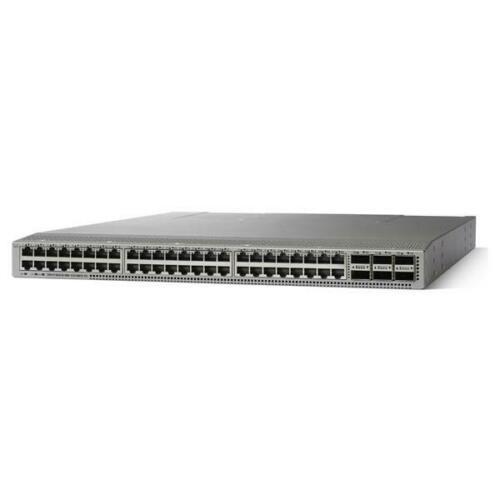

The Cisco N9K-C93108TC-FX Switch is a 1RU switch that supports 2.16 Tbps of bandwidth and over 1.25bpps. The 48 10GBASE-T downlink ports on the 93108TC-FX can be configured to work as 100-Mbps, 1-Gbps, or 10-Gbps ports. The uplink can support up to six 40- and 100-Gbps ports, or a combination of 1-, 10-, 25-, 40, 50-, and 100-Gbps connectivity, offering flexible migration options.

Quick Specs

Table 1 shows the Specs.

SKU N9K-C93108TC-FX
CPU 4 cores
System memory 24 GB
SSD drive 128 GB
System buffer 40 MB
Management ports 2 ports: 1 RJ-45 and 1 SFP+
USB ports 1
RS-232 serial ports 1
Power supplies (up to 2) 500W AC, 930W DC, or 1200W HVAC/HVDC
RS-232 serial ports 1

Product Details

Cisco N9K-C93108TC-FX provides the following features:

â‘ Architectural Flexibility

â‘¡ Architectural Flexibility

â‘¢ High Scalability, Flexibility, and Security

â‘£ Intelligent Buffer Management

⑤ RDME over Converged Ethernet – RoCE Support

â‘¥ LAN and SAN Convergence

⑦ Hardware and Software High Availability

⑧ Purpose-Built Cisco NX-OS Software Operating System with Comprehensive, Proven Innovations

⑨Cisco Tetration Analytics Platform Support

â‘©Cisco Network Assurance Engine (NAE)

Compare to Similar Items

Table 2 shows the comparison.

Product Name N9K-C93108TC-FX N9K-C93180YC-FX N9K-C9348GC-FXP
Ports 48 x 100M/1/10GBASE-T and 6 x 40/100-Gbps QSFP28 ports 48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports 48 x 1-GBASE-T ports, 4 x 1/10/25-Gbps SFP28 ports and 2 x 40/100 QSFP28 ports
CPU 4 cores 6 cores 4 cores
System memory 24 GB Up to 32 GB 24 GB
SSD drive 128 GB 128 GB 128 GB
System buffer 40 MB 40 MB 40 MB
USB ports 1 1 1
RS-232 serial ports 1 1 1

N9K-C93108TC-FX Specification

N9K-C93108TC-FX Specification
Hardware performance and scalability
Ports 48 x 100M/1/10GBASE-T and 6 x 40/100-Gbps QSFP28 ports
Downlink supported speeds 100-Mbps and 1/10-Gbps speeds
CPU 4 cores
System memory 24 GB
SSD drive 128 GB
System buffer 40 MB
Management ports 2 ports: 1 RJ-45 and 1 SFP+
USB ports 1
RS-232 serial ports 1
Power supplies (up to 2) 500W AC, 930W DC, or 1200W HVAC/HVDC
Typical power (AC/DC) 276W
Maximum power (AC/DC) 460W
Input voltage (AC) 100 to 240V
Input voltage
(High-Voltage AC [HVAC])		 200 to 277V
Input voltage (DC) –48 to –60V
Input voltage
(High-Voltage DC [HVDC])		 –240 to –380V
Frequency (AC) 50 to 60 Hz
Fans 4
Airflow Port-side intake and exhaust
Physical dimensions
(H x W x D)		 1.72 x 17.3 x 22.5 in.
(4.4 x 43.9 x 57.1 cm)
Acoustics 64.2 dBA at 40% fan speed, 68.9 dBA at 70% fan speed, and 77.8 dBA at 100% fan speed
RoHS compliance Yes
MTBF 319,790 hours
Environmental properties
Operating temperature 32 to 104°F (0 to 40°C)
Nonoperating (storage) temperature –40 to 158°F (–40 to 70°C)
Humidity 5 to 95% (noncondensing)
Altitude 0 to 13,123 ft (0 to 4000m)

Cisco Nexus 9000 Series N9K-C93108TC-FX Optical Transceiver Module

Cisco Nexus 9000 Series N9K-C93108TC-FX Optical Transceiver Module

Cisco Nexus 9000 Series N9K-C93108TC-FX Optical Transceiver Module

Cisco Nexus 9000 Series N9K-C93108TC-FX Optical Transceiver Module
