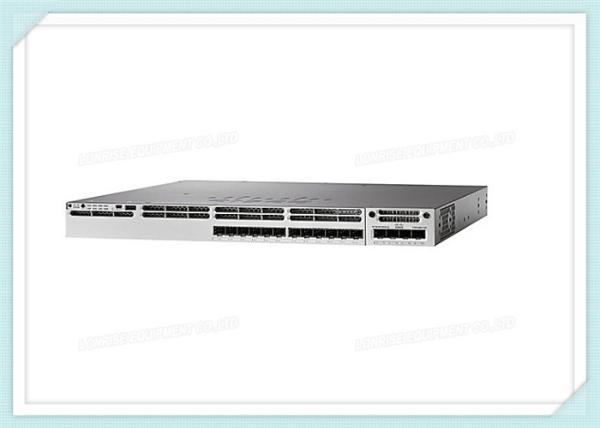

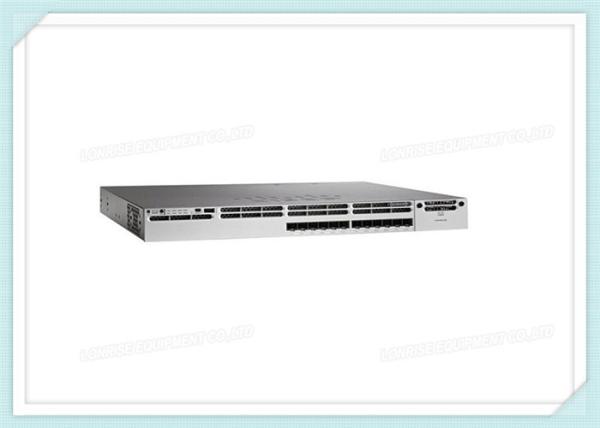

Cisco Switch WS-C3850-16XS-E Catalyst 3850 16-Port SFP+ 350 W Power Supply Network Switch
Cisco Switch WS-C3850-16XS-E Catalyst 3850 16-Port SFP+ 350 W Power Supply Network Switch
Cisco Switch WS-C3850-16XS-E Catalyst 3850 16-Port SFP+ 350 W Power Supply Network Switch
Cisco Switch WS-C3850-16XS-E Catalyst 3850 16-Port SFP+ 350 W Power Supply Network Switch
Specifications
Brand Name :
Cisco
Model Number :
WS-C3850-16XS-E
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
Western Union, Paypal,T/T
Supply Ability :
1000 Pcs /Month
Delivery Time :
1~2 days
Packaging Details :
New in box
Brand :
Cisco
Parts Number :
WS-C3850-16XS-E
Ports :
12 SFP+ ports and 4 10G SFP ports (C3850-NM-4-10G)
Stack bandwidth :
480 Gbps
Description

Cisco Catalyst 3850 16-port SFP+ transceiver 1 network module slot support for up to 10 G SFP+ 350 W power supply

WS-C3850-16XS-E Overview

Cisco WS-C3850-16XS-E supports 12 SFP+ port stackable model, with C3850-NM-4-10G module and 350WAC power supply. 1 RU, and IP Servuces feature set. Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data™ Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise®-480 technology.

Cisco Switch WS-C3850-16XS-E Catalyst 3850 16-Port SFP+ 350 W Power Supply Network Switch

WS-C3850-16XS-E Specification

WS-C3850-16XS-E Specification

Capacity

64 Wireless LANs

Dimensions & Weight

Width: 17.5 in

Depth: 17.7 in

Height: 1.8 in

Weight: 12.79 lbs

Environmental Parameters

Min Operating Temperature: 23 °F

Max Operating Temperature: 113 °F

Humidity Range Operating: 10 - 95% (non-condensing)

Min Storage Temperature: -40 °F

Max Storage Temperature: 158 °F

Switching capacity

320 Gbps

RAM

4GB

Flash Memory

4GB

Interface Provided

Qty: 4

Type: Management (mini-USB)

Connector Type: Type B

Comments: Management

Miscellaneous

Compliant Standards: AS/NZS 3548 Class A, AS/NZS CISPR 22, BSMI Class A, CAN/CSA C22.2 No. 60950-1,

CCC, CISPR 22 Class A, CISPR 24, CNS 13438, EN 300386, EN 55022 Class A, EN 60950-1, EN 60950-1

Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5,

EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15, FCC Part 15 A, ICES-003 Class A,

IEC 60950-1, IEC 60950-1 Second Edition, KCC, KN22 Class A, KN24, NOM, RoHS 5/6, UL 60950-1,

UL 60950-1 Second Edition, VCCI Class A

Authentication Method: Kerberos, RADIUS, Secure Shell (SSH), TACACS+

MTBF: 371,440 hours

Height (Rack Units): 1U

Software

Cisco IOS IP Services

Power Device

Frequency Required: 50 - 60 Hz

Power Provided: 350 Watt

Installed Qty: 1

Max Supported Qty: 2

Nominal Voltage: AC 120/230 V

Power Redundancy: Optional

Power Redundancy Scheme: 1+1 (with optional power supply)

Type: Internal power supply
