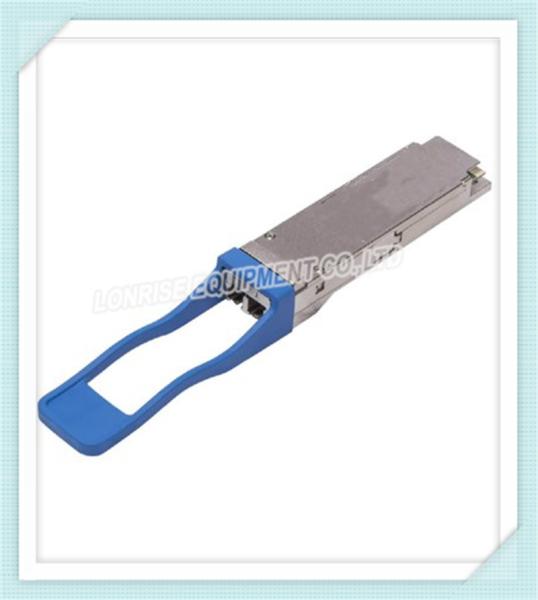

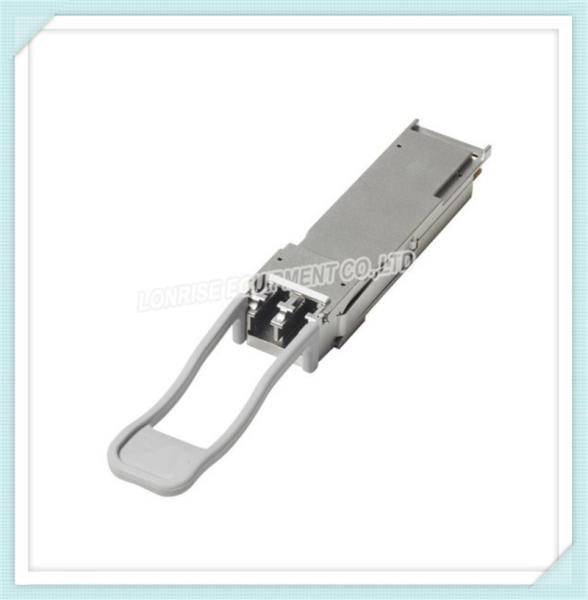

Compatible QSFP28-50G-ER-BIDI 1310nm 40km DOM Transceiver Module Customized Support
Compatible QSFP28-50G-ER-BIDI 1310nm 40km DOM Transceiver Module Customized Support
Compatible QSFP28-50G-ER-BIDI 1310nm 40km DOM Transceiver Module Customized Support
Compatible QSFP28-50G-ER-BIDI 1310nm 40km DOM Transceiver Module Customized Support
Compatible QSFP28-50G-ER-BIDI 1310nm 40km DOM Transceiver Module Customized Support
Compatible QSFP28-50G-ER-BIDI 1310nm 40km DOM Transceiver Module Customized Support
Specifications
Brand Name :
LR
Model Number :
QSFP28-50G-ER-BIDI
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000 PCS/MONTH
Delivery Time :
1-2 days
Packaging Details :
SEALED IN BAG
Product model :
QSFP28-50G-ER-BIDI
Form Factor :
QSFP28
Max Data Rat53.125Gbpse :
53.125Gbps
LR P/N :
HXQ50ERBD
Max Cable Distance :
40km
Wavelength :
1310nm
Warranty :
1 year warranty
Application :
50GBASE Ethernet, 5G Network Mid/Backhaul
Connector :
LC duplex
Power Consumption :
<4.5W
Modulation Format :
PAM4
Description

Overview

50GBASE-ER QSFP28 PAM4 Transceiver Module (SMF, 1310nm, 40km, LC, DOM)

Innolight 50G PAM4 LR4 and ER4 modules are designed for 5G mid-haul and back-haul applications. They adopt QSFP28 form factor and LC connector, and compliant with the QSFP28 MSA

Specification

Part Number QSFP28-50G-ER-BIDI Vendor Name LR
Form Factor QSFP28 Max Data Rate 53.125Gbps
Wavelength 1310nm Max Cable Distance 40km
Connector LC duplex Modulation Format PAM4
Transmitter Type EML Receiver Type APD
Media SMF DDM/DOM Supported
TX Power 0.4~6.6dBm Receiver Sensitivity <-15.1dBm
Power Consumption <4.5W Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols MSA Compliant Application 50GBASE Ethernet, 5G Network Mid/Backhaul

Compatible QSFP28-50G-ER-BIDI 1310nm 40km DOM Transceiver Module Customized Support

FAQ

1. How to ship the goods?

Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.

2. What’s your payment term?

We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.

Related products

P/N Product Description Data Sheet Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
HXQ50L QSFP28 LR (PAM4) 50G 1310nm EML PIN -4.5 4.2 -10.3 4.2 4.5 10km 0~70
HXQ50E QSFP28 ER (PAM4) 50G 1310nm EML APD 0.4 6.6 -17.6 -3.4 3.5 40km 0~70
HXQ50LRBD QSFP28 LR BIDI (PAM4) 50G 1310nm EML PIN -4.5 4.2 -10.8 4.2 3.5 10km 0~70
HXQ50ERBD QSFP28 ER BIDI (PAM4) 50G 1310nm EML APD 0.4 6.6 -17.6 -3.4 3.5 40km 0~70
