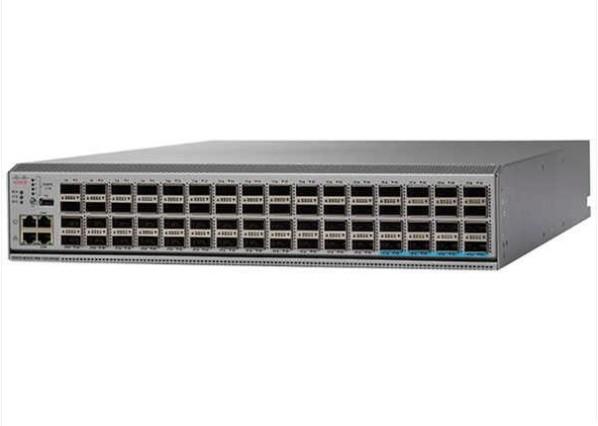

N9K-C92300YC Cisco Nexus 9000 Series Nexus 9200 With 48p 10/25 Gbps And 18p 100G QSFP28
N9K-C92300YC Cisco Nexus 9000 Series Nexus 9200 With 48p 10/25 Gbps And 18p 100G QSFP28
N9K-C92300YC Cisco Nexus 9000 Series Nexus 9200 With 48p 10/25 Gbps And 18p 100G QSFP28
N9K-C92300YC Cisco Nexus 9000 Series Nexus 9200 With 48p 10/25 Gbps And 18p 100G QSFP28
N9K-C92300YC Cisco Nexus 9000 Series Nexus 9200 With 48p 10/25 Gbps And 18p 100G QSFP28
N9K-C92300YC Cisco Nexus 9000 Series Nexus 9200 With 48p 10/25 Gbps And 18p 100G QSFP28
N9K-C92300YC Cisco Nexus 9000 Series Nexus 9200 With 48p 10/25 Gbps And 18p 100G QSFP28
N9K-C92300YC Cisco Nexus 9000 Series Nexus 9200 With 48p 10/25 Gbps And 18p 100G QSFP28
N9K-C92300YC Cisco Nexus 9000 Series Nexus 9200 With 48p 10/25 Gbps And 18p 100G QSFP28
N9K-C92300YC Cisco Nexus 9000 Series Nexus 9200 With 48p 10/25 Gbps And 18p 100G QSFP28
N9K-C92300YC Cisco Nexus 9000 Series Nexus 9200 With 48p 10/25 Gbps And 18p 100G QSFP28
N9K-C92300YC Cisco Nexus 9000 Series Nexus 9200 With 48p 10/25 Gbps And 18p 100G QSFP28
Specifications
Brand Name :
Cisco
Model Number :
N9K-C92300YC
Certification :
CE
Place of Origin :
USA
Model :
N9K-C92300YC
Ports :
48 x 10- and 25-Gbps SFP+ and 18 100-Gbps ports
Supported speeds :
1, 10, and 25 Gbps on SFP+ ports 40, 100 Gbps on QSFP ports
CPU :
2 cores
System memory :
16 GB
Solid-State Disk (SSD) drive :
128 GB
Dimensions :
2.00 x 17.2 x 22.3 in.
Weight :
8.4 kg
Condition :
New Factory Sealed
Warranty :
1 year
Lead time :
2-3 days
Payment :
T/T, Western Union, Paypal
Shipping :
DHL, Fedex, UPS
Description

N9K-C92300YC Overview

N9K-C92300YC is the Nexus 9200 with 48p 10/25 Gbps and 18p 100G QSFP28. Built on the latest Cisco Cloud Scale technology, the Cisco Nexus®9200 platform consists of industry-leading ultra-high-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors. Using the widely deployed industry-leading Cisco NX-OS Software operating system, the Cisco Nexus 9200 platform is designed for programmable fabric, which offers flexibility, mobility, and scale for service providers and Infrastructure-as-a-Service (IaaS) and cloud providers. It is also designed for the programmable network, which automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.

N9K-C92300YC Cisco Nexus 9000 Series Nexus 9200 With 48p 10/25 Gbps And 18p 100G QSFP28

Compare to Similar Items

Product Code N9K-C92304QC N9K-C92300YC
Ports 56 x 40-Gbps QSFP+ and 8 100-Gbps ports 48 x 10- and 25-Gbps SFP+ and 18 100-Gbps ports
Supported speeds 10, 40, and 100 Gbps

1, 10, and 25 Gbps on SFP+ ports

40, 100 Gbps on QSFP ports
Port configuration 56 fixed QSFP+ ports, with breakout of up to 64 x 10-Gbps ports, plus 8 x 100-Gbps ports 48 x 10/25-Gbps ports for downlinks; 100-Gbps for the uplinks

N9K-C92300YC Specification

N9K-C92300YC Specification
Ports 48 x 10- and 25-Gbps SFP+ and 18 100-Gbps ports
Supported speeds

1, 10, and 25 Gbps on SFP+ ports

40, 100 Gbps on QSFP ports
Port configuration 48 x 10/25-Gbps ports for downlinks; 100-Gbps for the uplinks
Telemetry support –
CPU 2 cores
System memory 16 GB
Solid-State Disk (SSD) drive 128 GB
Shared system buffer 30 MB
Management ports 2 ports: 1 RJ-45 and 1SFP
USB ports 1
RS-232 serial ports 1
Power supplies (PSU - up to 2) 650W AC 1200W HVDC (Roadmap)
Typical power (AC)

10G: 216W

25G: 260W
Maximum power (AC) 603W
Input voltage (AC) 100 to 240V
Input voltage (HVAC) 200 to 277V
Input voltage (DC) –40 to –72V DC (minimum and maximum) -48 to –60V DC (nominal)
Input voltage (HVDC) 240 to 380V
Frequency (AC) 50 to 60 Hz
Fans 4
Airflow Port-side intake and exhaust
MTBF (hours) 365,610
Physical (H x W x D) 2.00 x 17.2 x 22.3 in. (5.08 x 43.8 x 56.6 cm)
Acoustics 52.1 dBA at 40% fan speed, 62.0 dBA at 70% fan speed, and 71.5 dB at 100% fan speed
RoHS compliance Yes
Weight 18.6 lb (8.4 kg) (without power supplies or fans)

N9K-C92300YC Cisco Nexus 9000 Series Nexus 9200 With 48p 10/25 Gbps And 18p 100G QSFP28
