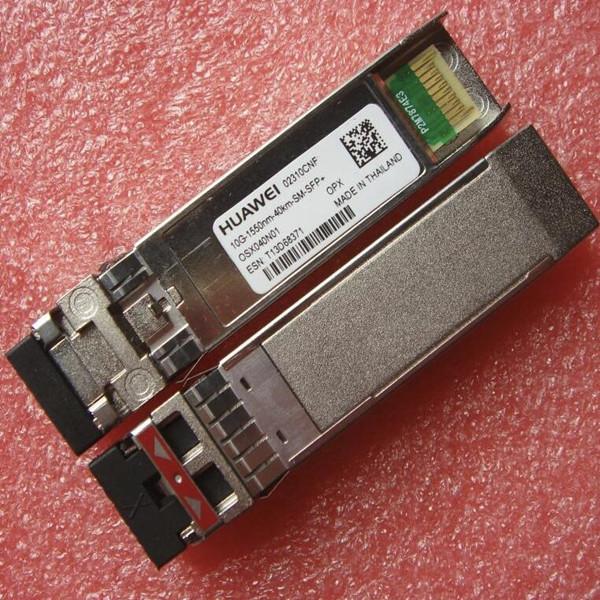

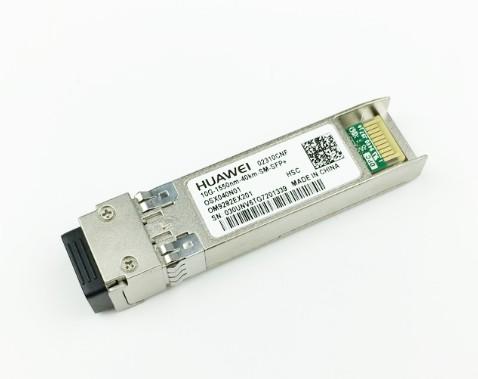

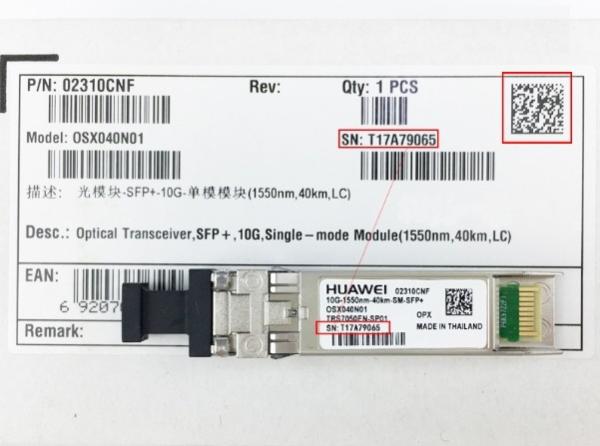

Huawei Optical Transceiver OSX040N01 02310CNF, SFP+, 10G, Single-Mode Module(1550nm,40km,LC)
Huawei Optical Transceiver OSX040N01 02310CNF, SFP+, 10G, Single-Mode Module(1550nm,40km,LC)
Huawei Optical Transceiver OSX040N01 02310CNF, SFP+, 10G, Single-Mode Module(1550nm,40km,LC)
Huawei Optical Transceiver OSX040N01 02310CNF, SFP+, 10G, Single-Mode Module(1550nm,40km,LC)
Huawei Optical Transceiver OSX040N01 02310CNF, SFP+, 10G, Single-Mode Module(1550nm,40km,LC)
Huawei Optical Transceiver OSX040N01 02310CNF, SFP+, 10G, Single-Mode Module(1550nm,40km,LC)
Huawei Optical Transceiver OSX040N01 02310CNF, SFP+, 10G, Single-Mode Module(1550nm,40km,LC)
Huawei Optical Transceiver OSX040N01 02310CNF, SFP+, 10G, Single-Mode Module(1550nm,40km,LC)
Specifications
Brand Name :
Huawei
Model Number :
OSX040N01
Certification :
CE
Place of Origin :
China
Model :
OSX040N01
Standard compliance :
10Gbase-ER
Transmission Medium :
Single-mode
Wavelength :
1550nm
DDM options :
Supported
Warranty :
1 year
Payment :
TT, Western Union, Paypal
Shipping time :
5-7 days
Description

OSX040N01 Overview

Huawei's OSX040N01 is a high-performance SFP+ module designed for 10G Ethernet applications. With a single-mode, 1550nm wavelength and a transmission distance of 40km, this module provides reliable and high-speed connectivity. The LC interface ensures easy and secure plug-and-play installation.

Huawei Optical Transceiver OSX040N01 02310CNF, SFP+, 10G, Single-Mode Module(1550nm,40km,LC)Huawei Optical Transceiver OSX040N01 02310CNF, SFP+, 10G, Single-Mode Module(1550nm,40km,LC)

OSX040N01 Specification

OSX040N01 Specifications
Product Model OSX040N01
Brand Huawei
Form factor SFP+
Data Rate 10G
Transmission Medium Single-mode
Wavelength 1550nm
DDM options Supported
Connector Type LC
Operating Temperature 0°C to 70°C (32°F to 158°F)
Diagnostics Monitoring Supported
Optical Interface Duplex LC
Compatibility Multivendor Compatible
DOM Support Yes
Power Budget 24 dB
Target transmission distance Single-mode fiber: 40 km
Supported Protocols Ethernet, SONET/SDH, Fiber Channel, OTN
Transmission rate 10Gbit/s
Maximum Tx optical power 4.0 dBm
Minimum extinction ratio 3.0 dB
