Product Overview

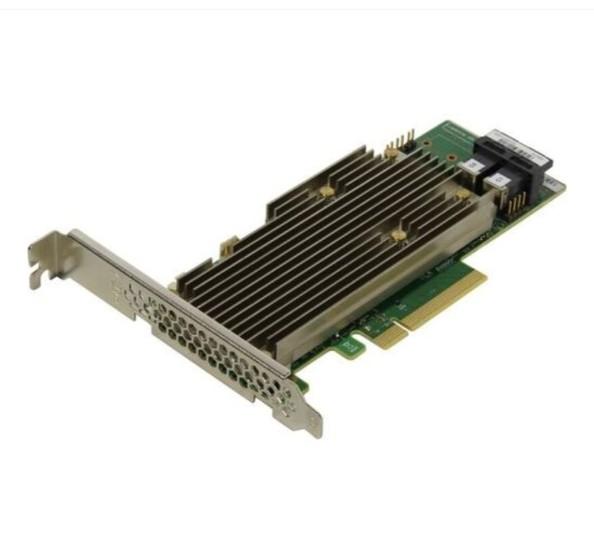

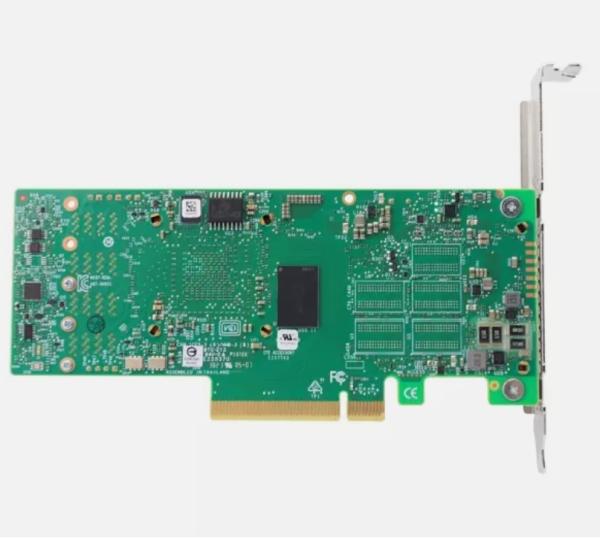

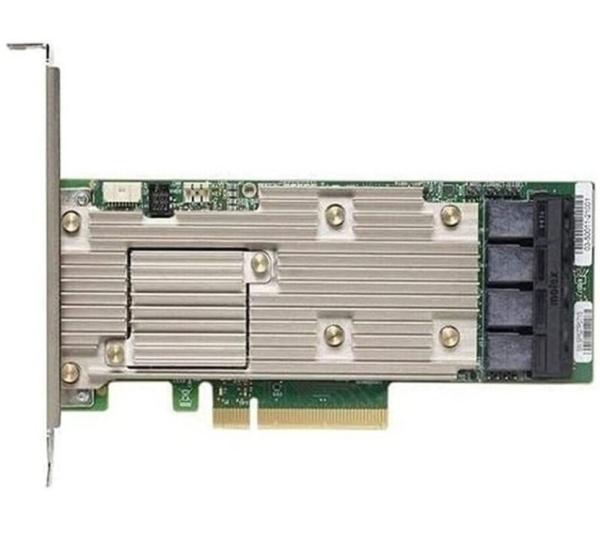

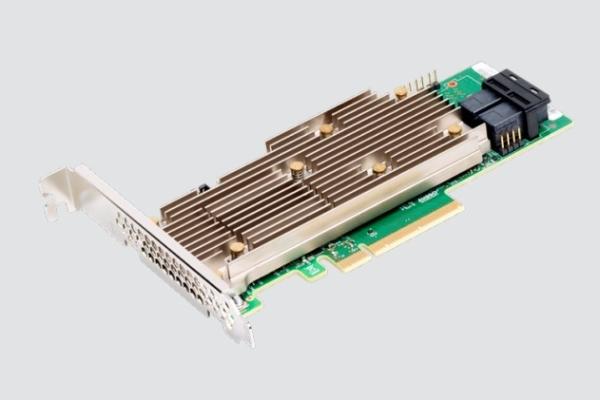

BROADCOM 9560-16i Megaraid 12gb/s Sas/sata/pcie Gen 4.0 (nvme) Tri-mode Raid Controller.

Overview The Megaraid 9500 Series Is The Industry’s First Pcie Gen 4.0 Raid Adapter Family, Offering Pcie Gen 4.0 Host And Storage Interfaces. The Megaraid 9560-8I Adapter, Based On The Sas3908 High-port Count Pcie 4.0 X8 Raid-on-chip (roc), Delivers Twice The Performance Of Previous Generations.

The 9560-16i Is Compatible With Existing Pcie Sff-8639 Module (u.2) Backplanes, Allowing Users To Boost Performance For Today’s Ever-increasing Bandwidth Environments. Coupled With Two Industry Initiatives Expanding The Deployment Of Tri-mode Serdes Technology, Which Enables The Operation Of Nvme, Sas, Or Sata Devices In A Single Drive Bay, The 9560-16i Is Instrumental In Getting The Most Performance And Flexibility Out Of U.3 Backplanes:

• Sff-ta-10001 Specification (u.3), Which Defines A Common Bay Type For Sas, Sata, And Nvme.
• Universal Backplane Management (ubm), Which Defines A Common Backplane Control And Management Framework.

  With Tri-mode Serdes Technology, The Adapter Negotiates Between Speeds And Protocols To Seamlessly Work With Any Of The Three Types Of Storage Devices. Tri-mode Support Provides A Non-disruptive Way To Evolve Existing Data Center Infrastructure.

  Key Features:

  Port Count 16 Internal

  Connectors One X8 Sff-8654

  Host Interface X8 Pcie Gen 4.0

  Storage Interface 12gb/s Sas, 6gb/s Sata, Gen 4.0 Pcie (nvme)

  Controller (roc/ioc) Sas3908

  Raid Levels 0, 1, 10, 5, 50, 6, 60

  Max Devices Per Controller Sas/sata: 240 Nvme: 32

  Cache Size 4 Gb

  Cache Protection Cachevault, Cvpm05

  Raid Features
• Jbod Mode With R0/1/10 And Jbod For Sds Environments
• Online Capacity Expansion (oce)
• Auto Resume After Loss Of System Power During Array Rebuild Or Oce
• Single Controller Multipathing
• Load Balancing
• Configurable Stripe Size Up To 1 Mb
• Fast Initialization For Quick Array Setup
• Check Consistency For Background Data Integrity
• Ssd Support With Ssd Guard™ Technology
• Patrol Read For Media Scanning And Repairing
• 240 Virtual Drive Support (32 For The 9540)
• Ddf Compliant Configuration On Disk (cod)
• S.m.a.r.t. Support
• Global And Dedicated Hot Spare With Revertible Hot Spare Support:
  - Automatic Rebuild
  - Enclosure Affinity
  - Emergency Sata Hot Spare For Sas Arrays
• Enclosure Management:
  - Ses (inband)
  - Sgpio (sideband)
  - Universal Backplane Management (ubm) Ready
• Databolt Bandwidth Optimizer Technology Support For Compatible Expander-based Enclosures
• Shield State Drive Diagnostic Technology
• Megaraid Safestore Software For Sed Key Management

  Management Utilities
• Lsi Storage Authority (lsa)
• Storcli (command-line Interface)
• Hii (uefi Human Interface Infrastructure)

  Os Support Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd.

  Dimensions 6.127 In. × 2.712 In. (155.65 Mm × 68.90 Mm)

  Operating Conditions Operating: 0°c To 55°c, 5 To 90% Non-condensing Storage: -45°c To 105°c, 5 To 95% Non-condensing

  Typical Power 9.64w

  Operating Voltage 12v ±8%, 3.3v ±9%

  Mtbf (calculated) >3,000,000 Hours At 40°c
