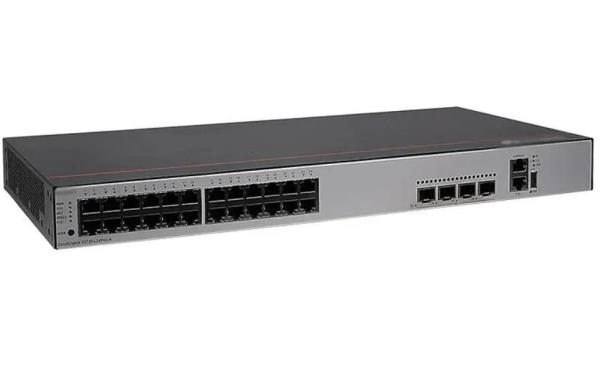

S5735-L24P4S-A Huawei S5735-L Switch 24 X 10/100/1000Base-T Ports 4 X GE SFP Ports PoE+
S5735-L24P4S-A Huawei S5735-L Switch 24 X 10/100/1000Base-T Ports 4 X GE SFP Ports PoE+
S5735-L24P4S-A Huawei S5735-L Switch 24 X 10/100/1000Base-T Ports 4 X GE SFP Ports PoE+
S5735-L24P4S-A Huawei S5735-L Switch 24 X 10/100/1000Base-T Ports 4 X GE SFP Ports PoE+
S5735-L24P4S-A Huawei S5735-L Switch 24 X 10/100/1000Base-T Ports 4 X GE SFP Ports PoE+
S5735-L24P4S-A Huawei S5735-L Switch 24 X 10/100/1000Base-T Ports 4 X GE SFP Ports PoE+
S5735-L24P4S-A Huawei S5735-L Switch 24 X 10/100/1000Base-T Ports 4 X GE SFP Ports PoE+
S5735-L24P4S-A Huawei S5735-L Switch 24 X 10/100/1000Base-T Ports 4 X GE SFP Ports PoE+
Specifications
Brand Name :
Huawei
Model Number :
S5735-L24P4S-A
Certification :
CE
Place of Origin :
China
Model :
S5735-L24P4S-A
Forwarding Performance :
56 Gbit/s/336 Gbit/s
Fixed Ports :
24 x 10/100/1000Base-T ports, 4 x GE SFP ports
Max Supported Size :
4GB
Connector Type :
SFP (Mini-GBIC)
Dimensions :
44.5 cm x 44.8 cm x 4.4 cm
Condition :
Brand New Sealed
Warranty :
1 year
Payment :
T/T, Western Union, Paypal
Shipping :
DHL, Fedex, UPS
Description

S5735-L24P4S-A Overview

S5735-L24P4S-A is the Huawei S5735-L switch with 24 x 10/100/1000Base-T ports, 4 x GE SFP ports, PoE+. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

S5735-L24P4S-A Huawei S5735-L Switch 24 X 10/100/1000Base-T Ports 4 X GE SFP Ports PoE+S5735-L24P4S-A Huawei S5735-L Switch 24 X 10/100/1000Base-T Ports 4 X GE SFP Ports PoE+

Compare to Similar Items

Product Model

S5735-L12T4S-A

S5735-L12P4S-A

S5735-L24T4S-A

S5735-L24P4S-A

S5735-L24T4X-A

S5735-L24P4X-A

 S5735-L48T4S-A

S5735-L48T4X-A

S5735-L48P4X-A

 S5735-L32ST4X-A
Forwarding Performance 24 Mpps 42 Mpps 96 Mpps 78 Mpps 132 Mpps 108 Mpps
Switching Capacity2 32 Gbit/s/336 Gbit/s 56 Gbit/s/336 Gbit/s 128 Gbit/s/336 Gbit/s 104 Gbit/s/432 Gbit/s 176 Gbit/s/432 Gbit/s 144 Gbit/s/432 Gbit/s
Fixed Ports 12 x 10/100/1000Base-T ports, 4 x GE SFP ports 24 x 10/100/1000Base-T ports, 4 x GE SFP ports 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports 48 x 10/100/1000BASE-T ports, 4 x GE SFP ports 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+ CloudEngine S5735-L12P4S-A: Supported
CloudEngine S5735-L24P4S-A: Supported
CloudEngine S5735-L24P4X-A: Supported
CloudEngine S5735-L48P4X-A: Supported
Other: Not supported

S5735-L24P4S-A Specification

S5735-L24P4S-A Specification
Forwarding Performance 42 Mpps
Switching Capacity2 56 Gbit/s/336 Gbit/s
Fixed Ports 24 x 10/100/1000Base-T ports, 4 x GE SFP ports
PoE+ Supported
MAC Features MAC address auto-learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
Interface-based MAC address learning limiting
VLAN Features 4094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
IP Routing Static route, RIP, RIPng, OSPF, OSPFv3
Super Virtual Fabric (SVF) Plug-and-play SVF clients
Automatic software package and patch loading to SVF clients
One-click and automatic delivery of service configurations
Independent SVF client operations
Interoperability VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)

S5735-L24P4S-A Huawei S5735-L Switch 24 X 10/100/1000Base-T Ports 4 X GE SFP Ports PoE+
