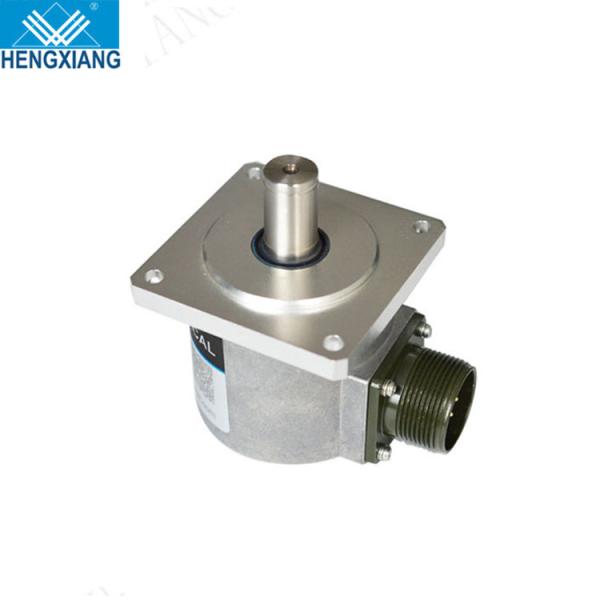

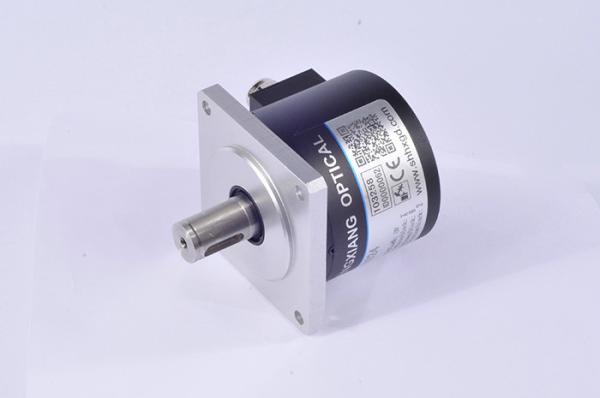

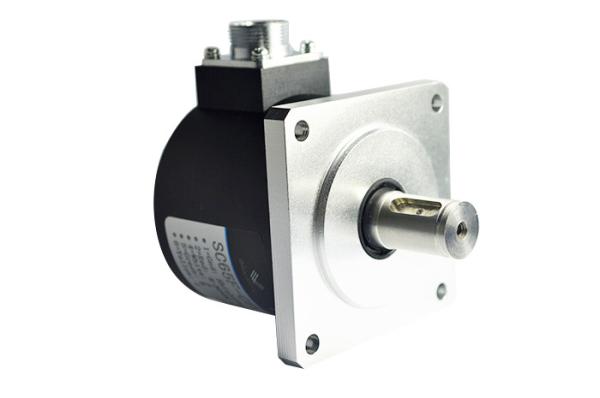

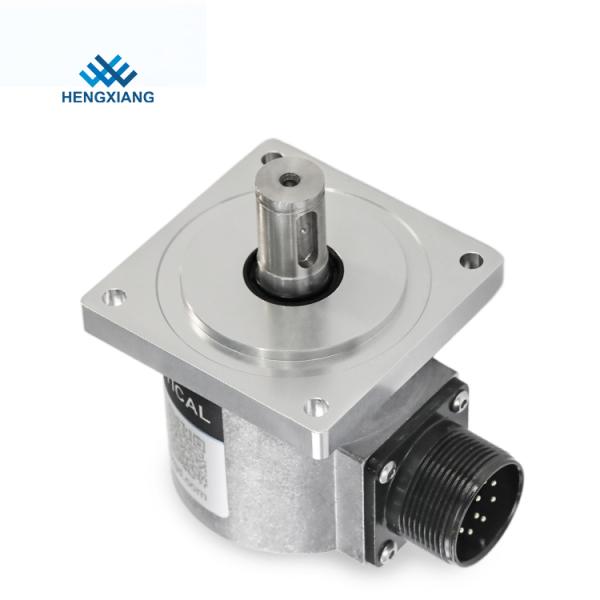

SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
Specifications
Brand Name :
HENGXIANG
Model Number :
SC65F
Certification :
CE,ISO9001
Place of Origin :
Shanghai,China
MOQ :
1Pcs
Price :
Consult us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100K pieces per year
Delivery Time :
3-5 working days for sample order, 7-15 working days for mass order
Packaging Details :
each 1 piece was packed into single carton box
Product Name :
SC65F heavy duty encoder solid shaft 15mm with keyway 5*5mm Push-pull output
Encoder type :
Incremental encoder
External diameter :
65mm
Thickness :
58mm
Flange dimension :
68mm x 68mm
Installation dimension :
56mm x 56mm
Shaft length :
26mm
Solid Shaft diameter :
15mm( KEYWAY 5mm)
Supply voltage :
DC5V ； DC8-30V
Protection grade :
IP50 ; IP65
Description

SC65F heavy duty encoder solid shaft 15mm with keyway 5*5mm Push-pull output

Encoder model number for SC65F

SC65F-T1V500

SC65F-T2F512

SC65F-C3V600

SC65F-C4C720

SC65F-T6E500

SC65F-T1V900

SC65F-C2F1000

SC65F-C3V1024

SC65F-T4E2048

SC65F-C6C2500

SC65F Series Product introduction

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 65mm
Thickness 58mm
Flange dimension 68mm x 68mm
Installation dimension 56mm x 56mm
Shaft length 26mm
Solid Shaft diameter 15mm( KEYWAY 5mm)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
　 3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
Output phase Phase A+,B+,Z+,A- B- Z-
Supply voltage DC5V ； DC8-30V
Outlet type Radial cable
Radial socket
　 NPN/PNP(Open Collector Output)
　 Voltage output
Output mode Push-pull output
　 line drive (26LS31) TTL
　 line drive(DC8-30V) HTL
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms

SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder

Shipping

o Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

o You could select the express according to your requirements if freight collector

o If you do not have any courier account, we will check and find a cheapest and safety express for you.

o Our factory has 30% discount with most courier company, so price could be as cheap as possible.

About Our Factory

o Own brand of "HENGXIANG" encoder

o Has ISO9001:2000 Quality Management System Certificate and CE Certification

o Invention patents five and utility model patents five

o Passed Shanghai New and High-tech Achievements Transformation Project.

o Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.

o Located in Shanghai city

o 20-30 experienced workers

Process of payment:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready

Applications

· Petrochemical industry

· Pharmaceutical industry

· Food industry

· Aviation and aerospace industry

· Architectural decoration industry

· Oil and gas industry

· FFS machine

· Disc shoe machine,

· Textile dyeing

· Leather machine

· Paper equipment

· Industrial machinery

· Paper cutter

· CNC machine tool

· Automatic measurement

· Remote control
