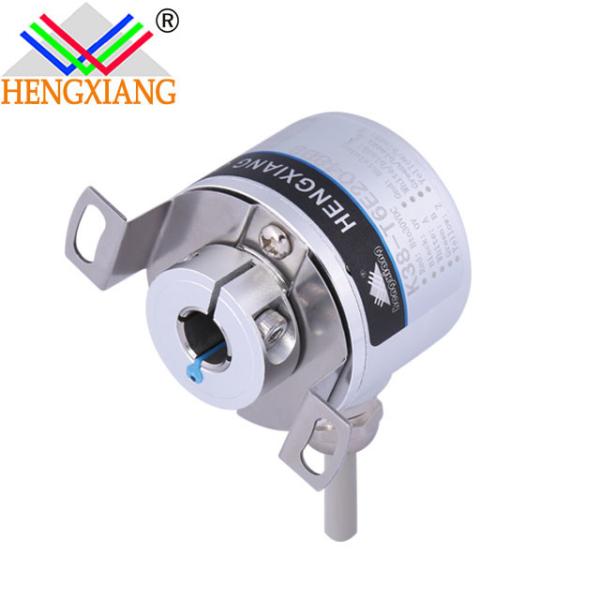

DC5V K38 Hollow Shaft Incremental Optical Rotary Encoder
DC5V K38 Hollow Shaft Incremental Optical Rotary Encoder
DC5V K38 Hollow Shaft Incremental Optical Rotary Encoder
DC5V K38 Hollow Shaft Incremental Optical Rotary Encoder
Specifications
Brand Name :
HENGXIANG
Model Number :
K38 hollow shaft incremental encoder
Certification :
CE,ISO9001
Place of Origin :
Shanghai,China
MOQ :
1pcs encoder to start order
Price :
negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability :
100K pieces per year
Delivery Time :
3-5 working days for sample order, 7-15 working days for mass order
Packaging Details :
each 1 piece was packed into single carton box
Encoder type :
Incremental encoder
Hollow shaft diameter :
5mm,6mm,6.35mm;8mm
Installation dimension :
R23.5mm(spring plate 38T45)
Resolution :
50;60;66;100;200;250;256;300;360;400;450;500;512;600;/700;720;800;900;1000;1024;1200;2000;2048;2500;5000; 8192;10000;16384
Output phase :
Phase A,B,Z A- B- Z-
Supply voltage :
DC5V ; DC8-30V
Outlet type :
Cable out from side /Cable out from back
Environmental temperature  :
Operating temperature: -20~+90° (Non icing)/Storage temperature: -25~+100° (Non icing)
package :
Carton box
Net weight  :
About 140g (with package)
Description

Optical rotary encoder K38 hollow shaft incremental encoder hole 6.35mm PNP output

About Our Factory

o Own brand of "HENGXIANG" encoder

o Has ISO9001:2000 Quality Management System Certificate and CE Certification

o Invention patents five and utility model patents five

o Passed Shanghai New and High-tech Achievements Transformation Project.

o Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.

o Located in Shanghai city

o 20-30 experienced workers

Quick Instructions for Encoder

Max resolution16384ppr

External diameter 38mm

Thickness 28mm

Power supply voltage 5V or 8--30V

Axial Cable outlet or Radial Cable outlet

Output Phase: A,A+B, or ABZ or A+B+Z+A-B-Z-

Gross weight 140 grams

Slew speed 5000 round per minute

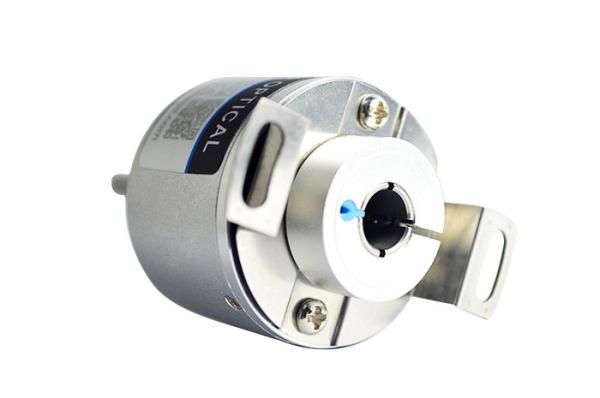

DC5V K38 Hollow Shaft Incremental Optical Rotary EncoderDC5V K38 Hollow Shaft Incremental Optical Rotary Encoder

Production date

3-5 working days for sample after full paid

7-15 days for mass production after full paid


K38 Parameter table

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
Hollow shaft diameter 5mm,6mm,6.35mm;8mm
Resolution 50;60;66;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000; 8192;10000;16384
Output phase Phase A,B,Z A- B- Z-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
Cable out from back
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
Long line drive (26LS31)
Compatible RS422
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+90° (Non icing)
Storage temperature: -25~+100° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
package Carton box
Net weight

Package

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.

FAQ

Q: Do you have some videos of your products?

A: Yes, you could visit our YOUTUBE page for encoder videos.

Q: What’s your encoder product guarantee policy?

A: 1 year quality warranty and life-long technical support.

Q: Where can I download the encoder catalogue or datasheet?

A: You could visit our official website or email us directly to the latest files.

Q: What is the highest resolution of your encoder products?

A: The highest resolution is 80000ppr, you can email us for more information.

Q: Can your encoder be customized?

A: Yes, our encoder can be customized according to your requirements,

Q: Do you test your encoder product before shipment?

A: Yes, we 100% test and examine every piece before shipping to make sure it work well on your device.

Q: Can you product ship to our country?

A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)
