2500p/R IP65 Photoelectric Rotary Incremental Machine Encoder Through Hole
2500p/R IP65 Photoelectric Rotary Incremental Machine Encoder Through Hole
2500p/R IP65 Photoelectric Rotary Incremental Machine Encoder Through Hole
2500p/R IP65 Photoelectric Rotary Incremental Machine Encoder Through Hole
2500p/R IP65 Photoelectric Rotary Incremental Machine Encoder Through Hole
2500p/R IP65 Photoelectric Rotary Incremental Machine Encoder Through Hole
2500p/R IP65 Photoelectric Rotary Incremental Machine Encoder Through Hole
2500p/R IP65 Photoelectric Rotary Incremental Machine Encoder Through Hole
2500p/R IP65 Photoelectric Rotary Incremental Machine Encoder Through Hole
2500p/R IP65 Photoelectric Rotary Incremental Machine Encoder Through Hole
2500p/R IP65 Photoelectric Rotary Incremental Machine Encoder Through Hole
2500p/R IP65 Photoelectric Rotary Incremental Machine Encoder Through Hole
2500p/R IP65 Photoelectric Rotary Incremental Machine Encoder Through Hole
2500p/R IP65 Photoelectric Rotary Incremental Machine Encoder Through Hole
Specifications
Brand Name :
HENGXIANG
Model Number :
K77
Certification :
CE,ISO9001
Place of Origin :
Shanghai, China
MOQ :
1pcs encoder to start order
Price :
negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability :
100K pieces per year
Delivery Time :
3-5 working days for sample order, 7-15 working days for mass order
Packaging Details :
each 1 piece was packed into single carton box
Pulse :
500-10000ppr (Max 65536ppr)
External diameter :
77mm
Connection :
Radail socket(M12 8pin male socket)
Encoder type :
hollow shaft incremental encoder
Shaft diameter :
25mm; 30mm (shaft can be customized Max 30mm)
Phase :
ABZ/ ±ABZ
Output type :
OC(NPN); Push-pull; HTL; TTL
Installation size :
85mm (Spring plate size can be customized)
Description

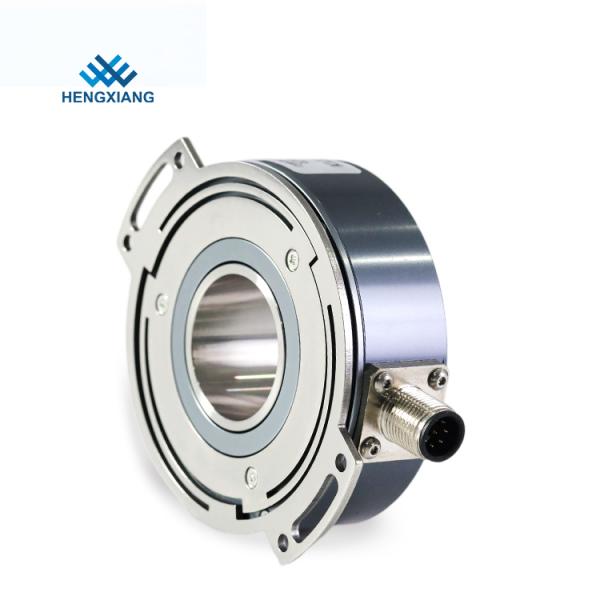

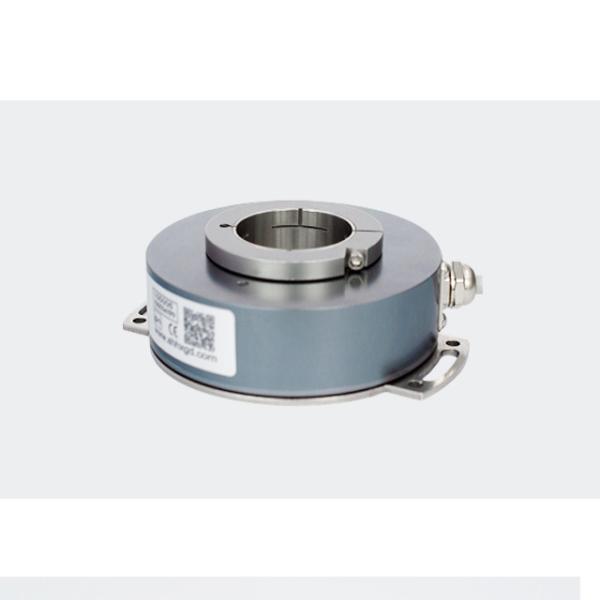

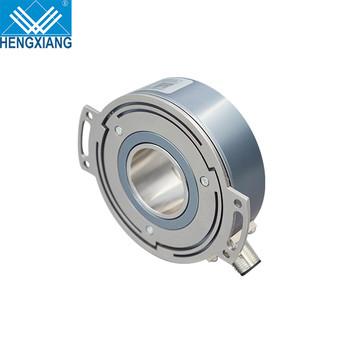

Through Hole 2500p/R Ip65 Photoelectric Rotary Incremental Machine Encoder

1. Feature: K77 customization hollow shaft incremental encoder, resolution/installation/shaft can be customized. Please consult sale for more information.

2. Application: Motor, CNC and other industrial automation field.

3. Important parameter: Resolution up to 65536ppr, high protection grade IP65

Basic Paramenters
Items
Basic parameters
Encoder type
Incremental encoder
Brand
HENGXIANG
External diameter
77mm
Thickness
31mm
Installation dimension
R85mm(spring plate 77B85)
Hollow shaft type
through hole
Hollow shaft diameter
25mm,30mm
Resolution
500; 512; 1000; 1024; 2000; 2048; 2500;
4000; 4096; 5000; 8000; 8192; 10000ppr
Output phase
Phase A+,B+,Z+,A-,B-,Z-
Supply voltage
DC5V ; DC8-30V
Outlet type
Radial socket (M12, 8pin male connector); Radial cable
Output mode
NPN(Open Collector Output)
Push-pull output
line drive (26LS31, DC5V) TTL
line drive (26C31, DC5V) TTL
line drive (DC8-30V) HTL
Consumption current
100mA MAX
Top response frenquency
100KHZ
Allowable ripple
≤3%rms
Load Voltage
≤DC30V
GND
not connect to encoder
Mark to Space ratio
45% to 55%
starting torque
less than 80x 10-3 N.m
Intertia moment
less than 100x 10-6kg.m2
Shaft load
Radial 70N; Axial 50N
Top REV
3000RPM ; IP65
Bearing life
1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature
Operating:-20 ～+85°；storage:-25 ～+90°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
Sock(endure)
1960m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
Dia cast aluminium
Cable length
1000mm
Protection grade
IP65
Cable length
1M (cable length could be added appropriately by
require, but it need payment individually)
Certification
CE
package
Carton box
Net weight
About 500g (with package)
Products Description

Parameter confirmation:

Basic Dimensions:
