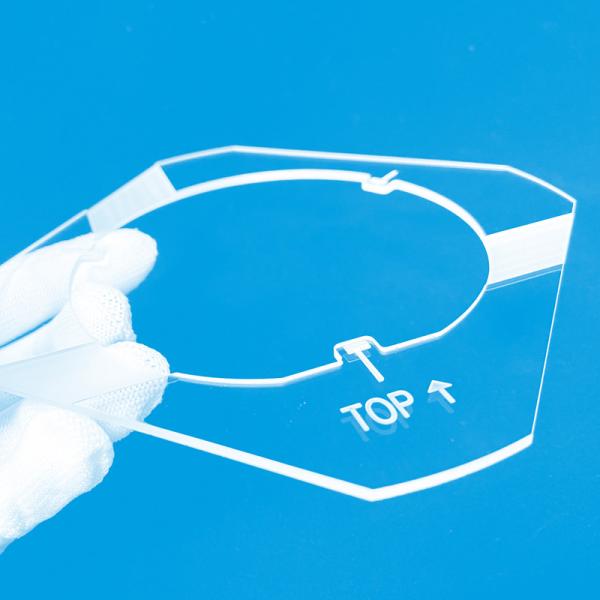

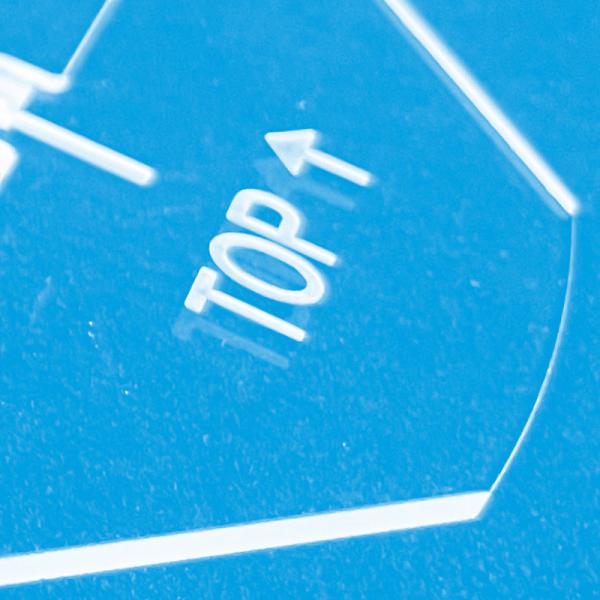

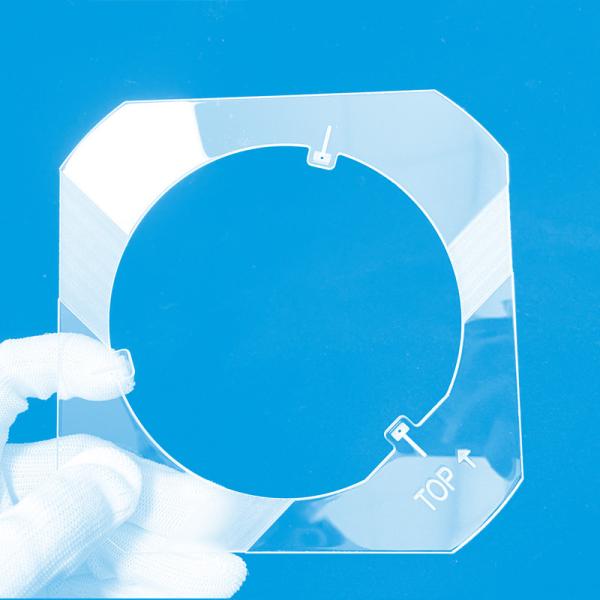

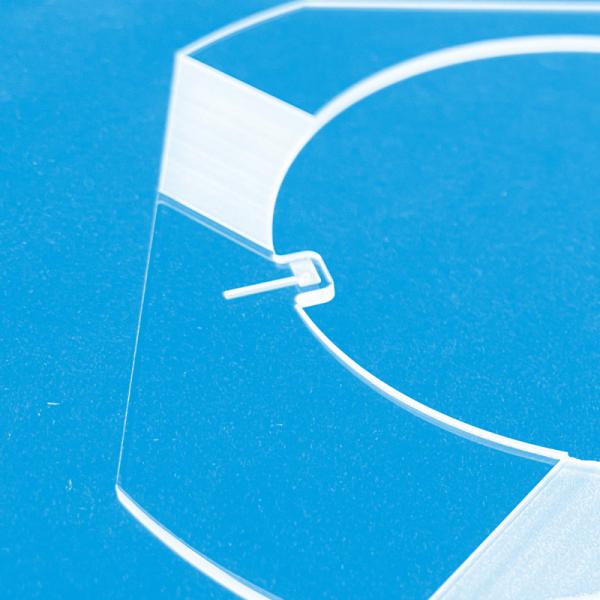

Optical Quartz Glass Plate Transparent Quartz Glass With Large Holes
Optical Quartz Glass Plate Transparent Quartz Glass With Large Holes
Optical Quartz Glass Plate Transparent Quartz Glass With Large Holes
Optical Quartz Glass Plate Transparent Quartz Glass With Large Holes
Optical Quartz Glass Plate Transparent Quartz Glass With Large Holes
Optical Quartz Glass Plate Transparent Quartz Glass With Large Holes
Optical Quartz Glass Plate Transparent Quartz Glass With Large Holes
Optical Quartz Glass Plate Transparent Quartz Glass With Large Holes
Specifications
Brand Name :
ZKTD
Model Number :
OEM
Certification :
ROSH,ISO 9001
Place of Origin :
Shandong, China
MOQ :
1 Pcs
Price :
USD 5 To 10 /PC
Payment Terms :
L/C,T/T
Supply Ability :
10000PCS Per Week
Delivery Time :
10-15 Work Day
Packaging Details :
Cartons, Wooden box
Material :
Fused quartz
Size :
Customized
MOQ :
1PC
Packing :
Corrugated carton
Shape :
Square
Process :
Cold Working
Description

Optical Quartz Glass Plate Transparent Quartz Glass With Large HolesHigh precision transparent quartz plate with large holes


Mechanical Property
Reference Value
Mechanical Property
Reference Value
Density
2.203g/cm
Refractive Index
1.45845
Compressive Strength
>1100Mpa
Coefficient of thermal expansion
5.5×10/°C
Bending Strength
67Mpa
Hot work temperature
1750~2050°C
Tensile Strength
48.3Mpa
The temperature for a short time
1300°C
Poisson's Ratio
0.14~0.17
The temperature for a long time
1100°C
Elastic Modulus
71700Mpa
Resistivity
7×107Ω.cm
Shearing Modulus
31000Mpa
Dielectric Strength
250~400Kv/cm
Moths Hardness
5.3~6.5(Moths Scale)
Dielectric Constant
3.7~3.9
Deformation Point
1280°C
Dielectric absorption coefficient
<4×104
Specific Heat(20~350°C)
670J/Kg°C
Dielectric loss coefficient
<1×104
Thermal Conductivity(20°C)
T1.4W/m°C
Typical Mechanical Property of Fused Quartz
