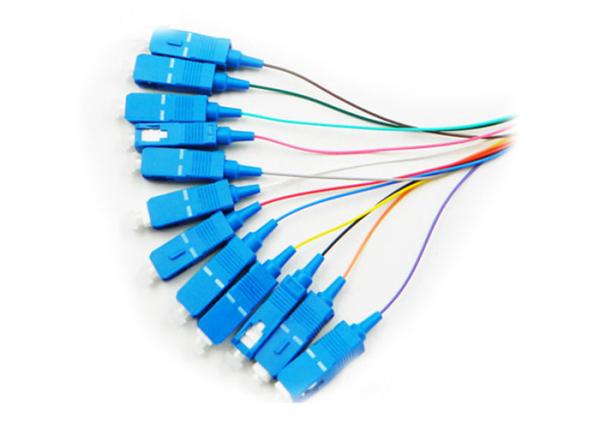

Single Mode 10G Patch Cord , 900UM Wave Length SC UPC Patch Cord 12 Colors
Single Mode 10G Patch Cord , 900UM Wave Length SC UPC Patch Cord 12 Colors
Single Mode 10G Patch Cord , 900UM Wave Length SC UPC Patch Cord 12 Colors
Single Mode 10G Patch Cord , 900UM Wave Length SC UPC Patch Cord 12 Colors
Specifications
Brand Name :
Haiyu Optical
Model Number :
HYG-PI-SC-SM-12F-013
Certification :
Rohs,CE, ISO
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000pcs per day
Delivery Time :
2-3 working days
Packaging Details :
polybag+carton or customized
Connector :
10G Single Mode Fiber Patch Cord
Fiber count :
12F 900um
Fiber type :
Singlemode, 12F Round cable
Color :
Yellow, Green
Insertion loss :
≤0.3 dB
Return loss :
>= 50dB
Length :
1m, 2m,5m,10m or custom
Application :
For ODF internal link,For room equipment internal link
Connector type :
SC/FC/ST/LC/MU/E2000/DIN/MTRJ/ESCON
Polishing :
UPC and APC
Description

10G Single Mode Fiber Patch Cables , SC / UPC 900um 12 Colors

Specification:

Single-mode Multimode
PC UPC APC PC
Insertion Loss ≤0.3dB ≤0.3dB ≤0.2dB ≤0.2dB
Return Loss ≥50dB ≥50dB ≥60dB ≥35dB
Operating Wavelength 1310nm, 1550nm 850nm,1300nm
Repeatability ≤0.1dB
Working Temperature -40℃~+75℃
Service Life >1000 mating cycles

FIBER CHARACTERISTICS:

Single Mode 10G Patch Cord , 900UM Wave Length SC UPC Patch Cord 12 Colors

Single Mode 10G Patch Cord , 900UM Wave Length SC UPC Patch Cord 12 Colors

Features:

  • Improves and simplifies fiber routing
  • Decreases fiber management space
  • OEM or customized for special applications
  • Low insertion loss and reflectance
  • High Density

Applications:

  • Telecommunication
  • Computer networks
  • CATV networks
  • Active device termination
  • Instrumentation

Single Mode 10G Patch Cord , 900UM Wave Length SC UPC Patch Cord 12 Colors
