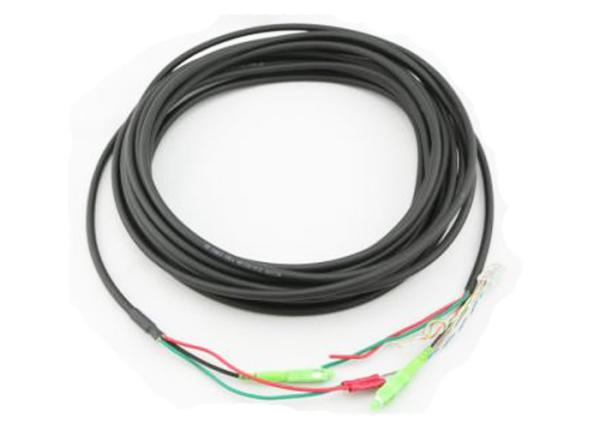

PVC/LSZH Sheath GTTS 0.75MM Fiber Optic Hybrid Cable
PVC/LSZH Sheath GTTS 0.75MM Fiber Optic Hybrid Cable
PVC/LSZH Sheath GTTS 0.75MM Fiber Optic Hybrid Cable
PVC/LSZH Sheath GTTS 0.75MM Fiber Optic Hybrid Cable
PVC/LSZH Sheath GTTS 0.75MM Fiber Optic Hybrid Cable
PVC/LSZH Sheath GTTS 0.75MM Fiber Optic Hybrid Cable
Specifications
Place of Origin :
Guangdong, China
Brand Name :
HYG
Model Number :
HYG-GYTC-24-9/125/fiber optic cable
Supply Ability :
50000 Meter/Meters per Month fiber optic power cable
Packaging Details :
1 km or 2 km /rell,for fiber optic cable
MOQ :
1000 Meter/Meters
Price :
$0.13 - $15.88 / Meter
Certification :
ISO9001, CE, ROHS
Number of Conductors :
>= 10
title :
fiber optic power cable
type :
96 core fiber optic cable
name :
48 core optical fiber cable
Core quality :
2-288 core
Optical fiber type 1 :
SM G652A/B/C/D or G - 655 A/B/C, G - 657 A/B
Optical fiber type 2 :
MM 62.5/125 um, um, OM3 50/125
Cable square number :
0.75 MM, 1.0 MM, 1.5 MM, 2.5 MM, 4 MM, 6 MM
Sheath material :
PVC/LSZH/PU
Sheath color :
White/black/green/yellow/orange
Pay cable size :
nominal cable size, also but agreed size
Type :
COAXIAL
Port :
shenzhen
Description

GTTS Opto Electric Composite Fiber Optic Hybrid Cable SC Fiber Patch Cord

Description

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

fiber optic cable/ 96 core fiber optic cable/ 48 core optical fiber cable

Characteristics


1.Good mechanical and temperature performance


2· High strength loose tube that is hydrolysis resistant


3· Special tube filling compound ensure a critical protection of fiber


4· Crush resistance and flexibility


5· PSP enhancing moisture-proof


6· Two parallel steel wires ensure tensile strength


7· Small diameter, light weight and friendly installation


8· Long delivery length

9.2-288 core fiber optic cable/ 96 core fiber optic cable/ 48 core optical fiber cable

Standards


GYXTW cable complies with Standard YD/T 769-2003.

fiber optic cable/ 96 core fiber optic cable/ 48 core optical fiber cable

Optical Characteristics

G.652

G.655

50/125μm

62.5/125μm

Attenuation

(+20°C)

@850nm

≤3.0 dB/km

≤3.0 dB/km

@1300nm

≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km

@1550nm

≤0.22 dB/km

≤0.23dB/km

Bandwidth (Class A)

@850nm

≥500 MHz·km

≥200 MHz·km

@1300nm

≥1000 MHz·km

≥600 MHz·km

Numerical Aperture

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

≤1260nm

≤1480nm


Technical Parameters

Cable Type

Fiber Count

Cable Diameter

mm

Cable Weight kg/km

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static

/Dynamic

mm

GYXS/GYXTW-2~12

2~12

10.0

105

600/1500

300/1000

10D/20D

GYXS/GY XTW-2~12

2~12

10.6

124

1000/3000

1000/3000

10D/20D

GYXS/GY XTW-14~24

14~24

12.5

149

1000/3000

1000/3000

10D/20D

GYXS/GY XTW-26~36

26~36

14.0

190

1000/3000

1000/3000

10D/20D

GYXS/GY XTW-38~48

38~48

15.0

216

1000/3000

1000/3000

10D/20D

Storage/Operating Temperature : -40°C to + 70°C

fiber optic cable/ 96 core fiber optic cable/ 48 core optical fiber cable
