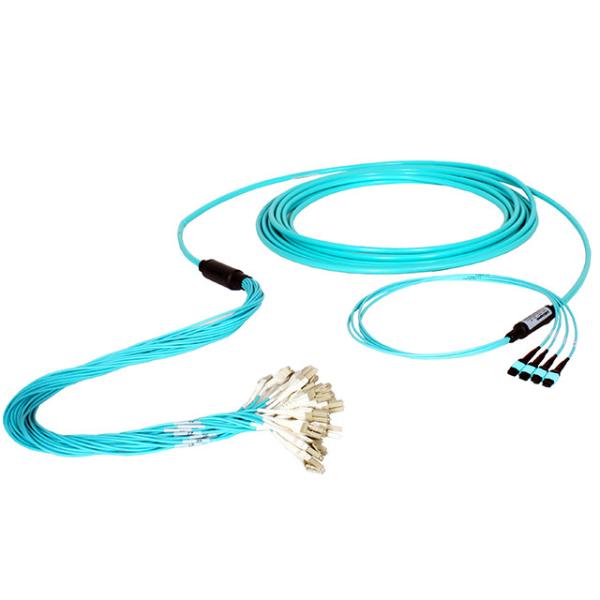

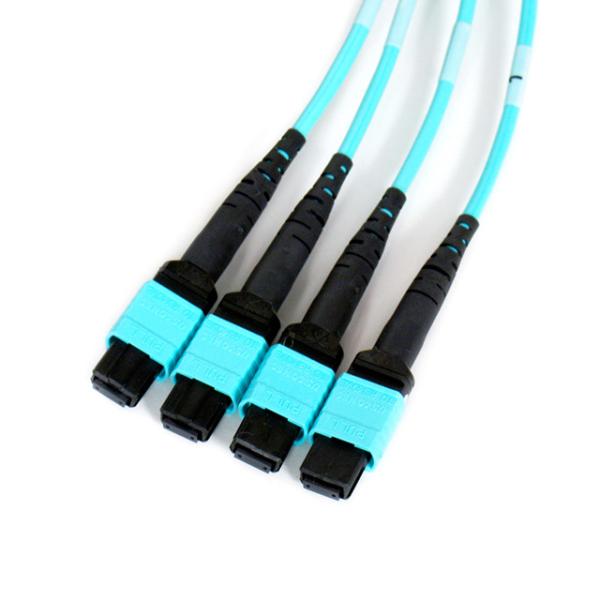

PVC LSZH OM3 48 Core MPO TO LC Optical Fiber Cable
PVC LSZH OM3 48 Core MPO TO LC Optical Fiber Cable
PVC LSZH OM3 48 Core MPO TO LC Optical Fiber Cable
PVC LSZH OM3 48 Core MPO TO LC Optical Fiber Cable
PVC LSZH OM3 48 Core MPO TO LC Optical Fiber Cable
PVC LSZH OM3 48 Core MPO TO LC Optical Fiber Cable
Specifications
Place of Origin :
Guangdong, China
Brand Name :
HYG
Model Number :
HYG-MPO-48f
Certification :
ROHS
Supply Ability :
100000 Piece/Pieces per Day
Packaging Details :
Neutral Packing 500pcs/ctn 1pc/bag
MOQ :
10 Piece/Pieces
Price :
$75.00 - $120.00 / Piece
Operating Temperature :
-40℃+80℃
Connector type :
lc,MPO
Cable type :
PVC;LSZH
Operating Wavelength :
1310/1550nm
Core Quantity :
48
Cable diameter :
2.0/3.0/
Delivery time :
3-5 days for MOQ
Fiber mode :
SM
Cable length :
1/3/5/10m or customized
Port :
Shenzhen
Description

Hello,

Thank you for viewing our page on Alibaba.com! We are a quality fiber optic cable manufacturer out of Shenzhen, China. Haiyu Optical holds ISO9001 certification and we are continually pushing the limits of increasing quality, outpacing our competitors. We have since grown to a team of dozens of individuals after our founding in 2008. We own and operate our own 1500 square meter factory in Shenzhen. Our products are all approved by UL, ROSH & CE.

Please reach out to us if you have any questions or if you would like to place an order. Thank you!

PVC LSZH OM3 48 Core MPO TO LC Optical Fiber Cable

Single-Mode Fiber Multi-Mode Fiber
PC UPC APC PC
Insertion Loss ≤0.3 dB ≤0.3 dB ≤0.3 dB ≤0.3 dB
Return Loss ≥40 dB ≥50 dB ≥60 dB N/A
Operating Wavelength 1310nm & 1550nm 850nm & 1300 nm
Repeatability ≤0.1 dB
Working Temperature -20~+60°C
Service Life >1,000 mating cycles

FIBER MANUFACTURERS

Fiber Type

Manufacturer

 Colors Available
9/125 μm YOFC or Corning Yellow
50/125 or 62.5/125 μm YOFC or Corning Orange
OM3 or OM4 50/125 μm YOFC or Corning Aqua

OPTIC FIBER CONNECTOR OPTIONS

PVC LSZH OM3 48 Core MPO TO LC Optical Fiber Cable

  • SC
  • LC
  • ST
  • FC
  • MTRJ
  • MU
  • SMA
  • E2000
  • D4
  • DIN
  • MPO
  • MTP

FIBER OPTIC FERRULE POLISH STYLES OPTIONS

  • Physical Contact (PC)
  • Ultra Physical Contact (UPC)
  • Angled Physical Contact (APC)
CABLE JACKET OPTIONS
  • PVC - Polyvinyl Chloride
  • LSZH - Low Smoke Zero Halogen
  • OFNR- Optical fiber nonconductive riser
  • OFNP - Optical fiber nonconductive plenum
  • HYTREL

FERRULES

PVC LSZH OM3 48 Core MPO TO LC Optical Fiber Cable

  • We machine our ceramic ferrules with great precision using zircnium dioxide
  • Each ferrule has a beautiful end face polishing and full inspection prior to terminating to the cable
  • Low insertion loss and high return loss
  • High stability and repeat
  • In accordance with Telcordia GR-326-CORE Standards

PRODUCT APPLICATION

PVC LSZH OM3 48 Core MPO TO LC Optical Fiber Cable

  • Local Area Network (LAN)
  • Datacenter
  • Telecommunication Optic Transmission Network
  • Optical Access Network (OAN)
  • Active Device Termination
  • CATV
  • Fiber Optic Data Transmission (FODT)

MECHANICAL TESTING

Vibration 10-55Hz
0.75mm Single Amplitude
30 Minutes Each Direction
Drop Test Dropped from 1M, 5x
Durability 1000 Insertions
Anti-Pull Power 90N

ABOUT OUR COMPANY

PVC LSZH OM3 48 Core MPO TO LC Optical Fiber Cable

PVC LSZH OM3 48 Core MPO TO LC Optical Fiber Cable

PVC LSZH OM3 48 Core MPO TO LC Optical Fiber Cable

PVC LSZH OM3 48 Core MPO TO LC Optical Fiber Cable

After-Sales Service

PVC LSZH OM3 48 Core MPO TO LC Optical Fiber Cable

OEM & ODM is accepted, any questions welcome to contact us.

Sales Manager: Joyce Tan

Phone: 86 13066935405

Tel: 86 755 29467029

Email: hyglink[a]hyglink.com

Skype: joycetan75

Weichat: tan_aihua
