Compact CWDM Mutiplexer Module LC/UPC Low Insertion Loss WDM Network
Compact CWDM Mutiplexer Module LC/UPC Low Insertion Loss WDM Network
Compact CWDM Mutiplexer Module LC/UPC Low Insertion Loss WDM Network
Compact CWDM Mutiplexer Module LC/UPC Low Insertion Loss WDM Network
Specifications
Brand Name :
Hilink
Model Number :
HL-CCWDM-MUX
Certification :
CE FCC Rohs
Place of Origin :
Guangdong, China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200PCS/month
Packaging Details :
Plastic packaging, Carton
Product Name :
CCWDM-4CH Mux
Package :
Mounted in 1U Rack or ABS box (optional)
Wavelength :
1260~1625nm
Channel Space :
20nm
Connector :
LC UPC
Operating Temperature :
0 to +70℃
Logo :
Customized
Certificate :
FCC CE RoHS
Description

Compact CWDM Mutiplexer Module CCWDM-4CH LC/UPC Low Insertion Loss WDM Network

Hilink's Low Loss Compact Coarse Wavelength Division Multiplexer (CCWDM) is based on Thin-Film-Filter and Micro-Optics.This technology is a lead-free packaging platform with high reliability.

Highlights

* Mini form

* Ultra low loss

* High channel isolation

Features

* Ultra-Low Insertion Loss

* High Isolation

* Low PDL

* Compact Design

* Good channel-to-channel uniformity

* Mounted in 19' 1U Racks or ABS box optional

* Wide Operating Wavelength: From 1260nm to 1620nm

* Wide Operating Temperature: From -40℃ to 85℃

* High Reliability and Stability

Compliance

  • * Telcordia GR-1209-CORE-2001

  • * Telcordia GR-1221-CORE-1999

  • * RoHS

Description

Unit

Min

Typical

Max.

Optional channel loss

dB

0.8

1.1

Pass band width

nm

13

Flatness

dB

0.3

0.5

Adjacent channel isolation

dB

30

35

Non adjacent channel isolation

dB

40

45

Directivity

dB

55

PDL

dB

0.2

PMD

ps

0.2

Max. power

mw

500

Pass channel insertion loss

P

dB

0.8

1.0

A

1.0

1.5

Channel wavelength

nm

1471 1491 1511 1531 1551 1571 1591 1611

Can be selected on request or any 4channel between 1260-1625

Operating temperature

°C

0 ~+70

Storage temperature

°C

-40 ~+85

Package

mm

43(L)X28(W)X6(H) or customerized

Applications

* CWDM System

* PON Networks

* CATV Links

* WDM Network

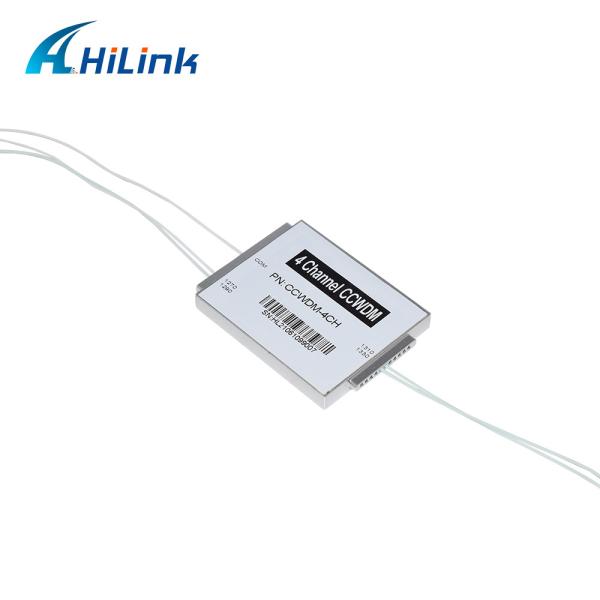

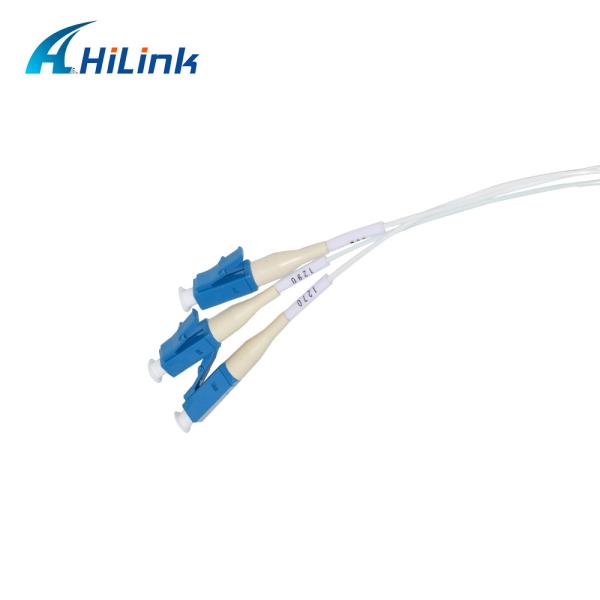

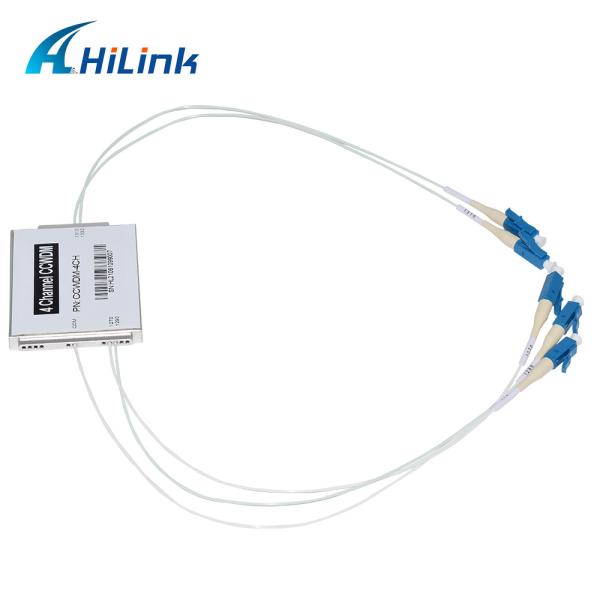

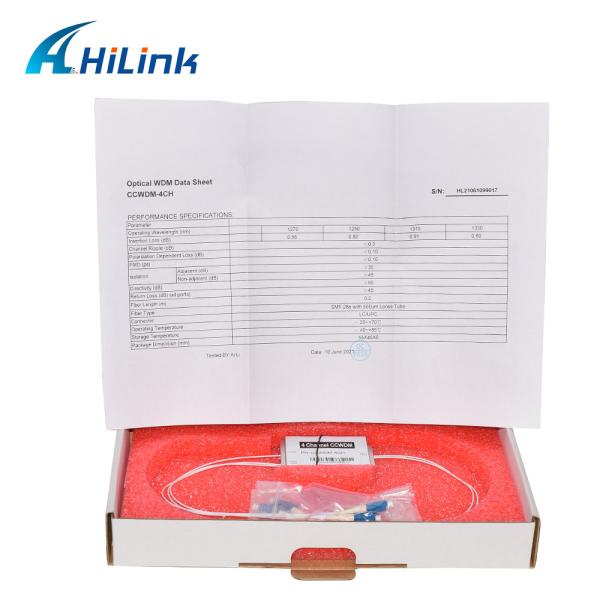

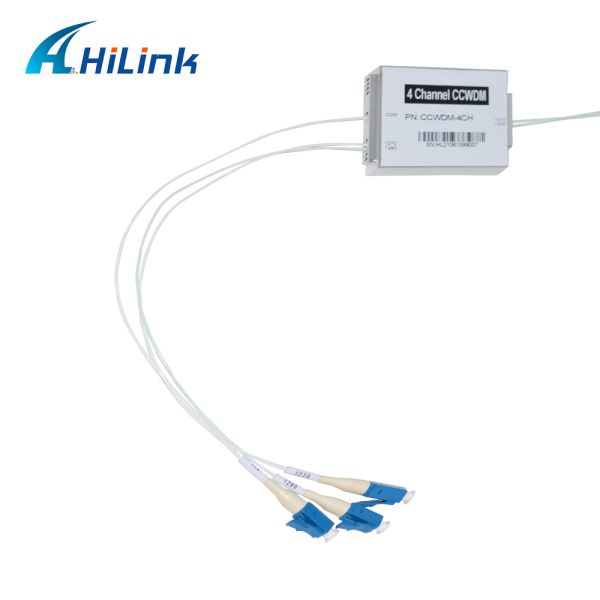

Details Images

Compact CWDM Mutiplexer Module LC/UPC Low Insertion Loss WDM NetworkCompact CWDM Mutiplexer Module LC/UPC Low Insertion Loss WDM NetworkCompact CWDM Mutiplexer Module LC/UPC Low Insertion Loss WDM Network

Compact CWDM Mutiplexer Module LC/UPC Low Insertion Loss WDM Network

Hilink Advantages


1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.

FAQ

1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.

2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
