QSFP+Transceiver Module Full Compatible QSFP-40G-LR4-20KM Dual LC 1310nm Transceivers
QSFP+Transceiver Module Full Compatible QSFP-40G-LR4-20KM Dual LC 1310nm Transceivers
QSFP+Transceiver Module Full Compatible QSFP-40G-LR4-20KM Dual LC 1310nm Transceivers
QSFP+Transceiver Module Full Compatible QSFP-40G-LR4-20KM Dual LC 1310nm Transceivers
QSFP+Transceiver Module Full Compatible QSFP-40G-LR4-20KM Dual LC 1310nm Transceivers
QSFP+Transceiver Module Full Compatible QSFP-40G-LR4-20KM Dual LC 1310nm Transceivers
QSFP+Transceiver Module Full Compatible QSFP-40G-LR4-20KM Dual LC 1310nm Transceivers
QSFP+Transceiver Module Full Compatible QSFP-40G-LR4-20KM Dual LC 1310nm Transceivers
Specifications
Brand Name :
HILINK
Model Number :
HL-QSFP-LR4-L20
Certification :
CE FCC RoHS
Place of Origin :
Guangdong, China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
100PCS Per Day
Delivery Time :
3-5 Working Days
Packaging Details :
Blister Packaging
Data Rate :
40Gbps(4x11.2Gbps Max)
Package Type :
QSFP+
Transmitter :
DFB
Wavelength :
1271,1291,1311,1331nm
Reach Distance :
20KM
Connector :
Dual LC
Description

QSFP+Transceiver Module Full Compatible QSFP-40G-LR4-20KM Dual LC 1310nm Transceivers

Hilink QSFP-40G-LR4-20KM module is designed for 20km optical communication applications. The design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard.

The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
Item No. HL-QSFP-LR4-L20 Vendor Name Hilink
Form Type QSFP+ Max Data Rate 40Gbps
Wavelength 1271/1291/1331/1331nm Max Cable Distance 20KM
Interface Dual LC OEM Service Yes
Cable Type SMF DOM Support Yes
Commercial Temperature Range 0 to 70°C (32 to 158°F) HTS-Harmonized Code 8517706000


Features

  • 4 CWDM lanes MUX/DEMUX design
  • Up to 11.2Gbps per channel bandwidth
  • Aggregate bandwidth of > 40Gbps
  • Duplex LC connector
  • Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard
  • QSFP MSA compliant
  • Up to 20km transmission
  • Compliant with QDR/DDR Infiniband data rates
  • Single +3.3V power supply operating
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C
  • RoHS Compliant Part


Applications

  • Rack to rack
  • Data centersSwitches and Routers
  • Metro networks
  • Switches and Routers
  • 40G BASE-LR4 Ethernet Links

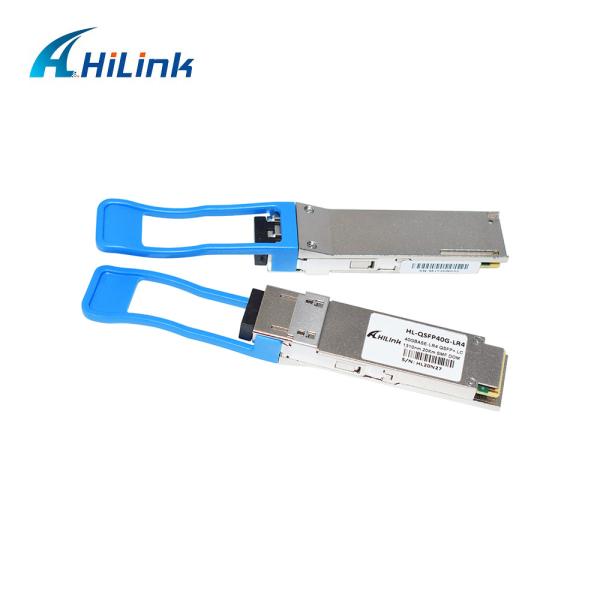

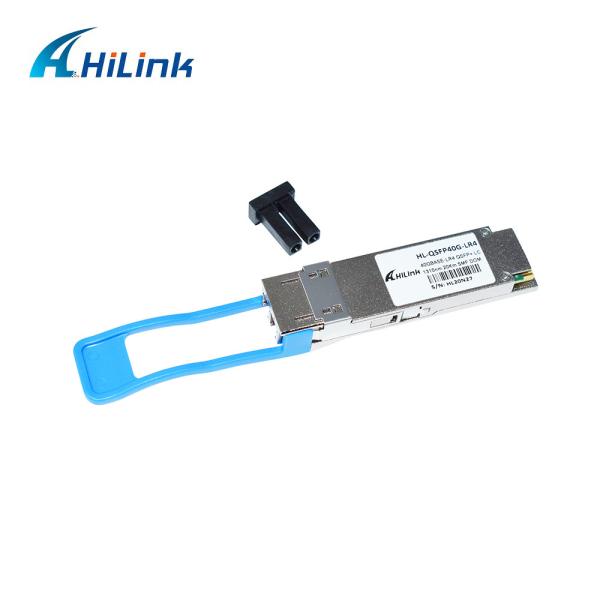

Details Photos

QSFP+Transceiver Module Full Compatible QSFP-40G-LR4-20KM Dual LC 1310nm TransceiversQSFP+Transceiver Module Full Compatible QSFP-40G-LR4-20KM Dual LC 1310nm TransceiversQSFP+Transceiver Module Full Compatible QSFP-40G-LR4-20KM Dual LC 1310nm TransceiversQSFP+Transceiver Module Full Compatible QSFP-40G-LR4-20KM Dual LC 1310nm Transceivers


Hilink Advantages


1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.

FAQ

1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.

2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
