Specifications
Brand Name :
Hilink
Model Number :
HL-DWSFP10G-ZR
Certification :
RoHS
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
5-8 Working days
Packaging Details :
Normal Package Or OEM
Product name :
10G DWDM SFP+ 80KM
Data Rate :
10G
Wavelength :
CH17~61
Distance :
80km
Warranty :
3 years
Delivery time :
3-7workingdays
OEM :
Support
Description

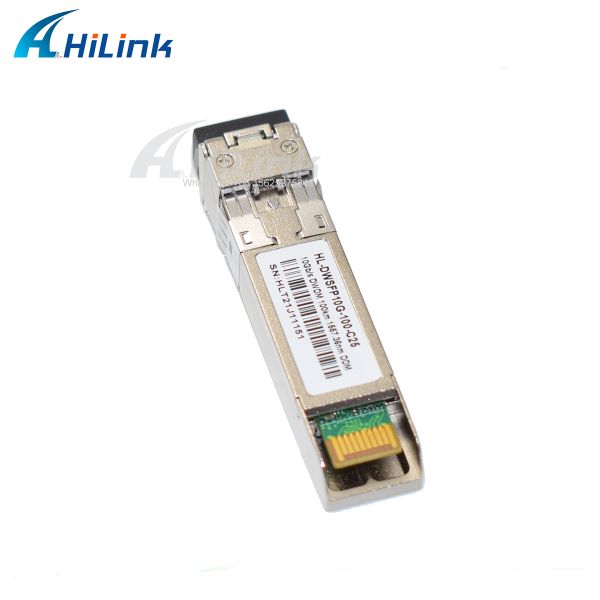

Hilink 10G SFP+ DWDM SFP 80km/100km 100GHZ CH17~61 Optional 120km Transceiver Optical Module Commerical Industrial
*Feel free to contact us for details, compatibility, customization and wholesale pricing.
HILINK' Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 80km over Single Mode fiber. They are compliant with SFF- 8431,SFF-8432 and ITU-T G.698.1. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication.

This transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Key Features

●Supports 9.95 to 11.3 Gb/s bit rates

●Duplex LC connector

●Hot pluggable SFP+ footprint

●Cooled EML transmitter and APD receiver

●Applicable for 80km SMF connection

●Low power consumption, < 1.5W

●100 GHz channel spacing 0.8nm

●Digital Diagnostic Monitor Interface

●Optical interface compliant to ITU-T 694.1& G.698.1

●Electrical interface compliant to SFF-8431& SFF-8432

●Operating case temperature:

Commerical:0 to 70 °C

Industrial: -5 to 80 °C

Applications

●10G Ethernet

●2x,4x, 8x Fiber Channel

●ITU-T G.698.1

●Other optical links

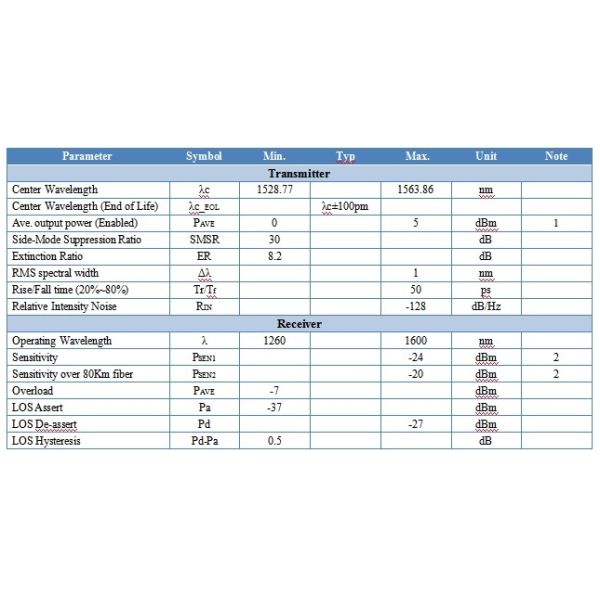

10G SFP+ DWDM 80km

10G SFP+ DWDM Transceiver 80km 100km CH17~61 120km CH20~55 100GHz Industrial Commercial Temperature

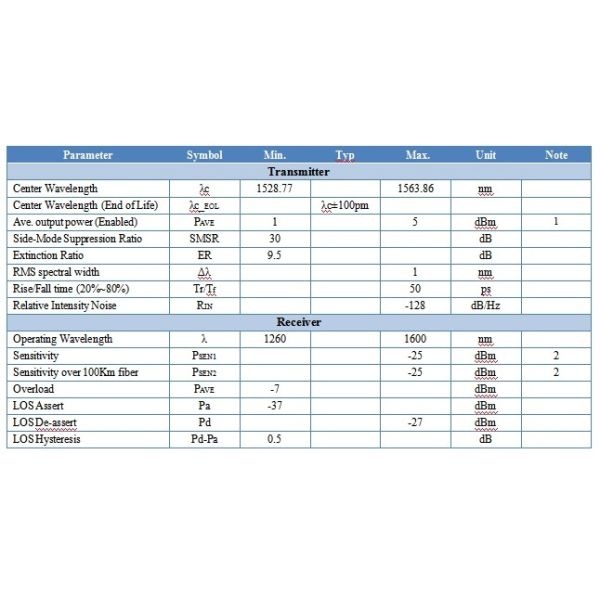

10G SFP+ DWDM 100km

10G SFP+ DWDM Transceiver 80km 100km CH17~61 120km CH20~55 100GHz Industrial Commercial Temperature
