100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver
100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver
100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver
100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver
100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver
100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver
100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver
100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver
100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver
100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver
Specifications
Brand Name :
Hilink
Model Number :
QSFP28-100G-SRBD
Certification :
CE Rohs
Place of Origin :
Guangdong, China
MOQ :
1 pieces
Price :
Send Inquiry know latest price
Payment Terms :
T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance
Supply Ability :
2000 Pieces/Week
Delivery Time :
5-8 working day
Packaging Details :
Plastic box+Carton
Product Name :
QSFP28-100G-SRBD
Data Rate :
100G
Reach :
70m with OM3, 100m with OM4 and 150m with OM5
Operating Temperature :
0 to 70℃
Description

100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver

Product Specifications
Attribute Value
Product Name QSFP28-BIDI-SR
Data Rate 100G
Reach 70m with OM3, 100m with OM4 and 150m with OM5
Operating Temperature 0 to 70℃
Product Overview

The 100G QSFP28 Bidi transceiver supports connections over multimode fiber (MMF) up to 70m with OM3, 100m with OM4 and 150m with OM5. It uses duplex LC connectors. The wavelengths are 850nm and 900nm.

Features:

² Compliant to the 100GbE XLPPI electrical specification per IEEE 802.3bm

² Compliant to QSFP28 SFF-8636 Specification

² Aggregate bandwidth of > 100Gbps

² Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850 nm/900 nm

² QSFP28 MSA compliant

² Capable of over 70m transmission on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF² Single +3.3V power supply operating

² Without digital diagnostic functions

² Temperature range 0°C to 70°C

² RoHS Compliant Part

² Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure² Support 40G/100Gbps


Applications:

² 100 Gigabit Ethernet interconnects

² Datacom/Telecom switch & router connections

² Data aggregation and backplane applications

² Proprietary protocol and density applications

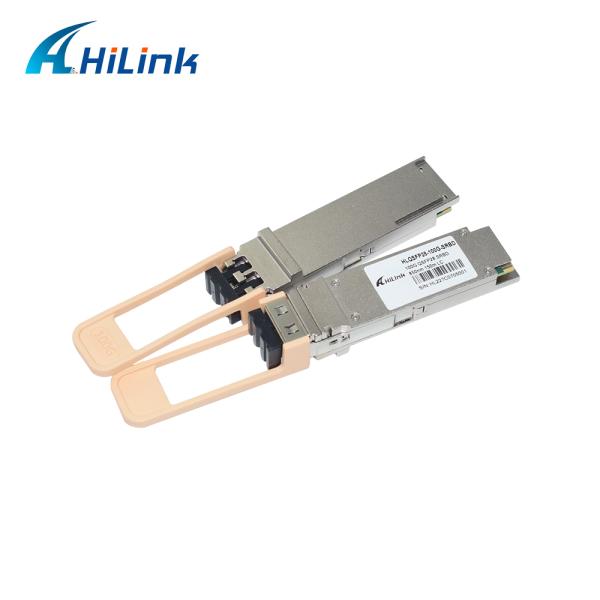

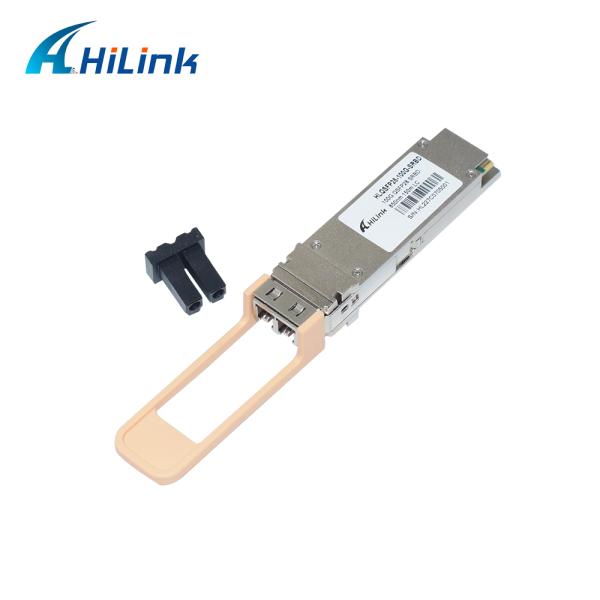

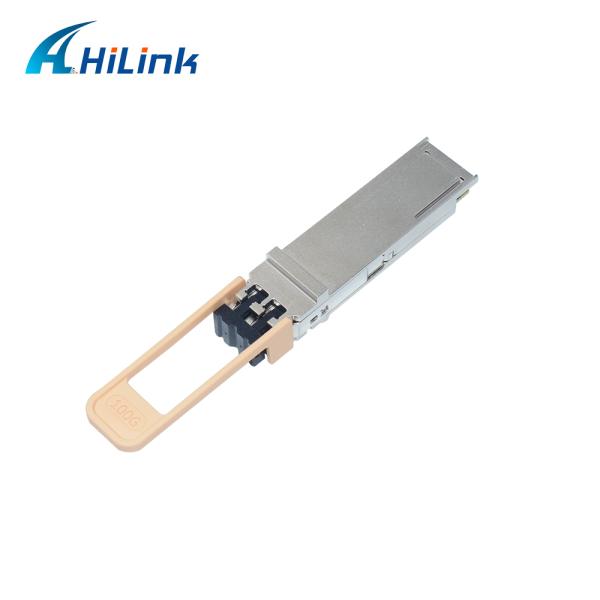

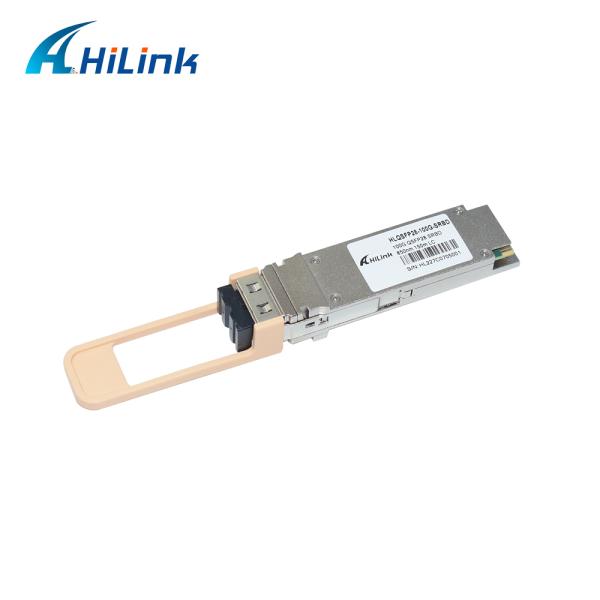

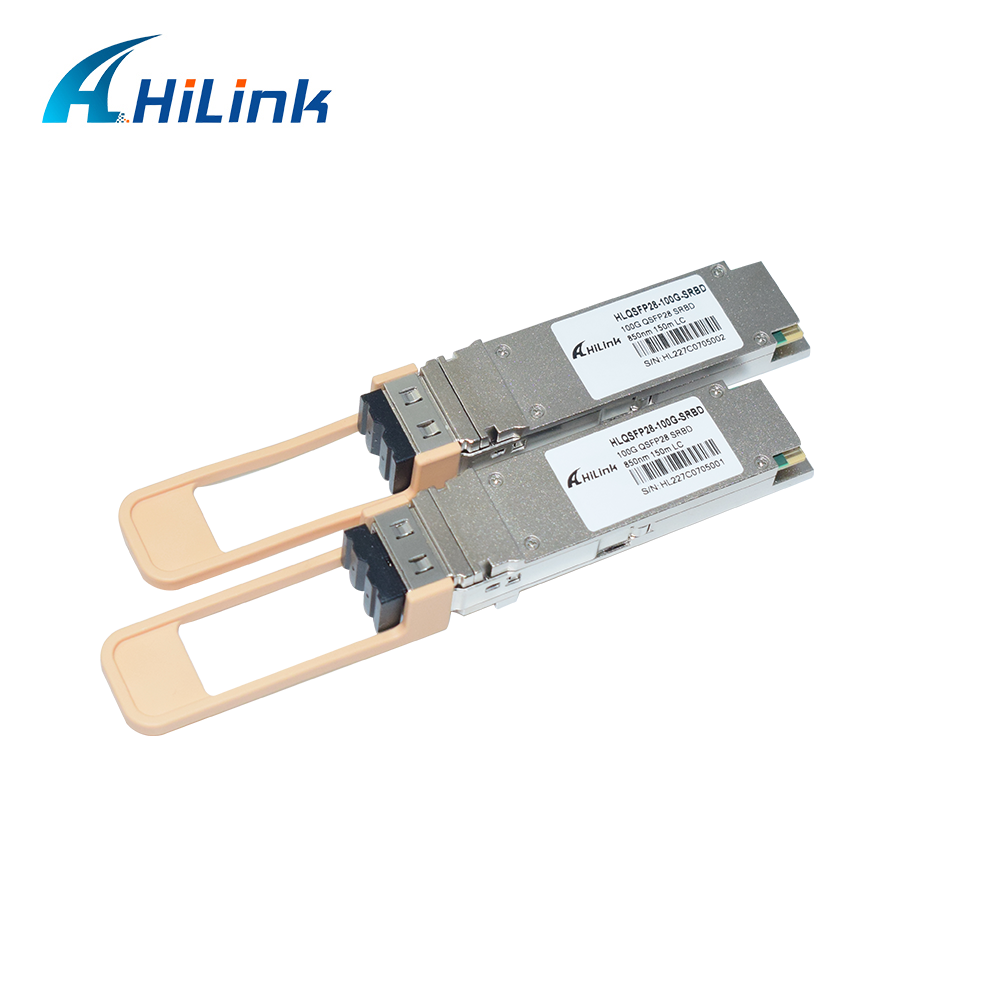

Product Images

100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver

100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver

100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver


Quality Assurance

Warranty & Quality Commitment:

All advertised optical transceivers are brand new with new components. We never use old or refurbished materials. Each unit undergoes functional and aging tests before shipment.

3-Year Warranty:

We provide a 3-year warranty for all optical transceivers from the date of shipment. OEM/ODM orders are available upon request.
