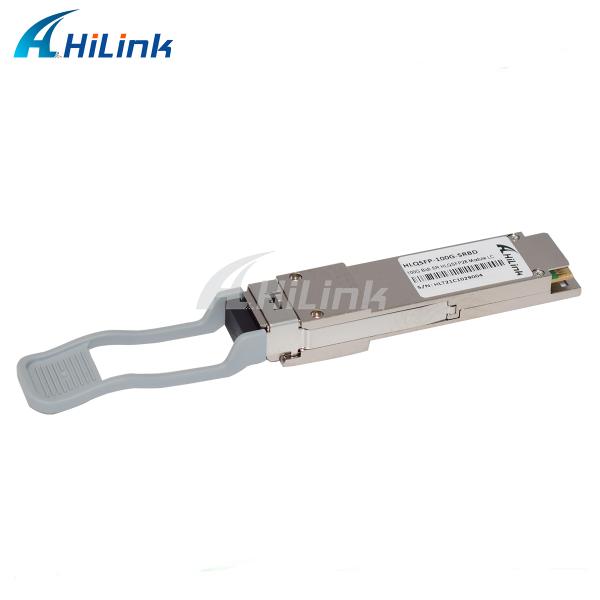

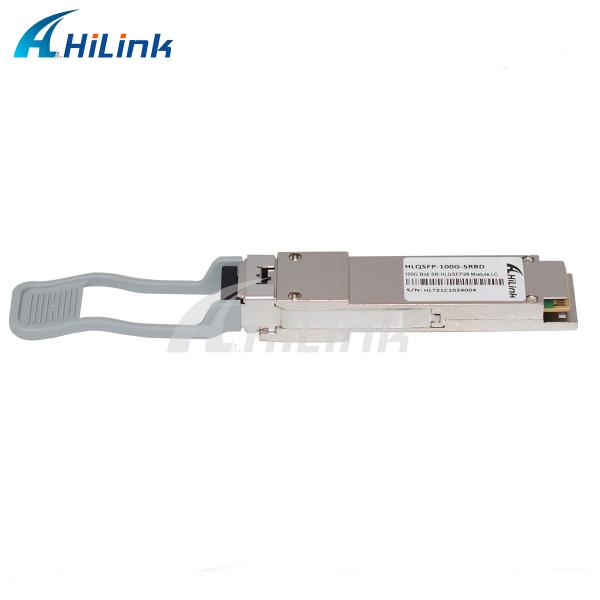

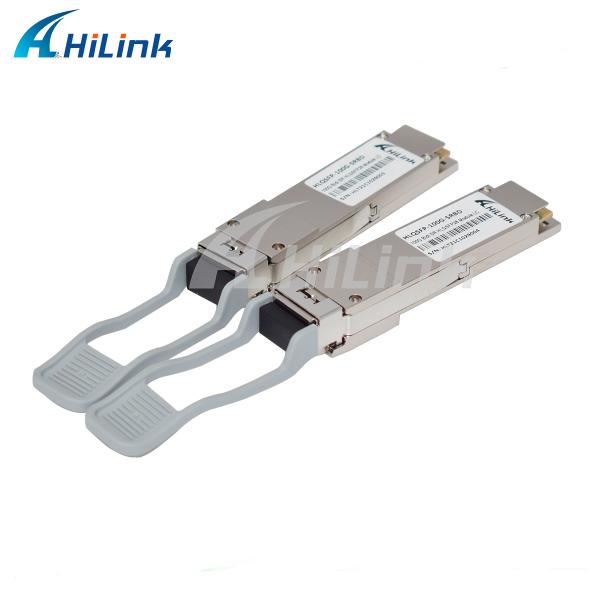

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode
100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode
100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode
100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode
100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode
100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode
100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode
100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode
100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode
100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode
Specifications
Brand Name :
Hilink
Model Number :
HL-QSFP28-100G-SRBD
Certification :
CE RoHS
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
EXW: 400USD/PCS~450USD/PCS
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
5-8 Working days
Packaging Details :
Normal Package Or OEM
Product name :
QSFP28 100G SRBD 100M
Data Rate :
100G
Distance :
100m
Connector :
+3.3VC
Tem :
0 to 70°C
Warranty :
3 years
Delivery time :
3-7workingdays
OEM :
Support
Description

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode


Feature

Compliant to the 100GbE XLPPI electrical specification per IEEE 802.3bm
Compliant to QSFP28 SFF-8636 Specification
Aggregate bandwidth of > 100Gbps
Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850 nm/900 nm
QSFP28 MSA compliant
Capable of over 70m transmission on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
Single +3.3V power supply operating
Without digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure
Support 40G/100Gbps


Applications

100 Gigabit Ethernet interconnects
Datacom/Telecom switch & router connections
Data aggregation and backplane applications
Proprietary protocol and density applications


Description:
It is a Four-Channel,Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 100 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range duplex data communication and interconnect applications. It integrates four electrical data lanes in each direction into transmission over a single LC duplex fiber optic cable. Each electrical lane operates at 25.78125 Gbps and conforms to the 100GE XLPPI interface.
The transceiver internally multiplexes an XLPPI 4x25G interface into two 50Gb/s electrical channels, transmitting and receiving each optically over one simplex LC fiber using bi-directional optics. This results in an aggregate bandwidth of 100Gbps into a duplex LC cable. This allows reuse of the installed LC duplex cabling infrastructure for 100GbE application. Link distances up to 70 m using OM3 and 100m using OM4 optical fiber are supported. These modules are de- signed to operate over multimode fiber systems using a nominal wavelength of 850nm on one end and 900nm on the other end. The electrical interface uses a 38 contact QSFP28 type edge connector. The optical interface uses a conventional LC duplex connector.

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode
100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode


Company information

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode

OEM/ODM order is available.


Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.


What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
