Specifications
Brand Name :
Hilink
Model Number :
OSFP-400G-DR4
Certification :
CE Rohs
Place of Origin :
Guangdong, China
MOQ :
1 pieces
Price :
Send Inquiry know latest price
Payment Terms :
T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance
Supply Ability :
10 Pieces/Week
Delivery Time :
6-12 working day
Packaging Details :
Plastic box+Carton
Product Name :
400G OSFP 1310nm 500m DR4
Data Rate :
400GBASE OSFP
Reach :
500m
Transmitter :
EML
Fiber Connector :
MPO-12
Operating Temperature :
0 to 70℃
Description
400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission
Product Overview

OSFP-400G-DR4 transceiver is designed for use in 400Gb/s network applications, the maximum transmission distance is 500m. OSFP-400G-DR4 is a fully integrated optical transceiver modulated using 4-level pulse amplitude modulation (PAM4) format that transmits and receives optical signals with aggregated data rate of 425Gbps over 4 lanes 1310nm each running at 106.25Gbps. They are compliant with the OSFP Module Specification and only use four electrical channels. OSFP-400G-DR4 are compliant with RoHS.

Key Features

l Compliant with IEEE Std 802.3bs on 400Gb/s Optical interfaces

l Compliant with IEEE Std 802.3ck on 400Gb/s Electrical interfaces

l Compliant with OSFP Module Specification

l Compliant with CMIS5.0 Management interface specifications

l MPO-12 receptacle

l 1310nm EML laser

l 4*53.125GBd PAM4 electrical interface

l Transmission distance up to 500m SMF

l Single +3.3V power supply

l Commercial operating temperature:0oC to +70oC

l RoHS Compliant

Applications

l 400G BASE-DR4 Ethernet

l Data Center

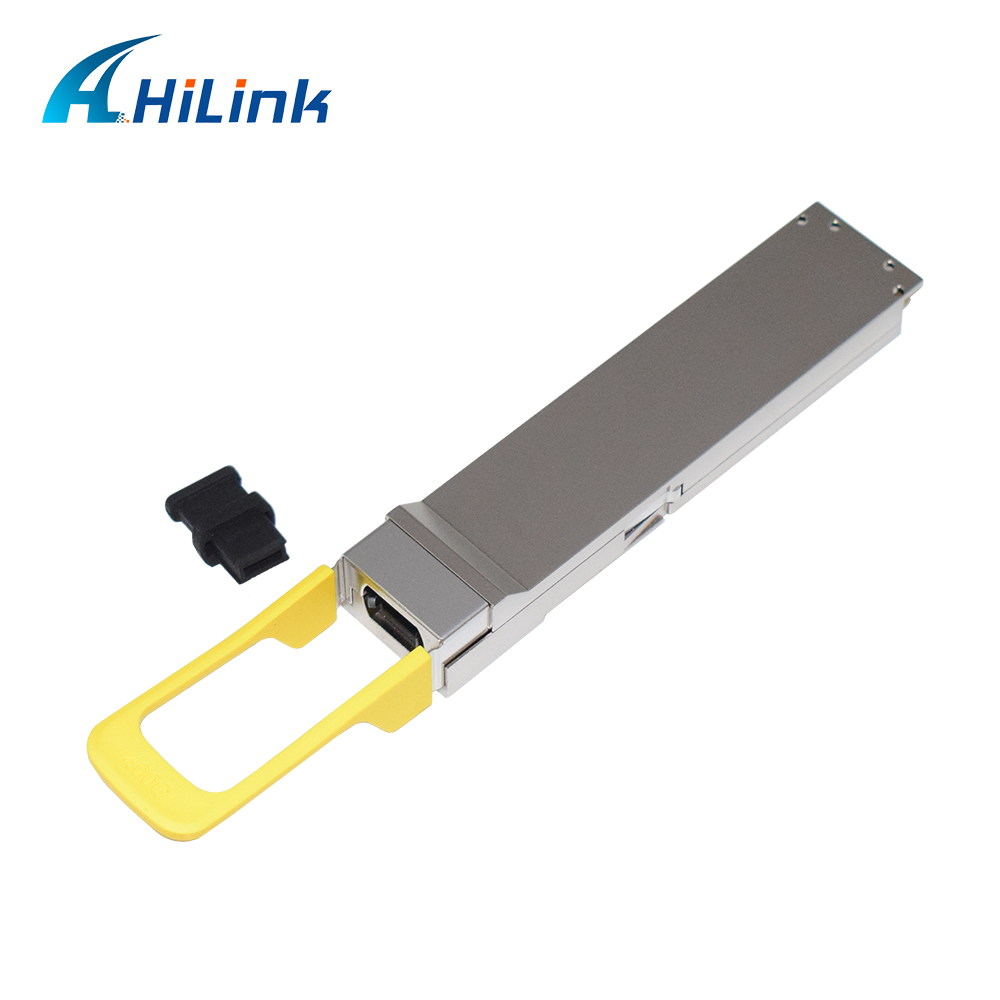

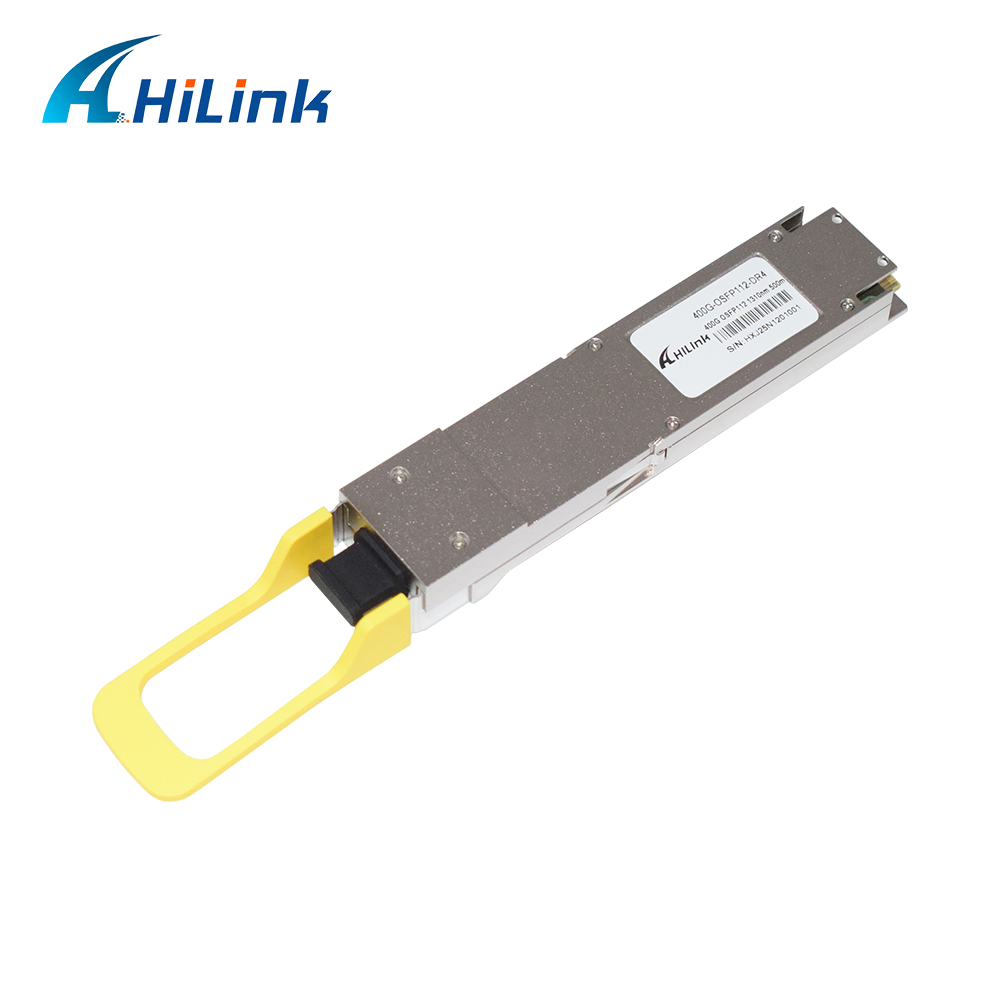

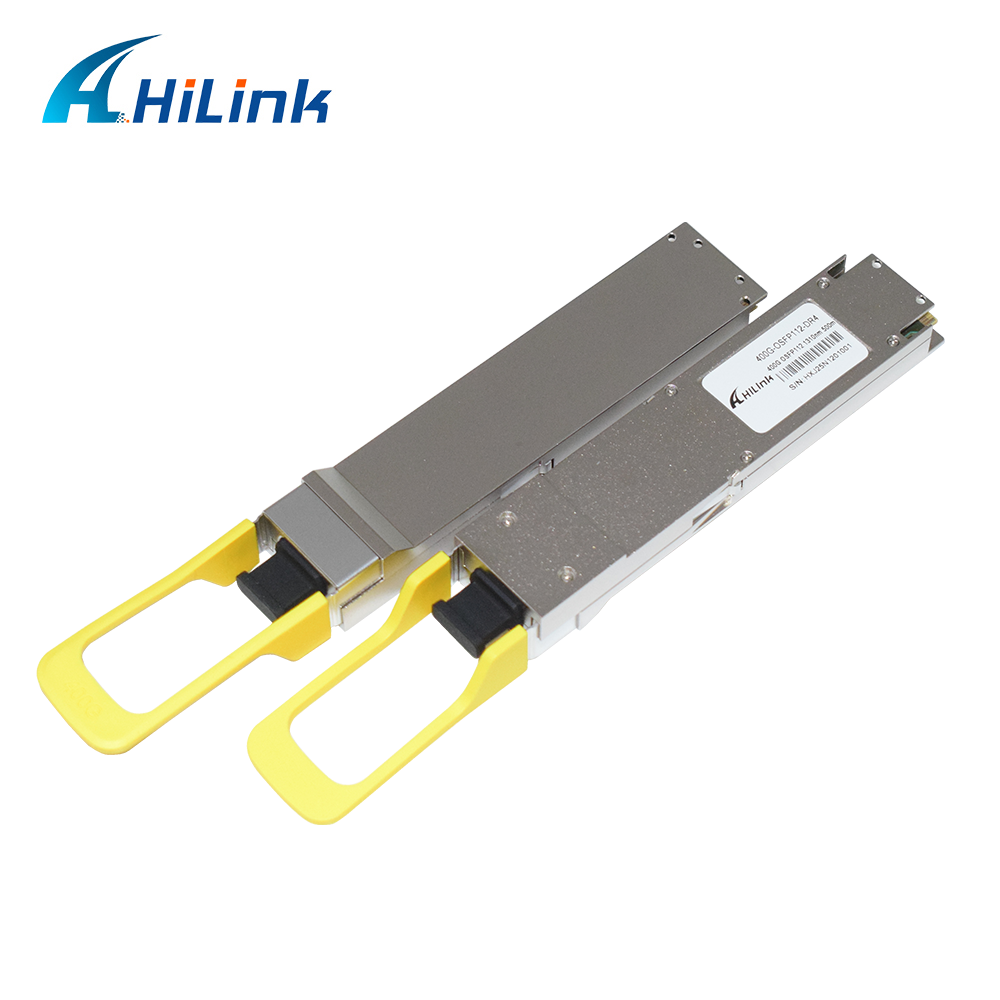

Product Images

400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission

400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission

400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission

Quality & Service

OEM/ODM orders available. All optical modules are brand new, manufactured with premium materials, and undergo rigorous functional and aging tests. We provide a comprehensive 3-year warranty from the date of shipment for all optical transceivers.
