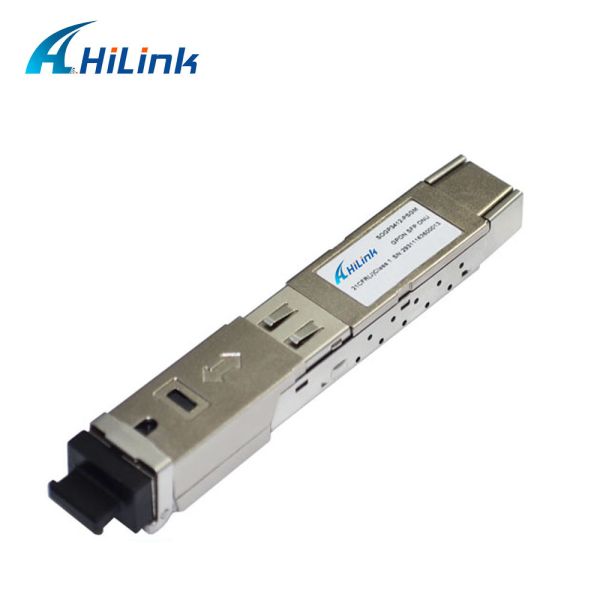

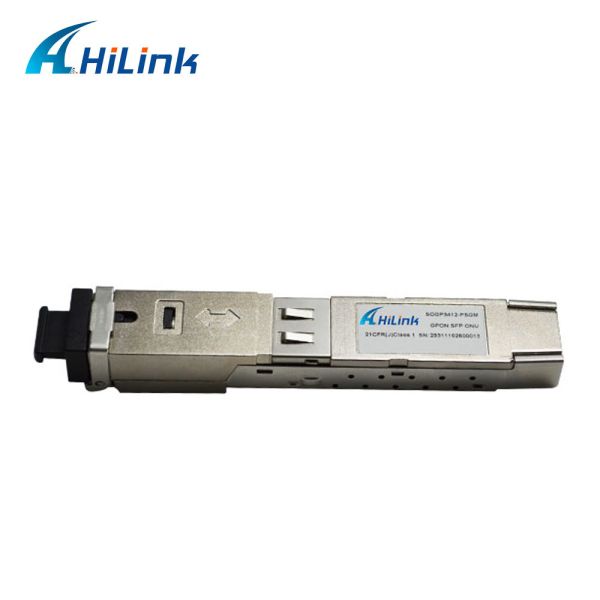

GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
Specifications
Brand Name :
HILINK
Model Number :
HL-GPON-ONU
Certification :
RoHS-6 Compliant
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
100pcs/month
Delivery Time :
5-8workingdays
Packaging Details :
Static bag, Plastic Flat, Retail box, by requires
Products name :
GPON ONU SFP
Wavelength :
Tx 1310nm 1.244G, Rx 1490nm 2.488G
Connetor :
SC/UPC
Distance :
20KM
Temperature Range :
0℃ ~ +70℃/-40~+85℃
Description

GPON ONU SFP Transceiver

Key Features

  • Single fiber bi-directional data links with asymmetric 1244Mbps upstream and 2488Mbps downstream

  • 1310nm DFB burst mode transmitter

  • 1490nm Super-TIA continuous mode receiver


  • LVPECL logic level data input interface


  • 0 to 70°C operating case temperature


  • SFP package with SC/UPC receptacle optical interface


  • CML logic level data output interface


  • LVTTL burst enable control and high level enable


  • LVTTL receiver signal-detected indication

  • TX Burst Mode Detection, TX_SD


  • Voice/Data FTTx ONT/ONU Applications

Standard

  • Compliance with ITU-T G.984.2 G-PON ONU

  • Complies SFP MSA, digital diagnostics SFF-8472

  • RoHS-6 compliance

GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
Our Services
Custom OEM and ODM services available to meet specific application requirements.
Quality Guarantee
All optical transceivers are brand new with new components, never using old or refurbished materials. Each unit undergoes rigorous functional and aging tests. We provide a comprehensive 3-year warranty from the date of shipment.
Product Range
We supply compatible optical transceiver modules including:
  • SFP, GBIC, SFP+
  • XENPAK, X2, XFP
  • BIDI, CWDM, DWDM
  • Special modules compatible with most major brands
GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
Packaging & Shipping
International shipping via premium carriers including DHL, FedEx, EMS, TNT, and UPS with typical delivery in 3-7 business days.
