10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
Specifications
Model Number :
HL-XFP-10G-BXU/D-40
Payment Terms :
T/T,Western Union,MoneyGram,Paypal
Wavelength :
1270/1330nm
Warranty :
3 years
Price :
40~44USD
Distance :
40km
Supply Ability :
2000pcs/month
Data rate :
10G
Certification :
CE FCC Rohs
MOQ :
1pcs
Packaging Details :
Static bag, Plastic Flat, Retail box, by requires
Connector :
LC
Product Name :
XFP+ 10G BIDI 40KM
Brand Name :
HILINK
Place of Origin :
China
Description
10Gb/s XFP Bi-Directional Transceiver 40km Reach 1270/1330nm TX / 1330/1270 nm RX Simplex LC DDM Function RoHS Compliant

This 10Gb/s XFP Bi-Directional Transceiver offers 40km reach with 1270/1330nm TX and 1330/1270 nm RX configuration, featuring Simplex LC connector and Digital Diagnostic Monitor (DDM) function. The product is RoHS compliant and designed for reliable performance in demanding network environments.

Key Features
  • Supports 9.95 to 11.3Gb/s bit rates
  • Simplex LC Connector
  • Hot-pluggable XFP footprint
  • Uncooled 1270nm DFB transmitter, 1330nm PIN photo-detector
  • Uncooled 1330nm DFB transmitter, 1270nm PIN photo-detector
  • Applicable for 40km SMF connection
  • Low power consumption, < 2.0 W
  • Digital Diagnostic Monitor Interface
  • XFP MSA package
  • Operating case temperature: Commercial: 0 to 70°C, Industrial: -40 to 80°C
Product Description

This transceiver is compliant with IEEE803.3ae 10Gbase-Bx standard and supports transmission distances up to 40km on single-mode fiber. The module comprises a transmitter with a 1270 or 1330nm DFB laser transmitter, an integrated 1330 or 1270nm detector preamplifier (IDP) mounted in an optical header, and a limiting post-amplifier IC. The transmitter and receiver are designed to operate separately within wide temperature ranges (0°C to +70°C for commercial, -40°C to 80°C for industrial), offering optimal heat dissipation and excellent electromagnetic shielding for 10 GbE systems applications.

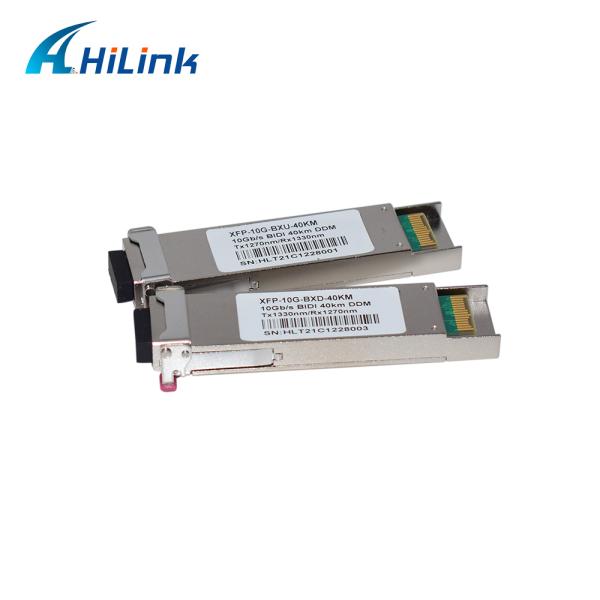

Product Images
10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
Our Services
OEM and ODM Services

OEM/ODM orders are available to meet your specific requirements.

Quality Guarantee

We guarantee that all advertised optical transceivers are brand new with new components and parts, never using old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.

Product Range

We supply various compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with Cisco, Ciena, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei, and more.

Frequently Asked Questions
Do you sell second-hand products?
No. All our products are brand new, and we never use second-hand components.
What payment terms do you accept?
We accept T/T, PayPal, and Western Union.
What shipping methods do you offer?
Our usual shipping methods include DHL, FedEx, TNT, UPS, EMS, etc. Delivery typically takes 3-7 days.
Do your products come with warranty?
Yes, we provide a 3-year warranty for all our products from the date of shipment.
What devices are your products compatible with?
Our products are compatible with Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, and more.
How to place an order?

1. Confirm order details - provide the model and quantity you need.

2. Confirm Proforma Invoice - we arrange your order upon receipt of payment.

3. Shipping confirmation - we ship your goods and provide tracking information.

4. Delivery support - we help track your goods until safe receipt.

Company Information

We offer various kinds of products. If you cannot find the specific item you need, please send us an inquiry. We will follow up promptly.
