400G CFP2 DCO DWDM Transceiver Module Long Distance Transmission Optical Transceiver
400G CFP2 DCO DWDM Transceiver Module Long Distance Transmission Optical Transceiver
400G CFP2 DCO DWDM Transceiver Module Long Distance Transmission Optical Transceiver
400G CFP2 DCO DWDM Transceiver Module Long Distance Transmission Optical Transceiver
400G CFP2 DCO DWDM Transceiver Module Long Distance Transmission Optical Transceiver
400G CFP2 DCO DWDM Transceiver Module Long Distance Transmission Optical Transceiver
Specifications
Model Number :
HL-400G-CFP2
MOQ :
1 piece
Delivery Time :
Confirmation
Temperature :
0℃ ~ +70℃
Brand Name :
Hilink
Packaging Details :
Static bag, Plastic Flat, Retail box, by requires
Payment Terms :
T/T,L/C
Connetor :
Duplex LC
Wavelength :
C‑band tunable DWDM dense‑wavelength
Price :
Negotiable price
Data rate :
400G
Supply Ability :
100pcs/month
Products name :
400G CFP2 DCO
Certification :
CE FCC Rohs
Distance :
Long distance
Place of Origin :
Guangdong, China
Description
400G CFP2 DCO DWDM Transceiver Module
Long Distance Transmission Optical Transceiver

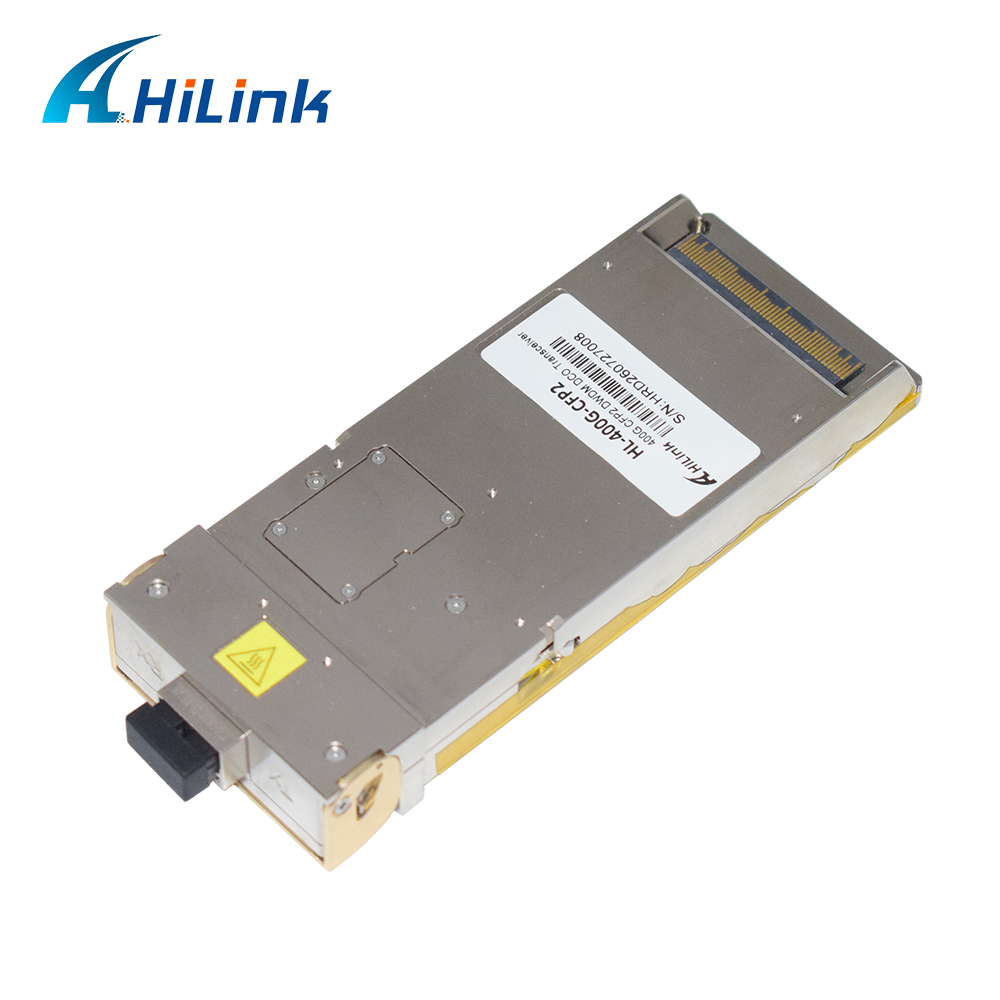

This high-performance optical transceiver module features CFP2-DCO form factor with golden-finger electrical interface for compatible CFP2 switch cages. Equipped with Duplex LC fiber connectors for standard single-mode fiber patch cords, it incorporates Digital Coherent Optics (DCO) architecture with C-band tunable ITLA laser for DWDM dense-wavelength systems and long-distance transmission applications.
Product Features
  • 4×100Gbps PAM4 coherent parallel lanes
  • CFP2-DCO golden-finger electrical interface
  • Integrated ITLA tunable laser and coherent receivers
  • DWDM dense-wavelength operation with C-band tunable channels
  • Digital Coherent Optics (DCO) architecture
  • Maximum power consumption: 18 W
  • LC duplex connector compatibility
  • Long-reach transmission over single-mode fiber
  • Operating case temperature: 0°C to 70°C
  • Single 3.3 V power supply
  • Compliant with CFP2 MSA specification
  • Compliant to relevant OTU & Ethernet standards
Applications
  • 400G Ethernet networks
  • Data center network infrastructure
  • Backbone transmission systems
  • Metro WDM applications
Technical Specifications
Part No. Specifications Application
HL-400G-CFP2 Package: CFP2-DCO
Data Rate: 400G
Laser: ITLA Tunable C-band DWDM
Optical Power: -2.8~4 dBm
Detector: Coherent Receiver
Sensitivity: Max (-6.6, -8+ SECQ)
Temperature: 0~70℃
Reach: Long distance
Other: DCO, DDM 		400G Ethernet
