Industrial Grade 25G BIDI 1270/1310nm 40KM APD+TIA Optical Module Single-Fiber Simplex LC DOM
Industrial Grade 25G BIDI 1270/1310nm 40KM APD+TIA Optical Module Single-Fiber Simplex LC DOM
Industrial Grade 25G BIDI 1270/1310nm 40KM APD+TIA Optical Module Single-Fiber Simplex LC DOM
Industrial Grade 25G BIDI 1270/1310nm 40KM APD+TIA Optical Module Single-Fiber Simplex LC DOM
Specifications
Supply Ability :
3000 pairs per Week
Data transfer rate :
25Gbase
Model Number :
HL-SFP28-BXDU-40
MOQ :
1 Pair
Delivery Time :
1-4 days
CE FCC Rohs :
Support
Payment Terms :
L/C,T/T,Paypal
Max Distance :
40km
Warranty :
3 Years
Price :
USD90
Wavelength 1 :
1270nm/1310nm 1310nm/1270nm
Connector :
LC SIimplex
Certification :
CE FCC Rohs
Packaging Details :
Carton box, Retail box, Or by required
Place of Origin :
Guangdong, China
Brand Name :
HILINK
Description
Industrial Grade 25G BIDI 1270/1310nm 40KM APD+TIA Optical Module
Single-Fiber Simplex LC DOM Transceiver
The HL-SFP28-25G-UD-40KM Transceiver is designed for 40km reach service from 24.33Gb/s to 25.78Gb/s bi-directional single mode high-speed communications equipment where exceptional performance, reliability, and cost-effectiveness are essential. This low-power module operates on a 3.3V DC power supply and is available in industrial temperature ranges. Compliant with SFP28 MSA, SFF-8431, and SFF-8432 standards.
Featuring a DML laser transmitter and APD/TIA receiver, this optical assembly delivers low jitter and low bit error rate performance. Internal clock and data recovery (CDR) units on both transmitter and receiver chains ensure jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible, and the device meets Class I laser safety requirements.
Key Features
  • Operating data rate up to 25.78Gbps
  • Up to 40km transmission distance
  • High sensitivity APD photodiode and TIA
  • Rate Adaptation capability
  • LC single connector interface
  • Hot pluggable 20-pin connector
  • Low power consumption <1.5W
  • Single +3.3V±5% power supply
  • Compliant with SFF-8472 standard
  • Fully RoHS Compliant
  • Operating temperature ranges:
    • Commercial: 0°C to +70°C
    • Industrial: -40°C to +85°C
Applications
  • 25GE BASE-LR Ethernet
  • CPRI Option 10/eCPRI
Order Information
Part Number Product Description
HL-SFP28-BXU-L40 25G SFP28 40km BIDI transceiver 1270 Tx/1310 Rx, C-TEMP
HL-SFP28-BXD-L40 25G SFP28 40km BIDI transceiver 1310 Tx/1270 Rx, C-TEMP
HL-SFP28-BXU-L40I 25G SFP28 40km BIDI transceiver 1270 Tx/1310 Rx, I-TEMP
HL-SFP28-BXD-L40I 25G SFP28 40km BIDI transceiver 1310 Tx/1270 Rx, I-TEMP

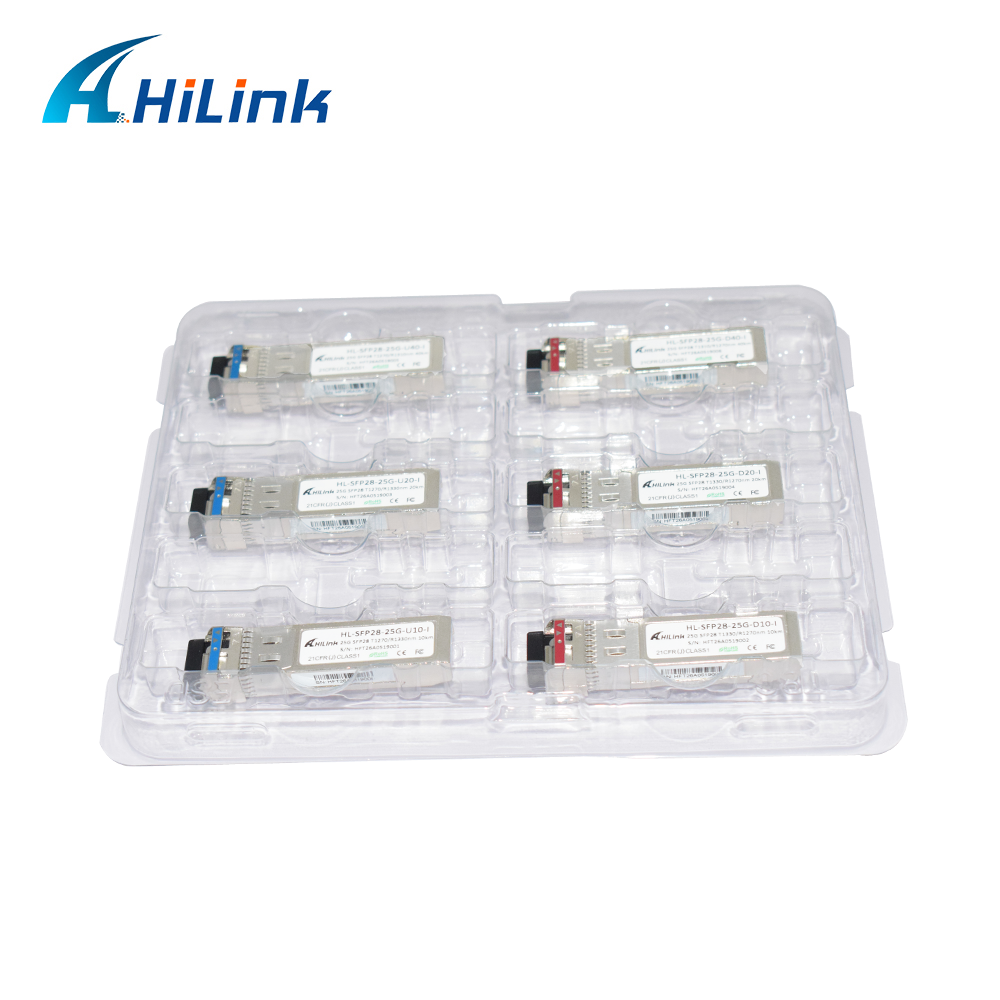

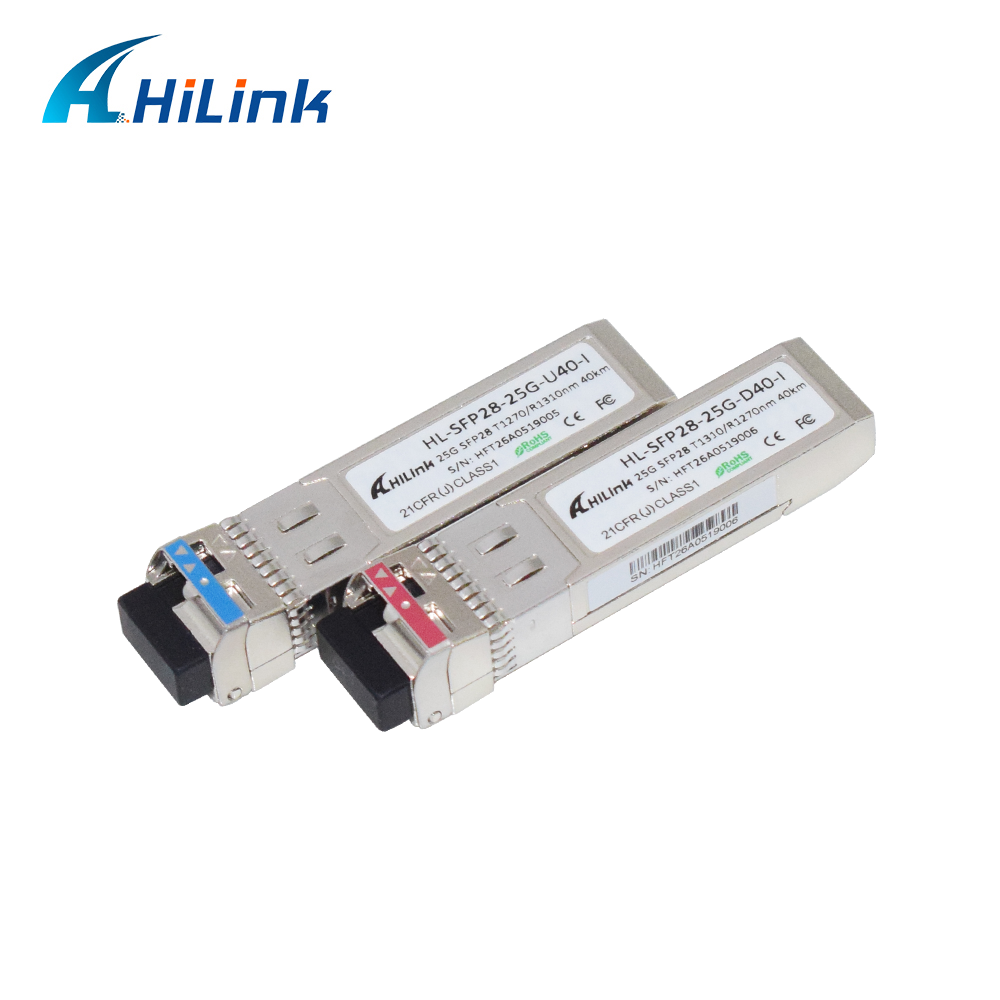

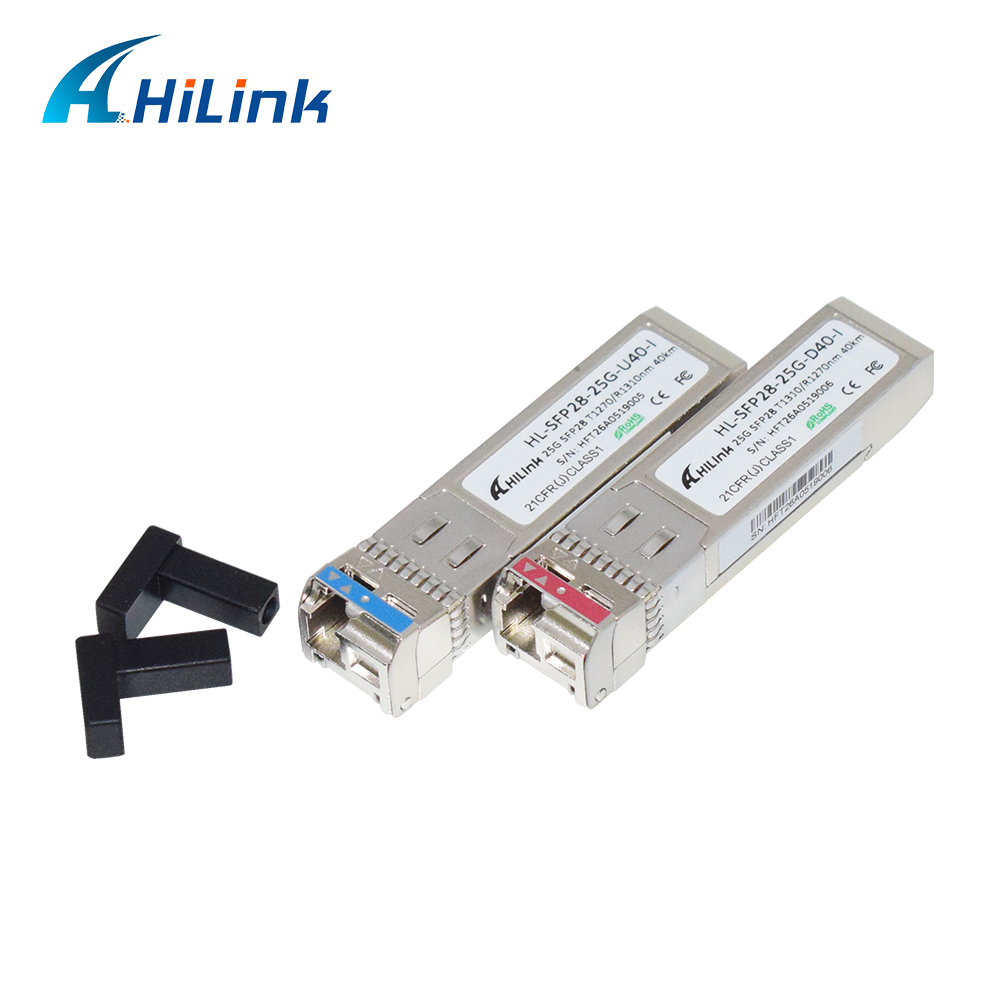

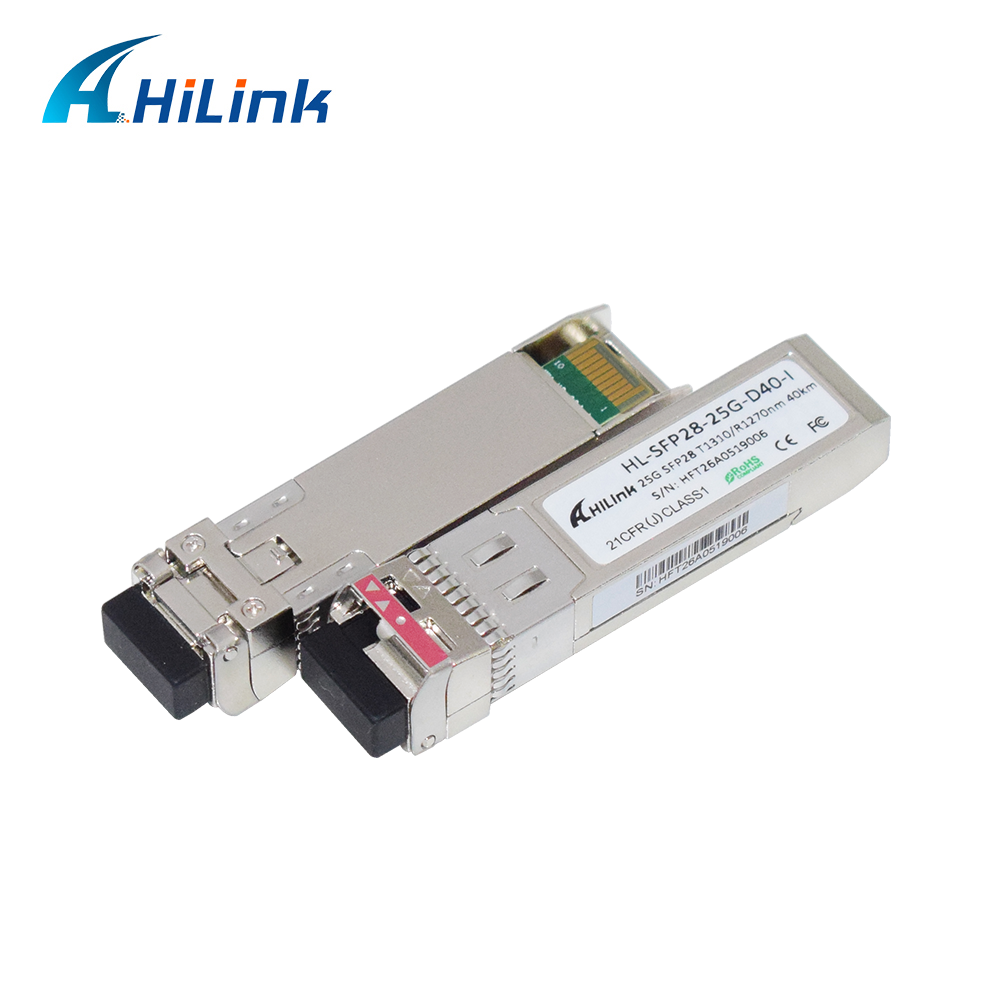

Product Images
Industrial Grade 25G BIDI 1270/1310nm 40KM APD+TIA Optical Module Single-Fiber Simplex LC DOM Industrial Grade 25G BIDI 1270/1310nm 40KM APD+TIA Optical Module Single-Fiber Simplex LC DOM

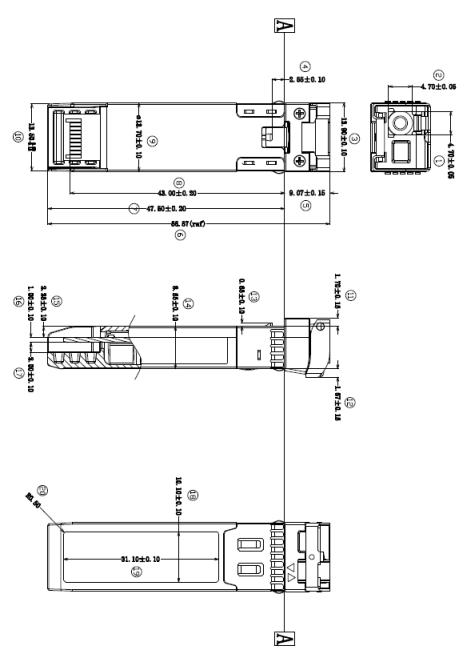

Mechanical Dimensions
Industrial Grade 25G BIDI 1270/1310nm 40KM APD+TIA Optical Module Single-Fiber Simplex LC DOM
100% compatibility with Cisco, Huawei, MikroTik, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Enterasys, Netgear, Juniper, Ruijie, Zyxel, and more.
Frequently Asked Questions
  • Do you sell second-hand products?
    No. All our products are brand new, we never use second-hand components.
  • What payment terms do you accept?
    T/T, PayPal are acceptable.
  • What are the shipping methods you offer?
    Our usual shipping methods include DHL, FedEx, TNT, UPS, EMS etc. Delivery typically takes 3-7 days.
  • Do your products come with warranty?
    Yes, we provide 3 years warranty for all our products from the date of shipment.
  • How to place an order?
    1. Order details confirmed - please provide the model and quantity you need.
    2. Proforma Invoice confirmed - order processing begins upon receipt of payment.
    3. Confirm and ship the goods - tracking number provided promptly.
    4. We assist with tracking until safe delivery of your goods.
As we offer various products, if you cannot find the specific item you need, please send us an inquiry. We will respond promptly.
