Specifications
Brand Name :
HILINK
Model Number :
HL-QSFP-40G-SR4-150
Certification :
CE FCC Rohs
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union.Paypal
Supply Ability :
100/PCS/MONTH
Packaging Details :
Static bag, Plastic Flat, Retail box, by requires
Keyword :
40G SR4 150m 850nm
Data Rate :
40G
Fiber type :
MMF
Distance :
150M
Wavelength :
850nm
Fiber connector :
LC
Description

40G-SR4-150M 40GBASE-SR4 QSFP+ 850nm 150m DDM DOM MTP MPO MMF SFP Transceiver

General:

HL-QSFP40G-SR4 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR,12G/10G/8G/4G/2G fiber channel, PCIe and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 11.3Gbps operation for an aggregate data rate of 45.2Gbps 150m using OM3 fiber. These modules are designed to operate over multimode fiber systems using 850nmVCSEL laser array. An optical fiber ribbon cable with an MPO/MTP connector can be plugged into the QSFP module receptacle. QSFP+ SR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.

Features:

Four-channel full-duplex transceiver modules

Transmission data rate up to 11.3Gbit/s per channel

Up to 150m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF

Low power consumption <1.5W

Operating case temperature: 0 to 70℃

3.3V power supply voltage

Hot Pluggable QSFP form factor

MPO connector receptacle

Built-in digital diagnostic function


Applications:
Proprietary High Speed Interconnections
Infiniband QDR and DDR interconnects
Data Center

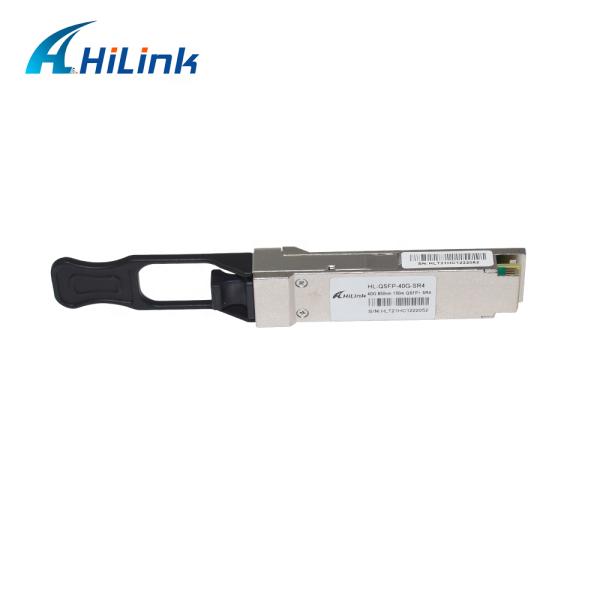

Product Picture Show:
MTP MPO MMF SFP Optical Transceiver DDM DOM QSFP+ 850nm 150mMTP MPO MMF SFP Optical Transceiver DDM DOM QSFP+ 850nm 150mMTP MPO MMF SFP Optical Transceiver DDM DOM QSFP+ 850nm 150mMTP MPO MMF SFP Optical Transceiver DDM DOM QSFP+ 850nm 150m

Optical Interface Lanes and Assignment

The optical interface port is a male MPO connector .The four fiber positions on the left as shown in Figure 2, with the key up, are used for the optical transmit signals (Channel 1 through4). The fiber positions on the right are used for the optical receive signals (Channel 4 through 1). The central four fibers are physically present.

MTP MPO MMF SFP Optical Transceiver DDM DOM QSFP+ 850nm 150m

Company Informations:

Shenzhen Hilink Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.

RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.

Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.

We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as switch and routers, for further detailed test and procedure.

We also have related optical products and good solutions to satisfy customers' requirements.

New and old customers are warmly welcomed to visit our fctory and office for further cooperation.
Hope to build up a business relation with you.
MTP MPO MMF SFP Optical Transceiver DDM DOM QSFP+ 850nm 150m

FAQ:

Q:Do you sell second-hand products?

A:No.All our products are brand new,we never use secont-hand components.

Q:What payment terms do you accept?

A:T/T,Paypal,Western Union are acceptable.

Q:What are the shipping ways can you offer?

A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

Q:Do your products come with warranty?

A:Yes,We provide 3 years warranty for all our products from the date of shipment.

Q:How to place an order?

A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.

As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
