MMF SFP Transceiver Module QSFPDD 400G SR8 OM3 70M OM4 100M
MMF SFP Transceiver Module QSFPDD 400G SR8 OM3 70M OM4 100M
MMF SFP Transceiver Module QSFPDD 400G SR8 OM3 70M OM4 100M
MMF SFP Transceiver Module QSFPDD 400G SR8 OM3 70M OM4 100M
MMF SFP Transceiver Module QSFPDD 400G SR8 OM3 70M OM4 100M
MMF SFP Transceiver Module QSFPDD 400G SR8 OM3 70M OM4 100M
Specifications
Brand Name :
HILINK
Model Number :
HL-QSFPDD-400G-SR8
Certification :
CE FCC Rohs
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union.Paypal
Supply Ability :
100/PCS/MONTH
Packaging Details :
Static bag, Plastic Flat, Retail box, by requires
Data Rate :
400GBASE Ethernet
Distance :
OM3 70M OM4 100M
Wavelength :
850nm
Connector :
MPO Connector
package :
QSFPDD
CE CC RoHS :
Support
Description
QSFPDD 8*50Gb/s 400GBASE 400Gb/s PAM4 SR8 100 Meter 850nm OM3 70M MMF SFP Transceiver
GENERAL
This product is a parallel 400Gb/s Quad Small Form Factor Pluggable--double density (QSFP-DD)optical module. It provides increased port density and total system cost savings. The QSFP-DD full-duplex optical module offers 8 independent transmit and receive channels, each capable of 53.125Gb/s operation for an aggregate data rate of 400Gb/s on 100 meters of OM3 multi-mode fiber.
An optical fiber cable with an MTP/MPO-16 connector can be plugged into the QSFP-DD SR8 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an QSFP-DD MSA-compliant edge type connector.
The central wavelengths of all the 8 parallel lanes are 850nm. It contains an optical MPO-16 connector for the optical interface and a 60-pin connector for the electrical interface. Host FEC is required to support up to 70m OM3 multi-mode fiber transmission.
The product is designed with form factor, optical/electrical connection and digital diagnostic interfaceaccording to the QSFP-DD Multi-Source Agreement (MSA) Type 2. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
PRODUCT FEATURES

QSFP-DD MSA compliant

8 parallel lanes on 850nm center wavelength

Compliant to IEEE 802.3bs Specification

Up to 100m transmission on multi-mode fiber

(MMF) OM3 with FEC

Operating case temperature: 0 to 70℃

8x53.125Gb/s electrical interface (400GAUI-8)

Data Rate 53.125Gbps (PAM4) per channel.

Maximum power consumption 12W

MPO-16 connector

APPLICATIONS
400GBASE-SR8 Ethernet Links
Telecom networking
Data centers Interconnect
Enterprise networking
RELATED PRODUCT
QSFP28-100G-SR4 100GBASE-SR4 850nm 100M LC
QSFP28-100G-LR4 100GBASE-LR4 1310nm 10KM LC
QSFP28-100G-ER4 100GBASE-ER 1310nm 40KM LC
QSFP28-100G-ZR4 100GBASE-ZR 1310nm 80KM LC

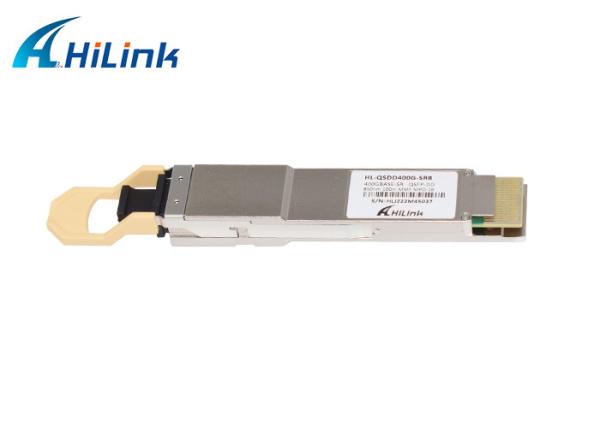

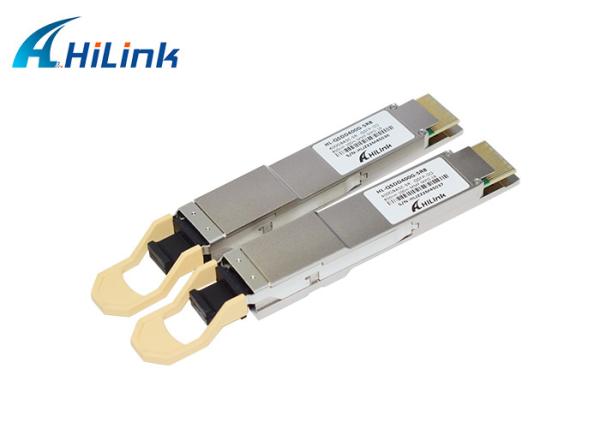

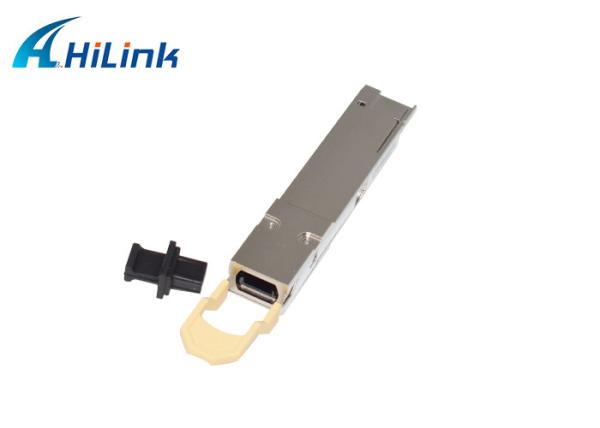

PRODUCT PICTURE SHOW
