0.5 Meter 30AWG Direct Attach Copper Cable , Passive Copper Cable SFP-H10GB-CU50CM
0.5 Meter 30AWG Direct Attach Copper Cable , Passive Copper Cable SFP-H10GB-CU50CM
Specifications
Brand Name :
HILINK
Model Number :
SFP-H10GB-CU50CM
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T, Western Union
Delivery Time :
1-3 Days
Packaging Details :
Poly bag
Connector Type :
SFP+ to SFP+
Max Data Rate :
10Gbps
Cable Type :
Passive Copper Cable
Wire AWG :
30AWG
Cable Length :
50cm
Jacket Material :
PVC
Temperature :
0 to 70°C
HTS-Harmonized Code :
8544700000
Price :
Negotiable
Description

0.5 Meter 30AWG Direct Attach Copper Cable , Passive Copper Cable SFP-H10GB-CU50CM

Product Description

The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.

Features

Support for multi-gigabit data rates up to 10.5Gbps
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20PIN footprint
I/O Connector designed for high speed differential signal applications
Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
Compatible to SFP+ MSA
Temperature Range: 0~ 70 Centigrade
RoHS Compatible

Applications

High capacity I/O in Storage Area Networks, Network Attached Storage, and Storage Servers
Switched fabric I/O such as ultra high bandwidth switches and routers
Data center cabling infrastructure
High density connections between networking equipment

Recommended Operating Conditions

Parameter Symbol Min Typical Max Unit
Storage Ambient Temperature -40 +85 Centigrade
Operating Case Temperature Tc 0 +70 Centigrade

Systems

Performance Media
10.5 Gpbs line speed, full duplex

Bit error rate: better than 10E-12

 Hot-pluggable, industry-standard Small Form-Factor

Pluggable (SFP+) copper cable, available as 0.2m, 0.5m, 1m, 3m, 5m or 10m.

About order

Part No. Product Description
SFP+-10G-CU 10G SFP+ Direct Attach Passive Copper Cables 0.2m,0.5m,1m,3m,5m or 10m Reach

Item Photo

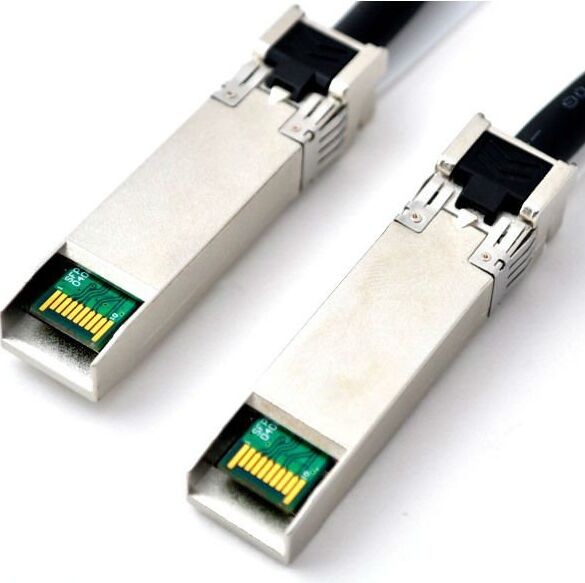

0.5 Meter 30AWG Direct Attach Copper Cable , Passive Copper Cable SFP-H10GB-CU50CM
