Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND-S820SW-2*12
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Packaging Details :
packing can be done by customer's requested, usually used in carton
power port :
2*DC12V
size :
69mm×50mm×24mm
Wavelength :
1310nm/1550nm
transmission rate :
10/100M bps
Storage temperature :
-40℃～80℃
Power input :
AC 100-240V
Description

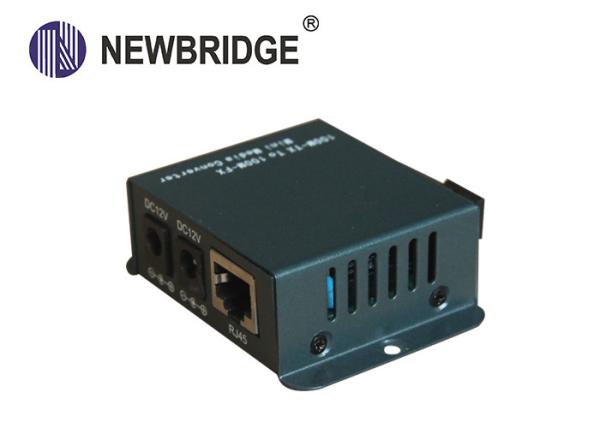

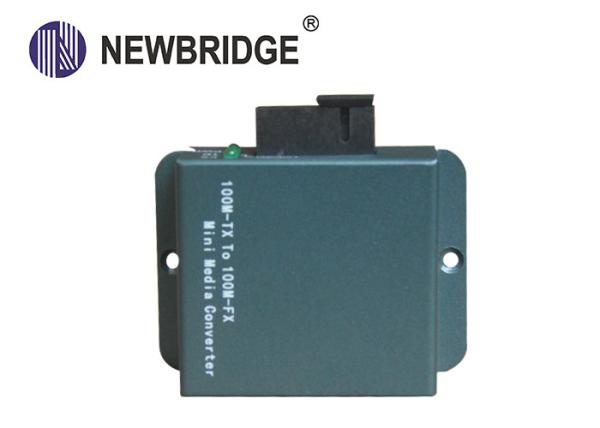

10/100M mini Media Converter with dual power 12V

Model ND-S820SW-2*12
Description One light one transceiver,single fiber ,external power supply
Image 2 * DC12V 10 100M Media Converter , Wavelength 1550nm Single Fiber Media Converter
transmission rate 10/100Mbps
wave length 1550nm/1310nm
transmission distance 0～20km
the fifth twisted-pair transmit distance 0～100m
electrical interface 1×RJ45
fiber connector 1×SC port
power port 2×DC12V
Flow control approach Dynamic data transmission, Full/half duplex
MTBF Over 100,000 hours
Power supply External power supply
Power input AC100 ～ 240V to DC12V input
Power consumption 2.5 w
Storage temperature -40℃～80℃
Case meterial Iron shell
Demension 69mm×50mm×24mm
Weight 0.4GK /pair

Panel Descriptions :

2 * DC12V 10 100M Media Converter , Wavelength 1550nm Single Fiber Media Converter
